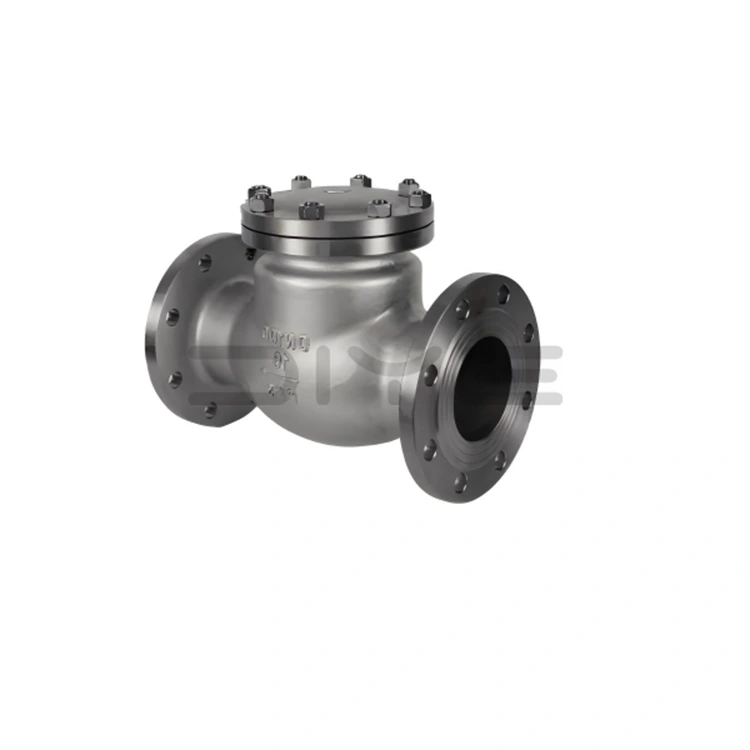

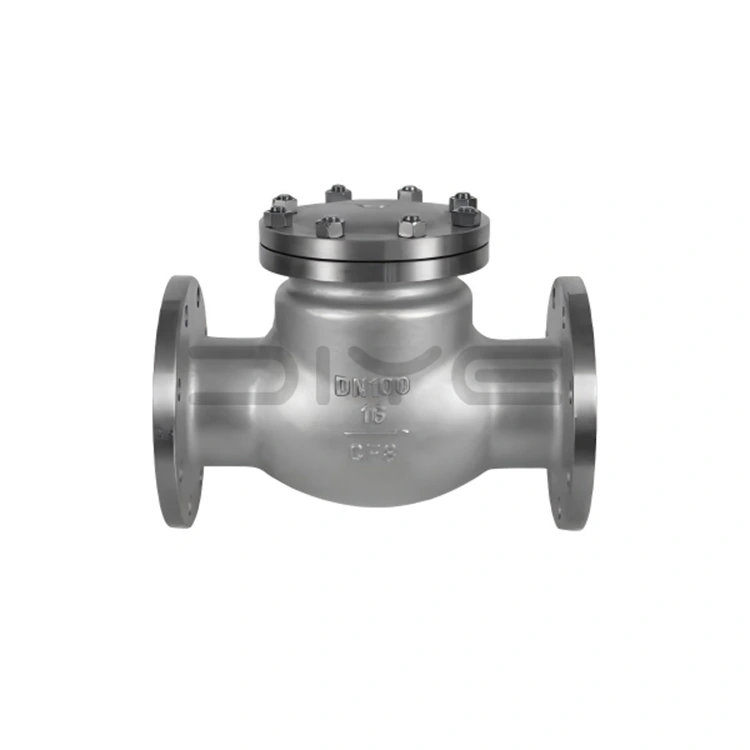

DIN Swing Flanged Check Valves

DIYE DIN Swing Flanged Check Valves are precision-designed automatic valves that fully comply with core German standards, including DIN 3356, DIN 3202, and DIN EN 1092-1. The valves operate autonomously based on the pressure of the medium, requiring no external actuators. They provide a reliable, maintenance-free mechanism that prevents catastrophic consequences from backflow, protecting critical pipeline infrastructure.

Working Principle and Main Functions

1. Automatic Operation

The DIN Swing Flanged Check Valves valve disc opens freely under the pressure of the forward-flowing medium; when the system stops, depressurizes, or experiences a backflow tendency, the valve disc closes instantly under its own weight and the backflow back pressure.

2. Core Protection Functions

- Backflow Prevention: Forms a tight seal, preventing reverse flow of the medium.

- Water Hammer Mitigation: Absorbs hydraulic shock, significantly reducing pressure on pipelines and equipment.

- System Protection: Protects pumps, compressors, pressure vessels, and heat exchangers from damage caused by reverse pressure shocks.

Design Features and Technical Parameters

1 Connection Method and Standards

Uses DIN standard flange connections, simplifying installation and maintenance; structural length strictly adheres to DIN 3202 standard.

2 Wide Applicability and Versatility

DIN Swing Flanged Check Valves cover the entire range of diameters from DN15 to DN1000; pressure ratings include PN10, PN16, PN25, PN40, PN63, and PN100, meeting the diverse needs of low-pressure piping networks to high-pressure industrial process systems.

3 Superior Structure

Carefully designed flow channels minimize pressure loss; high-precision sealing surfaces ensure a tight and reliable seal even under pressure fluctuations and diverse media conditions.

4. Media Compatibility

Suitable for water, steam, petroleum products, and various acidic, alkaline, and corrosive media.

Application Scenarios and Market Coverage

Our DIN Swing Flanged Check Valves are the preferred product for German standard piping systems in Europe and globally, ensuring stable unidirectional flow control in several demanding industries, including:

1. Petrochemical and Chemical Processing Industry

2. Power Generation Industry (Thermal and Nuclear Power)

3. Metallurgy and Mining Industry

4. Municipal Water Supply and Drainage Industry

5. HVAC, Gas, and Marine Engineering

6. International European Standard Export Engineering Projects

Manufacturing and Quality Assurance

1. Professional Qualifications and Experience: Leveraging deep industry expertise, DIYE VALVE achieves mass production of all DIN check valve specifications, ensuring stable and reliable quality.

2. Compliance with Authoritative Standards: Every valve uses German standard materials, precision forging processes, and undergoes rigorous pressure testing.

3.Integrity Guarantee: We provide complete Material Test Reports (MTR) and factory pressure test data for every order, ensuring full traceability and compliance throughout the entire process.

4.Customized Solutions: In addition to standard products, we professionally provide customized valve services using special materials and non-standard sizes, offering one-stop supply solutions for complex European and international engineering projects.

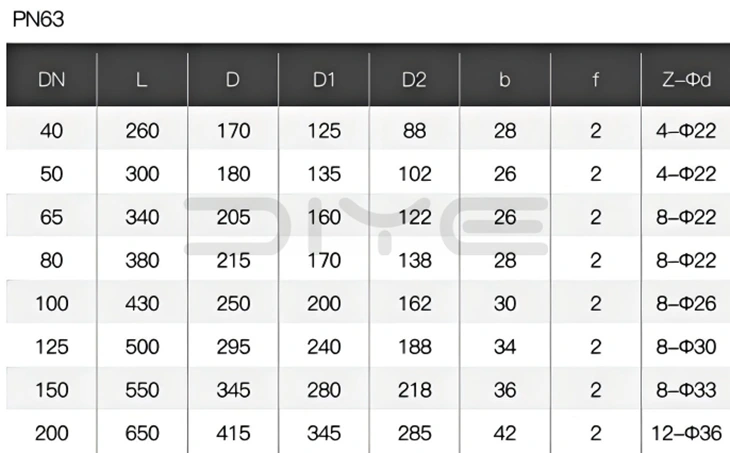

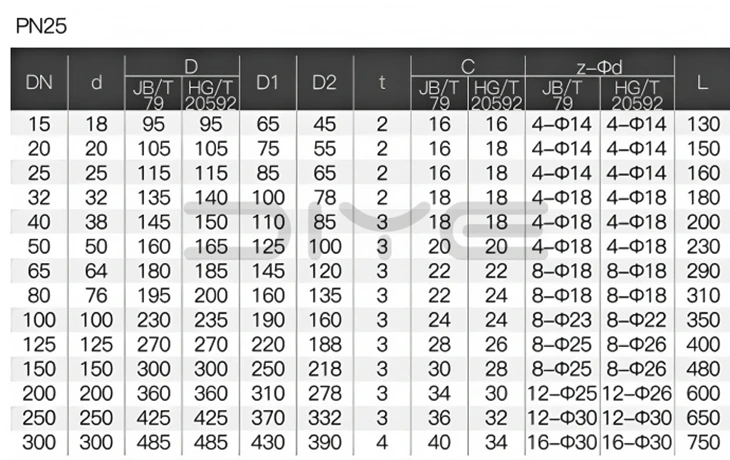

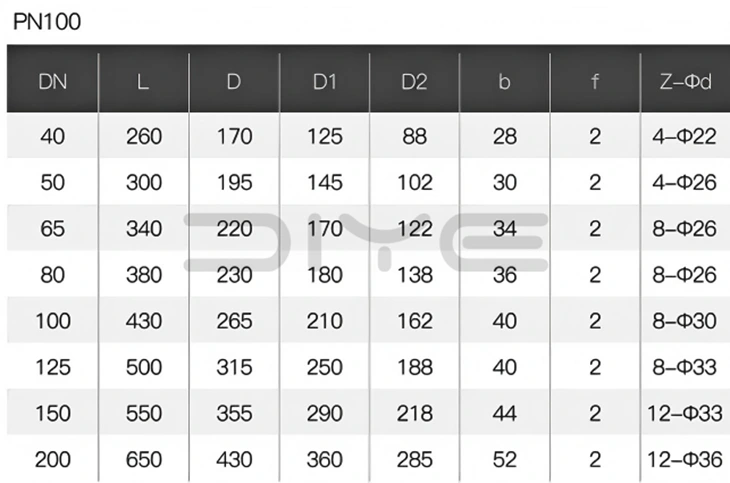

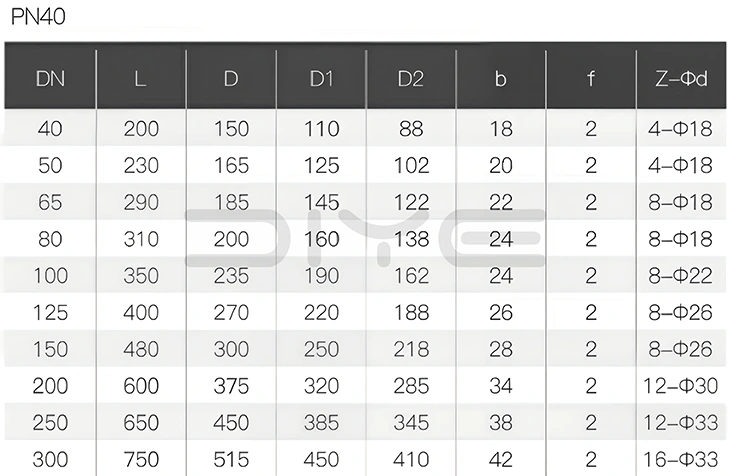

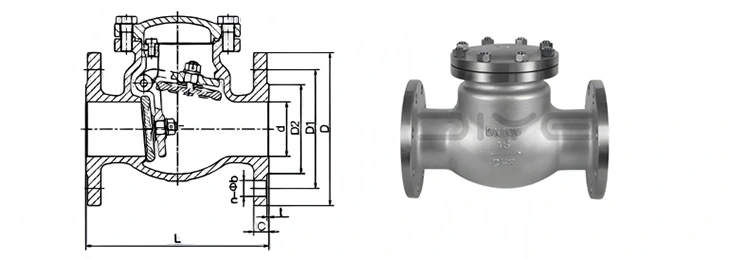

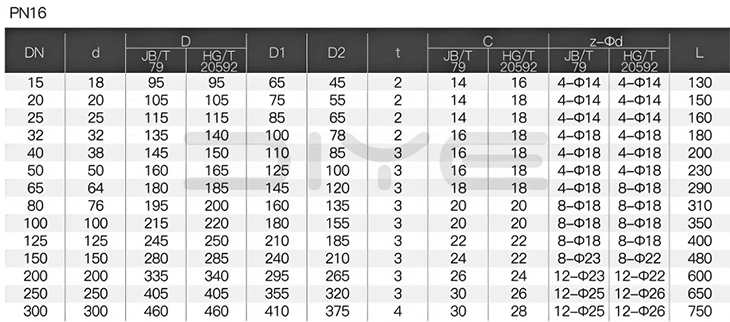

Technical Drawings

FAQ

Q：What core standards do DIN Swing Flanged Check Valves comply with?

A： They mainly follow DIN 3205, DIN 3206, DIN 3207, DIN 3351, and DIN 3352. For flange connection, they implement DIN EN 1090 / DIN EN 1091 / DIN EN 1092, ensuring perfect matching and interchangeability with German standard pipelines, flanges, and gaskets.

Q：What must be noted when installing a Flanged Check Valve?

A： Confirm the flow direction arrow on the valve body and install strictly in accordance with the medium flow direction. Installing it backwards will result in complete blockage of flow and loss of the check function.

Q：Why is there always abnormal noise and vibration in the Flanged Check Valve?

A： This is mostly caused by being installed close to the elbow, excessive flow velocity, or impact of the valve disc on the stop. It is recommended to increase the straight pipe section, switch to a slow closing structure, or adjust the pipeline flow velocity.

Q：Can you provide a full set of German standard DIN check valves?

A： As a source manufacturer, Diye manufactures DIN Swing Flanged Check Valves in all sizes. We strictly perform machining, pressure testing, and marking in accordance with German standards. We can provide a full set of material reports and factory pressure test data, and support customization of special calibers and special materials.
