Sanitary Stainless Steel Elbow

DIYE VALVE is a professional manufacturer of sanitary stainless steel elbows in China, possessing a standard factory equipped with advanced production and testing equipment. We focus on the research, development, production, and sales of high-quality sanitary piping fittings. With years of industry experience and professional technical strength, we have established a comprehensive quality control system, becoming a trusted supplier for numerous domestic and international companies, providing reliable sanitary piping solutions for industries with stringent hygiene requirements.

Product Categories and Core Advantages

1. 45° Sanitary Stainless Steel Elbow

The 45° elbow features a gentle, small-angle design, significantly reducing fluid resistance and turbulence loss, preventing media buildup, and is suitable for long-distance pipeline optimization and precise transition scenarios, ensuring the stability and cleanliness of fluid transmission.

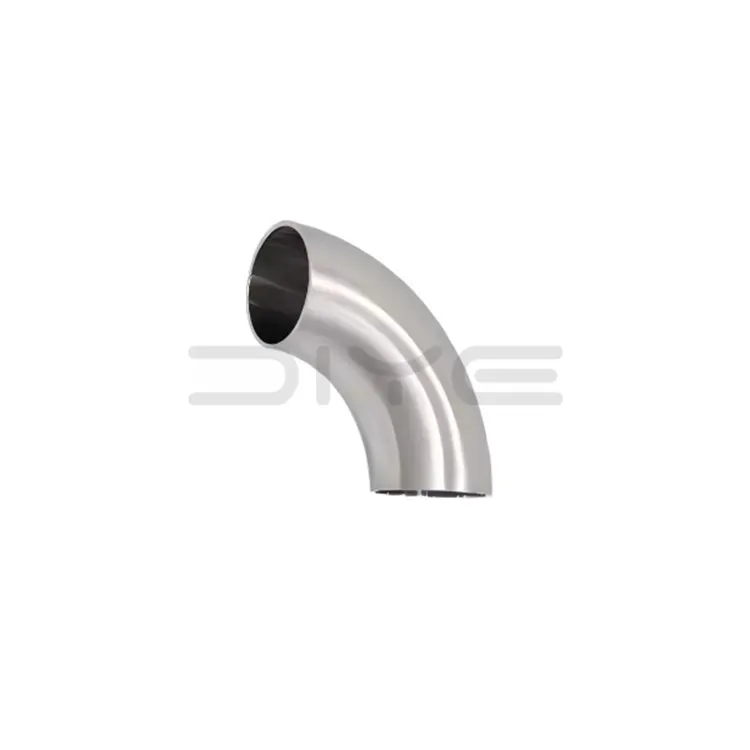

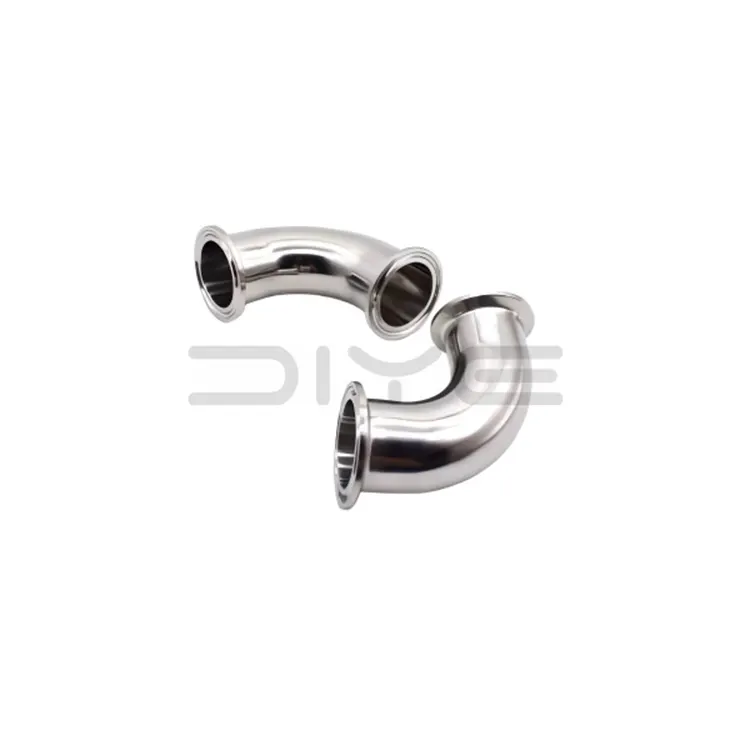

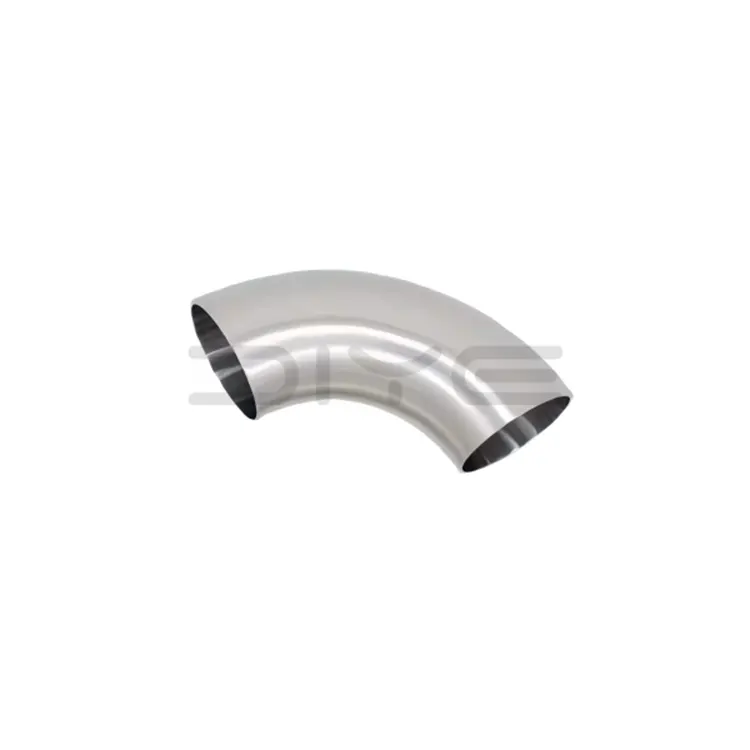

2. 90° Sanitary Stainless Steel Elbow

The 90° elbow is specifically designed for vertical turns and compact space layouts, enabling quick connection between equipment and tanks, valves and pipelines, solving the problem of limited pipeline layout space in industrial production. It has no internal dead corners and allows for thorough cleaning without residue.

Product Quality and Manufacturing Standards

1. Premium Raw Materials

The Sanitary Stainless Steel Elbow uses 304/316L food-grade and pharmaceutical-grade stainless steel, which is non-toxic, harmless, corrosion-resistant, and high-temperature resistant, and does not contaminate the transmitted media. All raw materials undergo rigorous spectral testing to prevent the precipitation of inferior base materials and impurities.

2. Superior Manufacturing Process

Sanitary Stainless Steel Elbows utilize seamless push-forming or CNC bending processes, resulting in elbows with uniform wall thickness, free of cracks and pinholes. The smooth, rounded transition at the bend eliminates potential bacterial growth hotspots, showcasing industry-leading expertise.

3. Rigorous Surface Treatment

The elbow surface undergoes multiple fine polishing processes. The standard model has an inner wall roughness ≤0.8μm Ra, while high-cleanliness pharmaceutical-grade options offer customizable mirror polishing or electrolytic polishing (EP) to achieve ≤0.4μm Ra. This ensures easy cleaning, corrosion resistance, and a balance between practicality and hygiene compliance.

Application Scenarios and Standard Compliance

As a core directional accessory for clean fluid pipelines, Sanitary Stainless Steel Elbows are widely used in industries with stringent hygiene requirements, such as food, dairy, pharmaceuticals, beverages, cosmetics, and water treatment. They solve problems related to pipeline bends, layout constraints, and poor fluid flow, preventing media accumulation, bacterial growth, and cross-contamination.

All Sanitary Stainless Steel Elbows are fully compatible with CIP (Cleaning in Line) and SIP (Sterilization in Line) processes, strictly complying with international hygiene standards such as GMP, 3A, DIN, and SMS. They are widely used in the global market and have earned the trust of customers worldwide.

Supplier Commitment

As a professional manufacturer and reliable supplier in China, DIYE VALVE adheres to the business philosophy of "Quality First, Customer Supreme," providing customers with high-quality products and comprehensive after-sales service. The factory has a professional production and R&D team, capable of providing standard products and customized services to meet the diverse needs of different industries, helping to become a leading brand in the global sanitary pipe fittings industry.

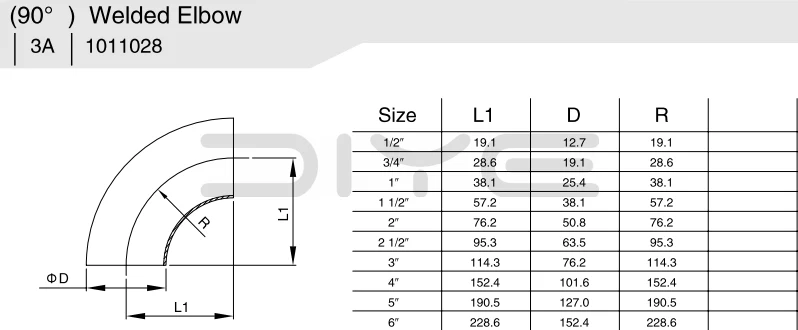

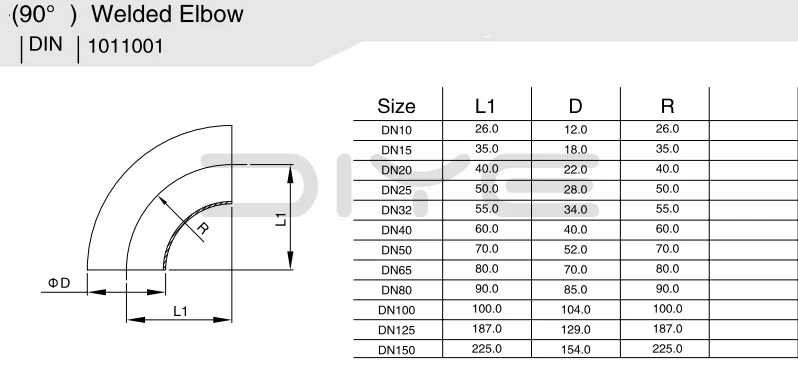

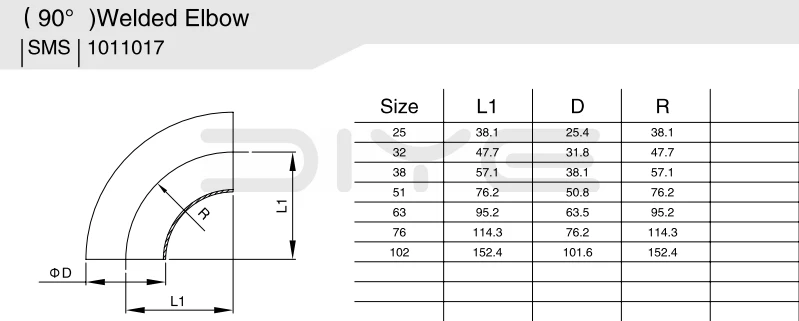

Technical Drawings

FAQs

Q: What types of sanitary elbows are available? What are their respective applications?

A: Sanitary elbows are classified into two types: 45° elbows and 90° elbows. The 45° elbow is designed for gentle small-angle direction changes, which reduces fluid resistance and turbulence, making it widely used for long-distance pipeline optimization. The 90° elbow is intended for vertical direction changes and compact space layouts, suitable for quick connection between equipment, tanks and valves.

Q: What are the common materials? How to choose between them?

A: The mainstream materials are food and pharmaceutical grade 304 and 316L stainless steel. 304 stainless steel is cost-effective with decent corrosion resistance, ideal for conventional clean working conditions such as food, beverage and ordinary water treatment. 316L stainless steel features superior corrosion resistance (especially against chloride ions), perfect for high-standard scenarios like pharmaceuticals, bioengineering and cosmetics.

Q: Can non-standard specifications of sanitary elbows be customized?

A: Customization of non-standard angles, non-standard diameters, special lengths and eccentric elbows is supported. OEM/ODM processing is available according to the specific requirements of engineering projects.
