Stainless Steel Sanitary Diaphragm Valve

DIYE VALVE Stainless Steel Sanitary Diaphragm Valve is specifically designed for high-risk hygiene scenarios such as food and beverage and pharmaceutical industries. As a professional manufacturer with its own factory in China, DIYE VALVE integrates R&D, production, and sales, strictly controlling quality and solving the pain points of cross-contamination and difficult cleaning of traditional valves, providing reliable fluid control solutions for global customers.

Core Product Features and Advantages

1. Simple and Efficient Working Mechanism

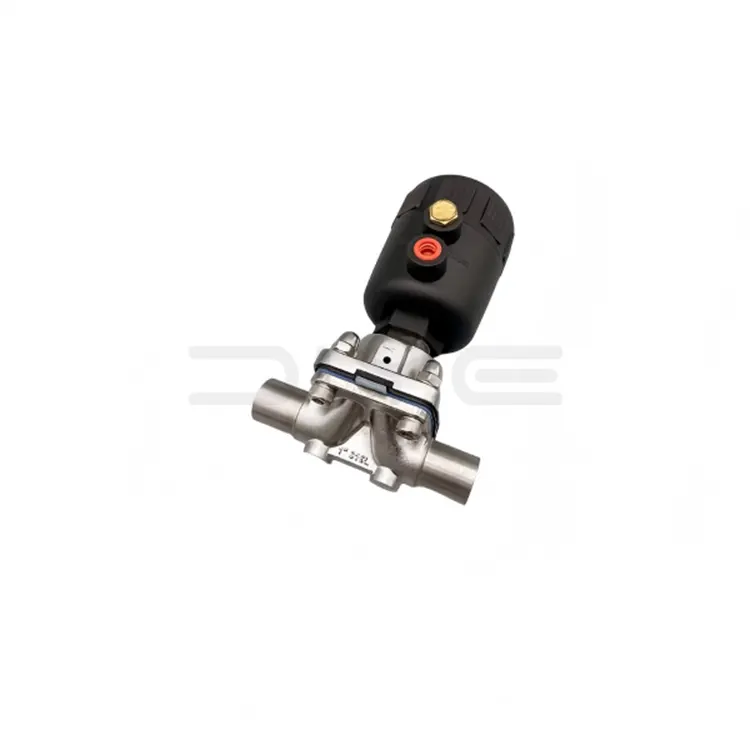

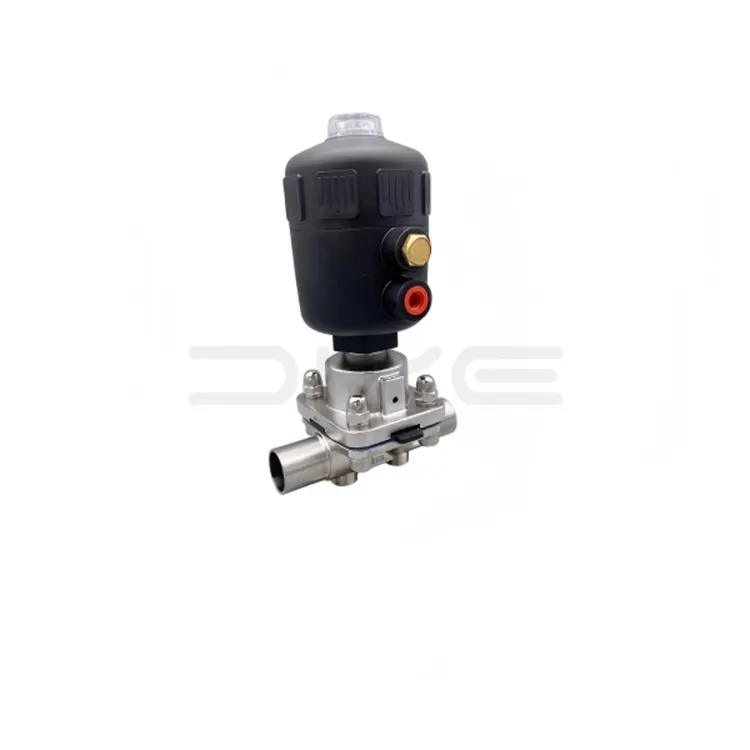

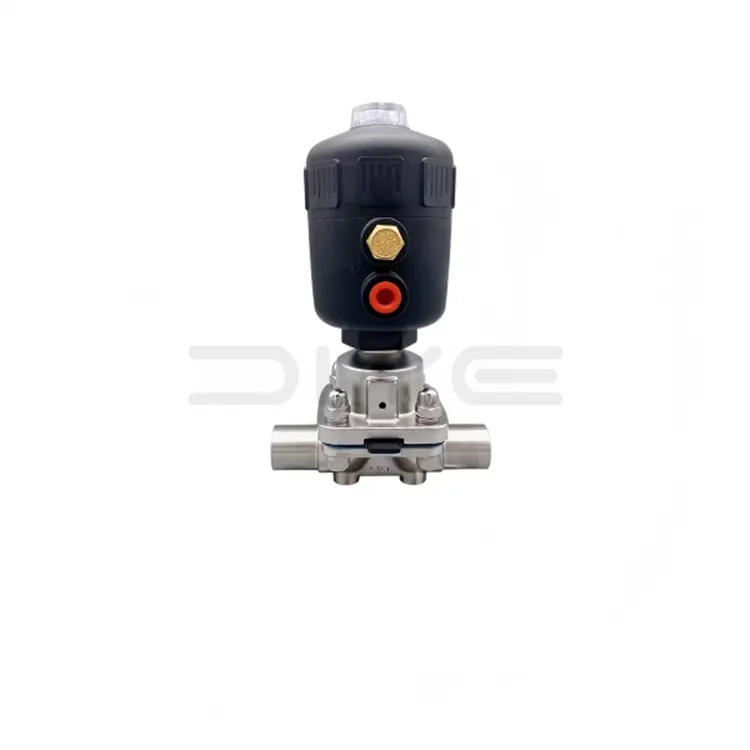

The Stainless Steel Sanitary Diaphragm Valve features a simple structure, composed of a valve body, flexible diaphragm, and other core components, offering manual, pneumatic, and electric actuation methods. When the valve stem is pressed down, the diaphragm adheres to the valve seat, closing the flow path; when the valve stem moves up, the diaphragm resets, opening the flow path. Operation is convenient and maintenance costs are low.

2. High-Quality Materials

As a responsible supplier, DIYE VALVE strictly controls the quality of raw materials. The valve body primarily uses electropolished 316L stainless steel (Ra≤0.4μm), conforming to FDA and GMP standards; SUS304 stainless steel can be used for simpler applications. Diaphragm materials are FDA and USP Class VI certified and can be customized:

- EPDM: Resistant to high-temperature steam, suitable for general aseptic conditions;

- PTFE/EPDM composite material: Corrosion and temperature resistant, suitable for corrosive media;

- Food-grade silicone: Non-toxic and odorless, suitable for the food and beverage industry.

3. User-friendly Connections and Ease of Maintenance

The Stainless Steel Sanitary Diaphragm Valve offers three connection methods: clamp, welding, and flange. Clamp connections allow for quick assembly and disassembly, facilitating cleaning and maintenance, making them the preferred choice for sanitary applications and preventing media residue.

4. Core Hygiene Advantages

The core advantages of the Stainless Steel Sanitary Diaphragm Valve are its lack of dead zones and contamination. A flexible diaphragm isolates the flow channel from the actuator, eliminating cross-contamination and leakage. The valve body is smooth, easy to disassemble and clean, and suitable for industries with extremely high requirements for media purity, such as pharmaceuticals.

Brand Strength and Reliability

1. Extensive Industry Experience

DIYE VALVE has many years of experience exporting Stainless Steel Sanitary Diaphragm Valve. As a professional manufacturer rooted in China, it has deep expertise in industry technology, and its products are sold globally, gaining high customer recognition.

2. Strict Quality Control and Standardized Production

DIYE VALVE boasts a standardized production plant, employing advanced equipment and rigorous quality control processes. Each valve undergoes FDA, GMP, and other certifications and factory testing to ensure consistent quality.

3. Professional Export Services and Packaging

As a reliable supplier, DIYE VALVE is proficient in import and export procedures in various countries, providing one-stop export services. Products are packaged to export standards, effectively preventing damage during transportation.

Application Scenarios

This Stainless Steel Sanitary Diaphragm Valve, with its superior hygiene performance and stability, is widely used in high-hygiene industries such as food and beverage, pharmaceuticals, and biotechnology, serving as a key piece of equipment for ensuring aseptic and safe production.

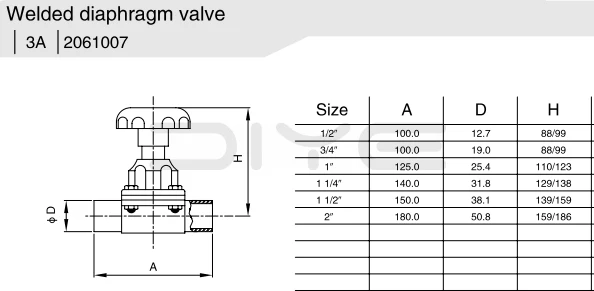

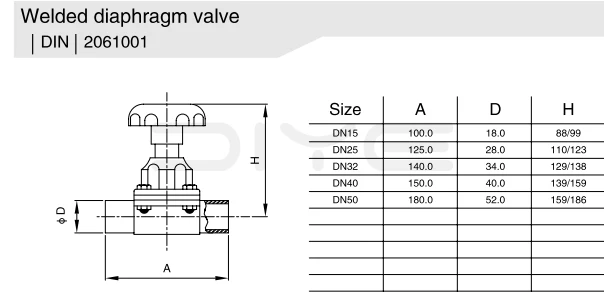

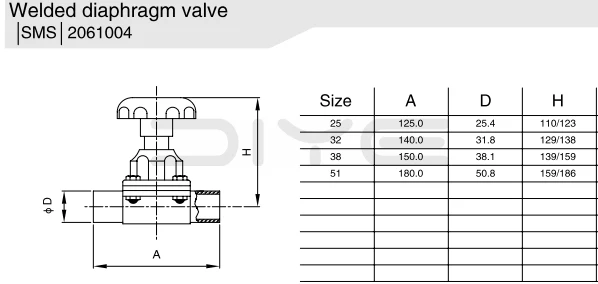

Technical Specifications

Sanitary Diaphragm Valve FAQ

1. What are the core differences between sanitary diaphragm valves and ordinary diaphragm valves?

The core differences lie in hygienic standards and zero-dead-leg design. Sanitary diaphragm valves feature valve body flow passages treated with electropolishing (Ra ≤ 0.4μm), free of any depressions or dead spaces, which eliminates medium residue and microbial growth and is compatible with CIP/SIP online cleaning and sterilization. All materials meet hygienic certifications such as FDA and GMP, and the diaphragm parts in contact with the medium contain no toxic or harmful substances.

In contrast, ordinary diaphragm valves focus on sealing and flow control, with no requirements for hygienic-grade materials or zero-dead-leg design, making them unable to meet aseptic working conditions in food, pharmaceutical and other industries.

2. What is the general service life of a sanitary diaphragm, and how to judge whether it needs replacement?

The service life of a sanitary diaphragm depends on the material and working conditions. Under normal aseptic working conditions and regular maintenance, the service life of a conventional EPDM diaphragm is about 1-2 years, while that of a PTFE/EPDM composite diaphragm is about 2-3 years.

The diaphragm needs to be replaced promptly in the following situations:

① Medium leakage persists even after the valve is closed;

② The diaphragm surface is damaged, aged or cracked;

③ Sealing performance degrades after cleaning and sterilization;

④ Abnormal feel when opening/closing the valve (such as jamming or weak actuation).

DIYE VALVE provides compatible original diaphragms, which are easy to replace without professional tools.

Summary

As a professional manufacturer and supplier in China, DIYE VALVE owns its own production plant. Its stainless steel sanitary diaphragm valves offer outstanding advantages, complying with EEAT principles and international standards, providing reliable fluid control solutions for high-hygiene industries worldwide, and striving to become a trusted partner for its customers.
