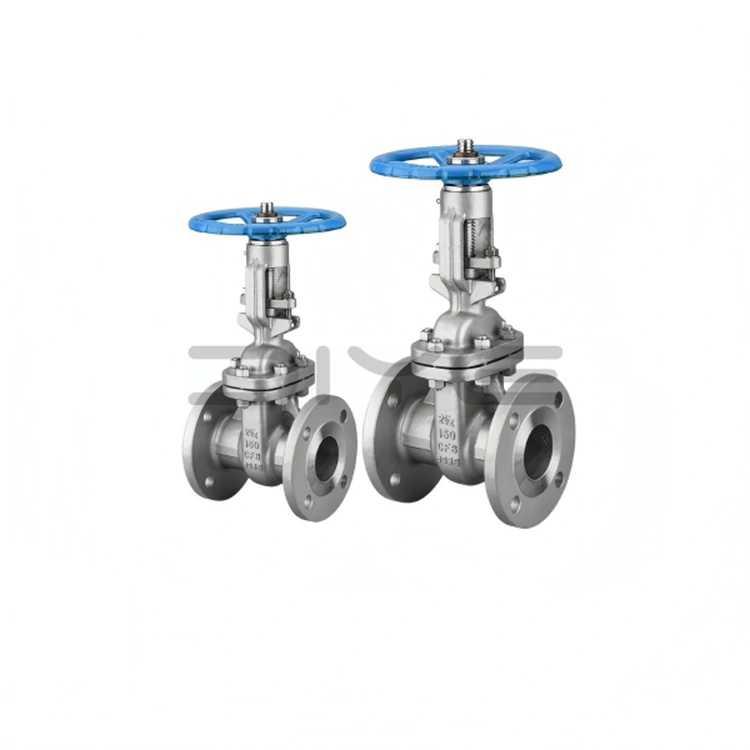

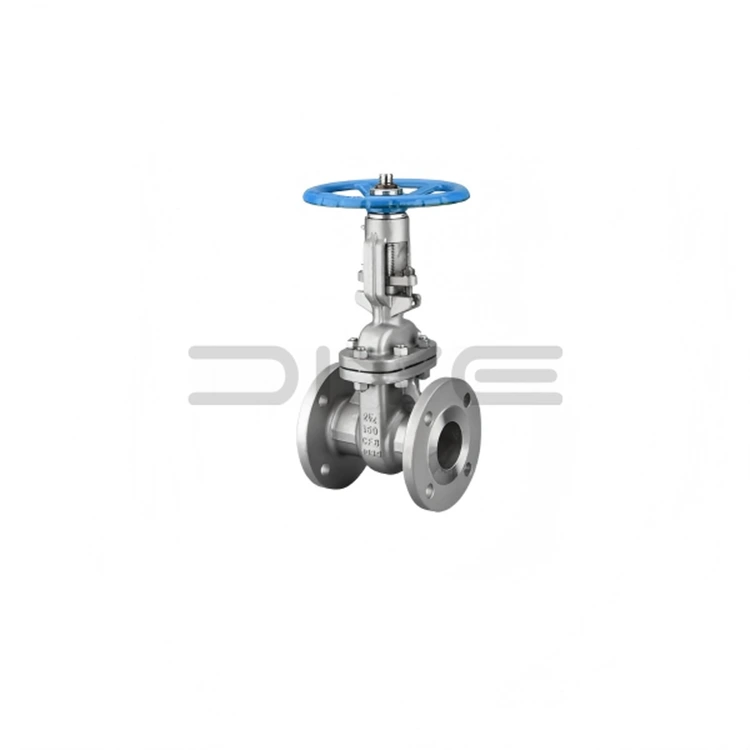

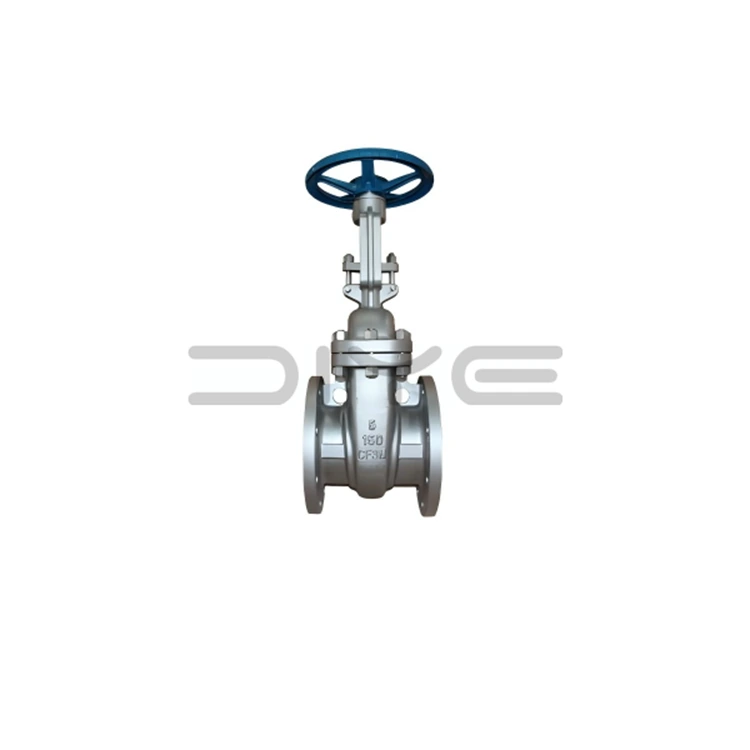

Stainless Steel 150LB Flanged Gate Valve
DIYE VALVE specializes in manufacturing and wholesaling Stainless Steel 150LB Flanged Gate Valve, featuring corrosion resistance and high-precision fluid control performance. Our products are widely adapted to industrial sectors with stringent requirements for medium cleanliness and corrosion resistance, such as petroleum chemical industry, fine chemical industry, food and pharmaceutical industry. All our ANSI flanged gate valves are manufactured in strict compliance with API/ANSI standards.
1. The Stainless Steel 150LB Flanged Gate Valve is a high-performance on-off valve compliant with ANSI/ASME standards. Core components including the valve body and bonnet are made of 304/316/316L stainless steel, boasting excellent intergranular corrosion resistance and mechanical strength. Featuring a standardized flanged connection design, it enables seamless integration with ANSI industrial piping systems, serving as an ideal fluid control solution for high-demand working conditions.
2. The Stainless Steel 150LB Flanged Gate Valve adopts a parallel double-disc + resilient seat structural design, achieving bidirectional sealing by virtue of medium pressure and spring preload. Its sealing surfaces can be overlay-welded with Stellite alloy to enhance wear and erosion resistance, ensuring the valve maintains zero-leakage sealing performance even after frequent on-off operations and meeting the stringent sealing requirements of harsh working conditions.
Typical Applications
Petrochemical Industry: On-off control of pipelines for conveying crude oil, refined oil and chemical raw materialsWater Treatment Industry: Pipeline control of corrosive media in seawater desalination and sewage treatment systemsEnergy and Power Industry: Fluid control of cooling systems and auxiliary pipelines in nuclear power plants and gas-fired power plants
Product Advantages
Customization Service: The ANSI stainless steel flanged gate valve can be customized with personalized solutions such as cryogenic bonnets, fire and anti-static structures, and special sealing materials (e.g. PTFE, fluororubber) according to specific requirements
Applicable Standards
|
Gate Valve Design Specifications |
API 600 API 6D |
|
Gate ValvePressure Temperature |
ASME B 16.34 |
|
Gate Valve Length |
ASME B 16.10 |
|
Gate Valve End Flanges |
ASME B 16.5 |
|
Gate Valve Inspection and Test |
API 58 API 6D |
Hot Tags: Stainless Steel 150LB Flanged Gate Valve, 150LB Gate Valve Wholesale, Industrial Gate Valve Supplier
