Stainless Steel Threaded Elbow

DIYE VALVE Stainless Steel Threaded Elbows are more than just pipe fittings—they are engineered solutions that improve piping layout efficiency, reduce operating energy consumption, and adapt to various industrial fluid transport scenarios. With proven performance and rigorous quality control, our elbows meet the most stringent industrial reliability and durability standards, making them the preferred choice for engineers and contractors worldwide.

Product Features and Practical Application Cases

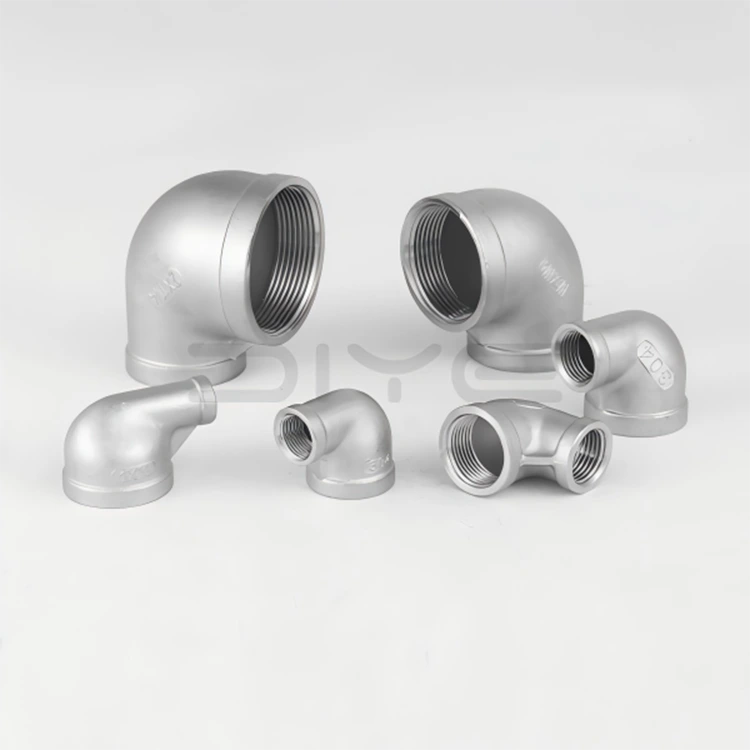

1. 90° Stainless Steel Threaded Elbow

This 90° elbow excels at meeting standard vertical turning requirements, offering extremely high space utilization and easy installation.

- Core Advantages: Enables precise 90° turns, has a small footprint, simplifies piping layout, and facilitates future maintenance.

- Typical Scenarios: Pipeline penetration through walls, equipment interface connections, and general industrial piping installation.

- Verification Case: In a Chinese factory specializing in chemical synthesis, DIYE VALVE 90° threaded elbows were installed to connect reactors and transfer pumps. This upgrade optimized the equipment layout, saving approximately 15% of valuable floor space and significantly improving the convenience of on-site maintenance.

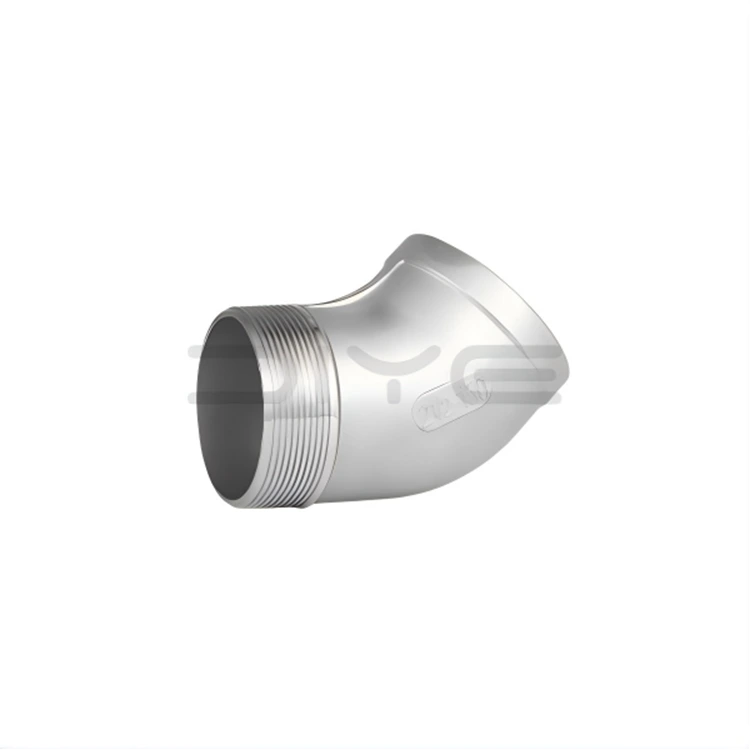

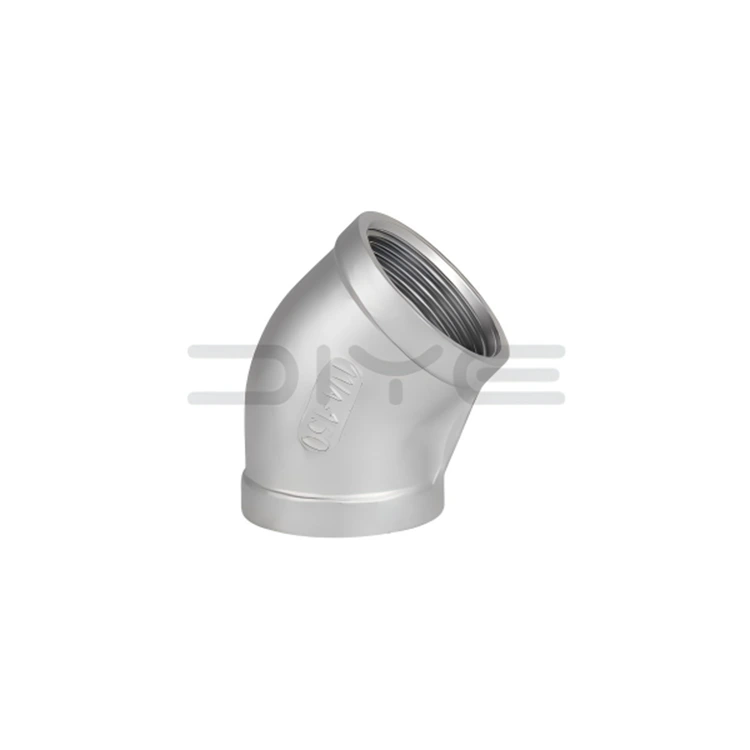

2. 45° Stainless Steel Threaded Elbow

This 45° elbow is specifically designed for high-flow, long-distance pipeline transport. Reducing pressure drop and turbulence is key to ensuring its operational efficiency.

- Key Advantages: Compared to 90° elbows, the 45° design significantly reduces turbulence and pressure drop, lowering pump workload and overall system energy consumption.

- Typical Scenarios: Long-distance fluid transport, high-flow systems, and applications prioritizing energy efficiency.

- Case Study: An overseas water treatment plant replaced some 90° elbows in its main distribution pipeline with DIYE VALVE 45° threaded elbows. Post-installation analysis showed an 8% reduction in pump power consumption, more stable system operation, and lower utility costs.

3.Multi-Angle Combinations

Combining multiple 45° elbows provides exceptional flexibility, easily handling scenarios with dense equipment layouts and narrow maintenance access.

- Key Advantages: Enables complex directional adjustments, replacing single 90° elbows, reducing mechanical stress concentration, and facilitating later inspection and maintenance.

- Typical Scenarios: Areas with dense equipment, narrow maintenance access, and complex process skids.

- Case Study: A food processing plant, supported by a reliable hygienic process component supplier, successfully resolved its insufficient equipment spacing issue by using multiple DIYE VALVE 45° elbows to adjust pipe direction, achieving a safe, efficient, and hygienic production line layout.

Technical Specifications

DIYE VALVE Stainless Steel Threaded Elbows strictly adhere to international standards, ensuring excellent compatibility and stable performance in various projects worldwide.

Selection Guide and Customer Support

- Choose 45° Elbows: Suitable for piping systems requiring reduced pressure drop, reduced erosion wear, or flexible direction adjustments due to space constraints.

- Choose 90° Elbows: Suitable for standard right-angle connections, simple layouts, and high-volume applications under normal operating conditions.

As a leading manufacturer in China, DIYE VALVE offers a full range of 45° and 90° Stainless Steel Threaded Elbows. We support non-standard customization, provide free samples (shipping costs borne by the customer), and offer comprehensive piping solutions to ensure overseas customers receive cost-effective, high-quality product components.
