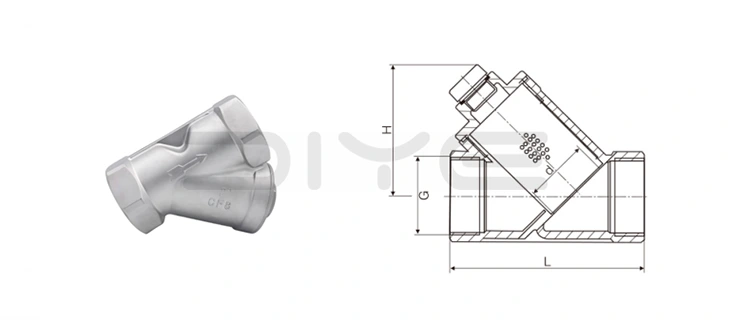

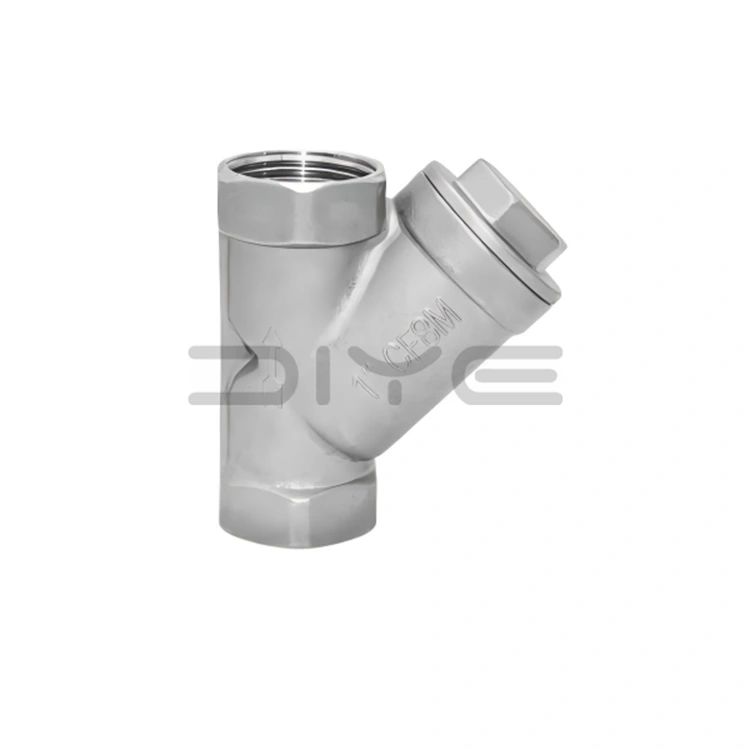

Stainless Steel Y-Type Strainer

As a critical pre-filter component, the Stainless Steel Y-Type strainer is installed upstream of pumps, valves, instruments, and heat exchangers. It effectively intercepts particulate impurities such as welding slag, rust, and silt, protecting downstream equipment from scratches, blockages, and premature wear. As a reliable supplier with advanced production facilities, we offer cost-effective customized solutions to meet various industrial filtration needs.

Working Principle and Core Advantages

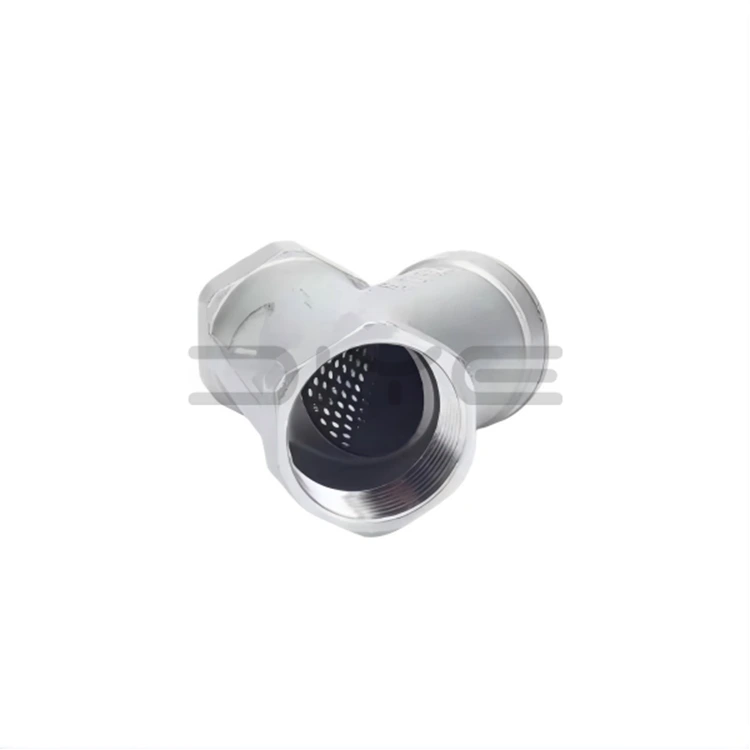

The DIYE VALVE Stainless Steel Y-Type strainer achieves efficient solid-liquid separation through a built-in high-precision stainless steel filter. As fluid flows through the Y-shaped valve body, impurities are intercepted and stored in a dedicated collection chamber. User-friendly design makes maintenance easier: Simply remove the drain cover to quickly remove the filter for cleaning, without disassembling the entire pipe section, significantly reducing downtime and operational complexity.

Key advantages include:

1. Superior Material Construction: The Stainless Steel Y-Type strainer is made entirely of 304/316L stainless steel, possessing excellent corrosion resistance and durability, suitable for various applications including water, oil, chemicals, and pure water.

2. Optimized Flow Channel Design: The streamlined Y-shaped structure minimizes flow resistance, ensuring stable filtration performance while guaranteeing efficient pipeline transport.

3. Flexible Filtration Accuracy: Coarse, regular, and fine filter stages are available to adapt to various operational needs, from general pipeline protection to high-purity industrial processes.

4. Economical Maintenance Costs: The filter is reusable and easy to disassemble, reducing long-term operating and maintenance costs.

Filter Screen Specifications

We offer customizable filter screen sizes to match specific operating conditions, ensuring optimal protection for different equipment and media:

1. Coarse Filtration (10-40 mesh): Intercepts large particulate impurities, suitable for primary protection of water pumps, main valves, and main pipeline equipment.

2. Standard Filtration (60-100 mesh): Suitable for general water supply and drainage, HVAC, fire protection, and oil pipeline systems.

3. Fine Filtration (120-300 mesh): Meets the stringent pre-protection requirements of pure water, pharmaceuticals, fine chemicals, and precision equipment.

Quality Assurance and Customization Services

As a professional original manufacturer, DIYE VALVE implements strict quality control throughout the entire process, from precision casting, machining, polishing to pressure testing and leak detection. Each product undergoes rigorous shell strength and sealing tests before leaving the factory to ensure product reliability meets international industrial standards.

We offer comprehensive customization services:

1. Customized filter sizes to meet unique filtration needs.

2. High-grade alternative materials suitable for corrosive or high-temperature environments.

3. Customizable non-standard diameters and connection methods (threaded, flanged, welded) to fit various piping systems.

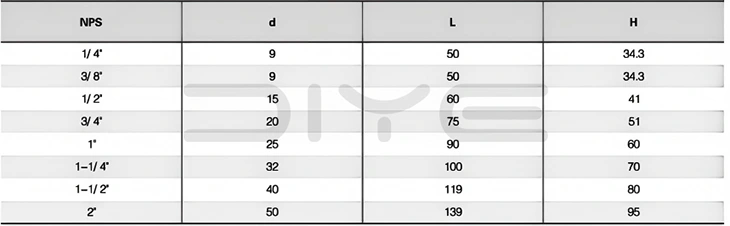

Technical Parameters

Market Recognition

Our Stainless Steel Y-Type strainers are mass-produced in full range and have long-term, extensive export relationships with Russia, Europe, Southeast Asia, the Middle East, and other regions. With stable quality, reliable performance, and high cost-effectiveness, DIYE VALVE has become the preferred supplier of pre-filter accessories for international trade projects, further solidifying its reputation as a reliable manufacturer from China with advanced production facilities.
