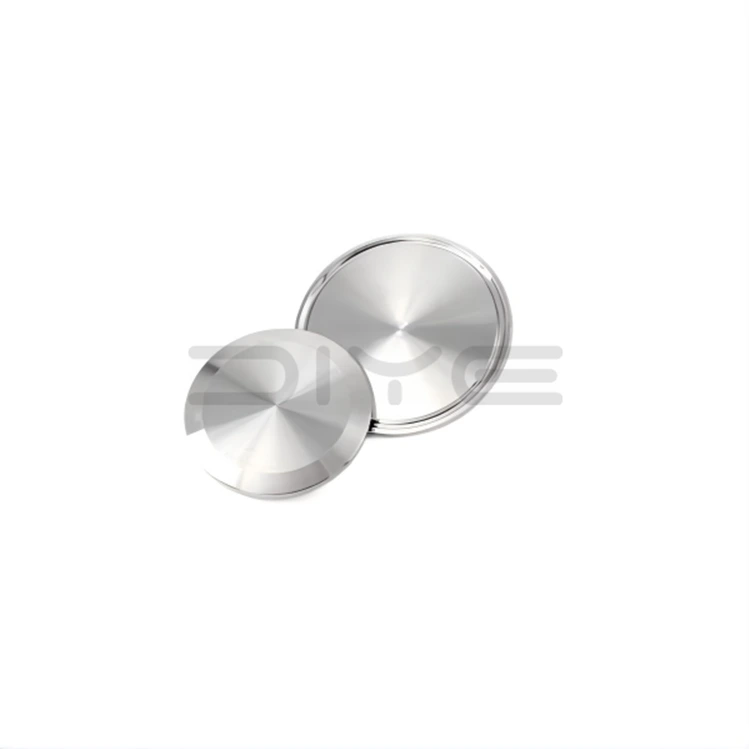

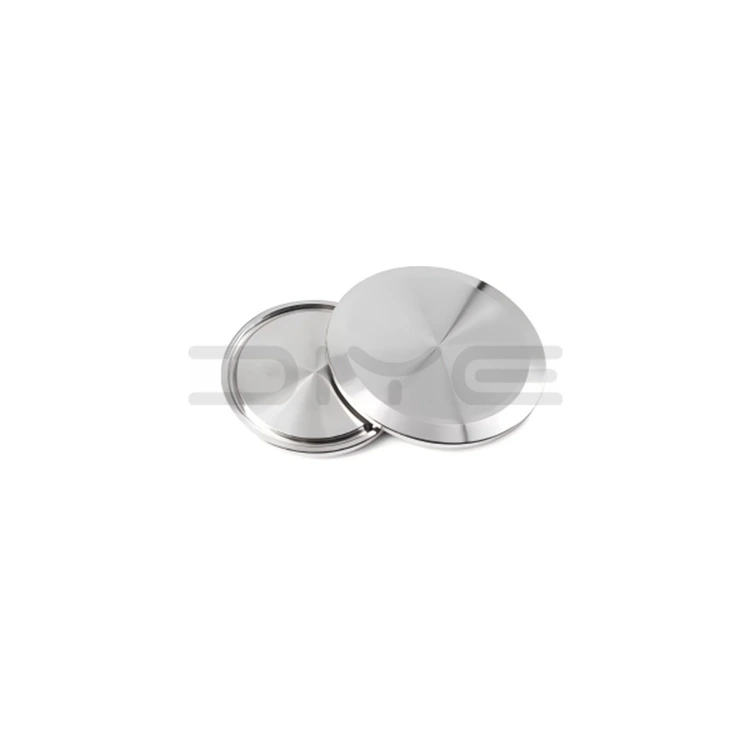

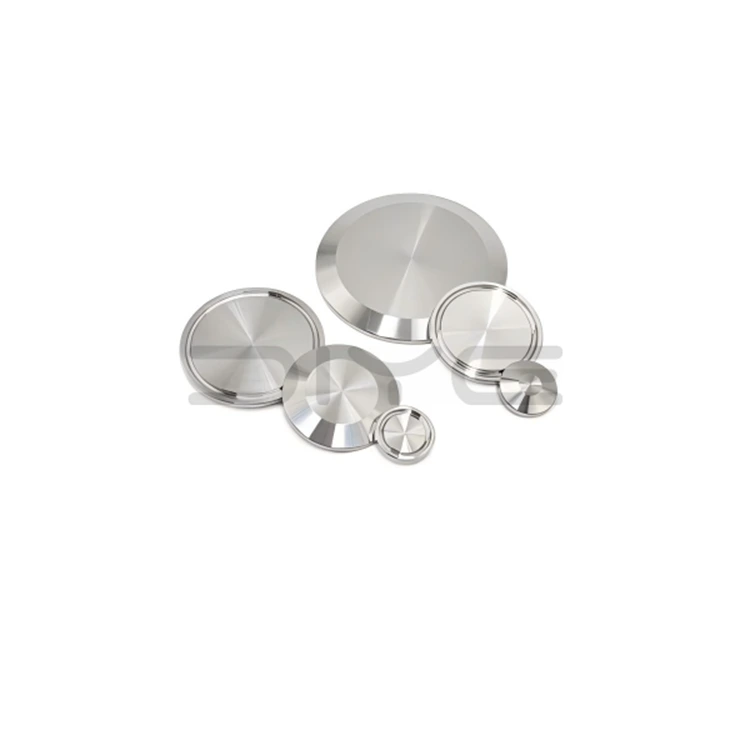

16 AMP Solid End Cap

DIYE VALVE is a professional manufacturer deeply rooted in the sanitary pipe fitting field. Owning its own factory and controlling the entire production chain, it is a trustworthy China-based supplier of 16 AMP Solid End Caps, possessing extensive experience in R&D, production, and customization.

The company is proficient in major global hygiene standards such as 3A and FDA, and can customize certification documents. It supports small-batch trial orders, OEM/ODM, and processing based on drawings and samples, eliminating intermediaries and providing cost-effective products to meet various overseas procurement needs.

Core Product Positioning and Application Scenarios

1. Product Positioning

The 16 AMP Solid End Cap is DIYE VALVE's core product, used for permanent or temporary sealing of the ends and pre-installed interfaces of clean fluid system pipelines. It is a key component ensuring the cleanliness and safety of pipeline systems.

2. Application Scenarios

The 16 AMP Solid End Cap is widely used in industries with high hygiene requirements, such as food, pharmaceuticals, and dairy products. It is compatible with various sanitary fluid pipelines, preventing media leakage, foreign object intrusion, and cross-contamination.

Core Product Features and Technical Parameters

1. Core Functions

Core functions include: isolating pipeline sections, sealing unused interfaces, facilitating CIP/SIP cleaning and sterilization, preventing media leakage and cross-contamination, and ensuring fluid safety.

2. Materials and Manufacturing Process

The 16 AMP Solid End Cap is made of high-quality SUS304 (food grade) and SUS316/316L (pharmaceutical grade) stainless steel. The inner and outer surfaces are polished (Ra ≤ 0.4–0.8 μm), with no dead corners, meeting CIP/SIP cleaning and sterilization requirements.

3. Standards and Specifications

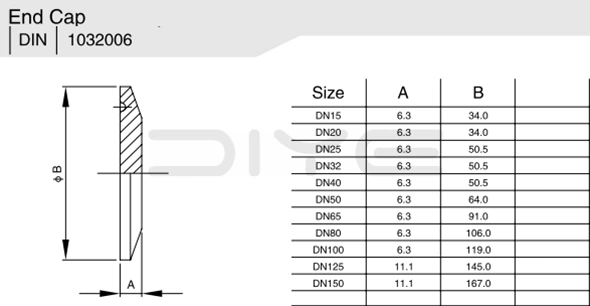

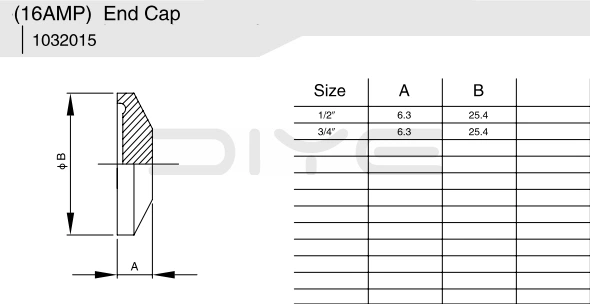

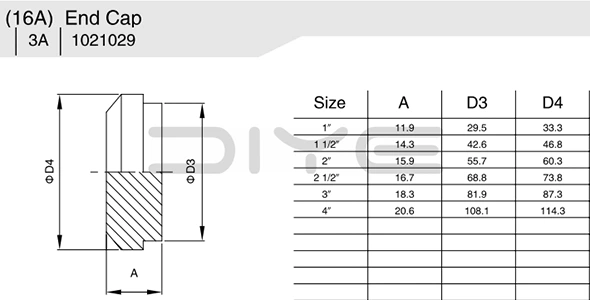

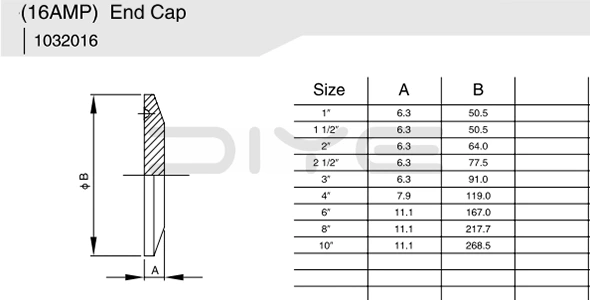

Strictly adheres to international standards such as ISO and 3A. Standard sizes range from DN15 to DN200 (Φ19.1 to Φ254), with customization available upon request.

Product Advantages and Customer Value

1. Controllable Quality: The source factory independently controls the entire production chain, ensuring strict quality control.

2. Compliance Guarantee: Meets international standards, with certification documents available.

3. Flexible Adaptability: Supports customization and small-batch trial orders.

4. High Cost-Effectiveness: Leveraging the advantages of the China supply chain, eliminating intermediaries and improving delivery efficiency.

Solid End Cap FAQ

Q: Can a sanitary solid end cap be used for steam sterilization?

A: Yes. A sanitary solid end cap made of 316L stainless steel with EPDM/PTFE seals can withstand 121°C steam sterilization (SIP), featuring stable sealing and no deformation.

Q: What standards do solid end caps comply with?

A: Our sanitary solid end cap complies with various international standards, including DIN, SMS, ISO, IDF, 3A, and RJT.

Summary

DIYE VALVE, as a professional manufacturer and supplier in China, leverages its factory advantages, industry experience, and compliance capabilities to create high-quality 16AMP Solid End Caps, providing safe, reliable, and cost-effective pipe sealing solutions for industries with high hygiene requirements worldwide.
