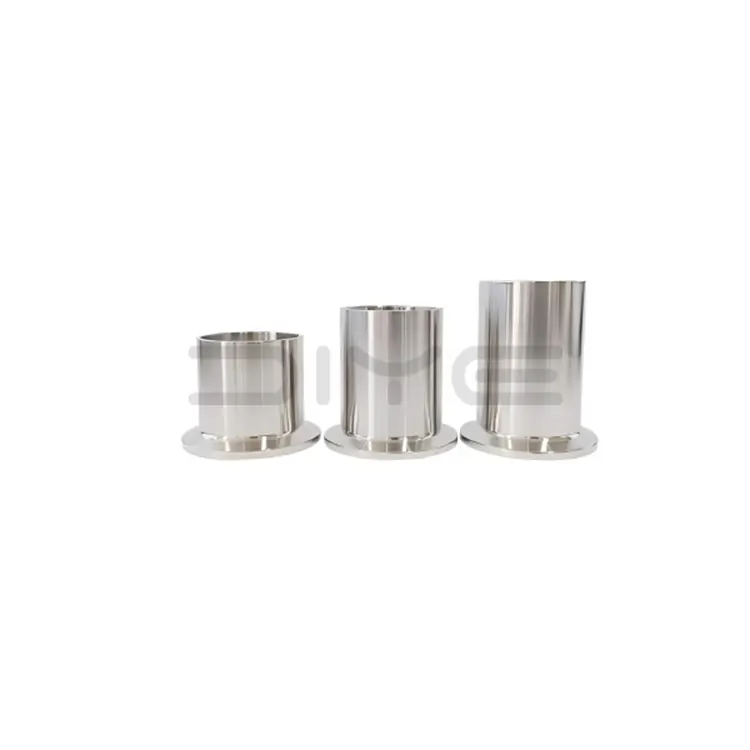

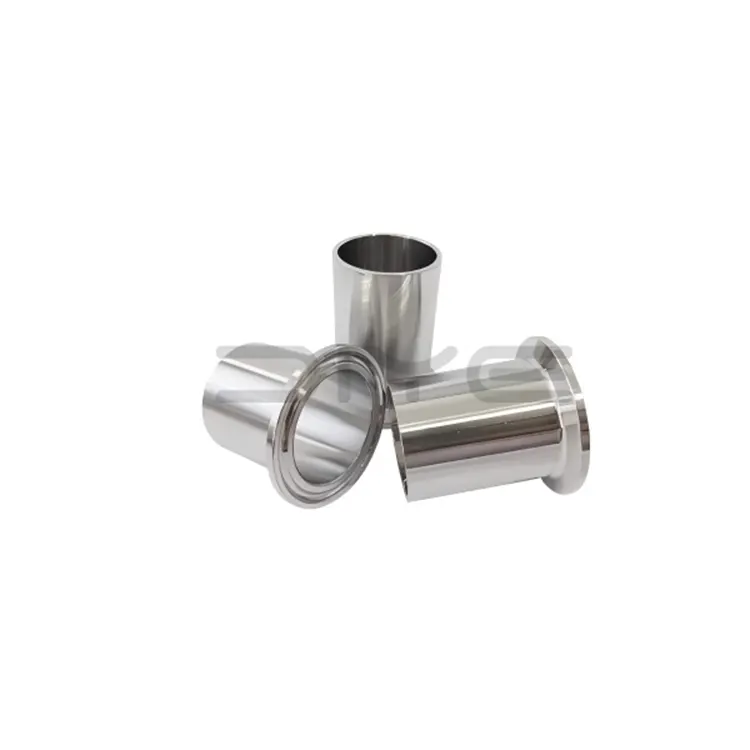

Sanitary Stainless Steel Ferrule

Sanitary Stainless Steel Ferrule are designed for fast connection and sealing between pipelines, valves, tanks and equipment. Featuring a simple structure and easy disassembly, they greatly improve the efficiency of pipeline installation, maintenance and cleaning. The smooth inner wall with zero dead legs meets the requirements of CIP (Clean-in-Place) and SIP (Sterilize-in-Place), effectively preventing medium residue and bacterial growth, and conforms to international hygiene standards such as GMP and 3A. Made of SUS304/316L stainless steel, the products deliver reliable sealing, corrosion resistance and high temperature resistance.

About Us

1.As a professional source manufacturer in China, DIYE provides Sanitary Stainless Steel Ferrule with three core strengths: cost-effective pricing, mature export experience and reliable warranty service, making them more suitable for overseas procurement and long-term engineering applications.

2.We have years of export experience in sanitary pipe fittings, and are well-versed in international common standards including DIN, SMS, ISO, IDF and 3A. Our products are fully interchangeable with global fittings of the same specifications. Proficient in foreign trade procedures and customs clearance documentation, we can provide a complete set of certificates including material test reports, inspection reports and export documents. With stable delivery and standardized packaging, we efficiently serve overseas markets such as Europe, America, the Commonwealth of Independent States (CIS) and Southeast Asia.

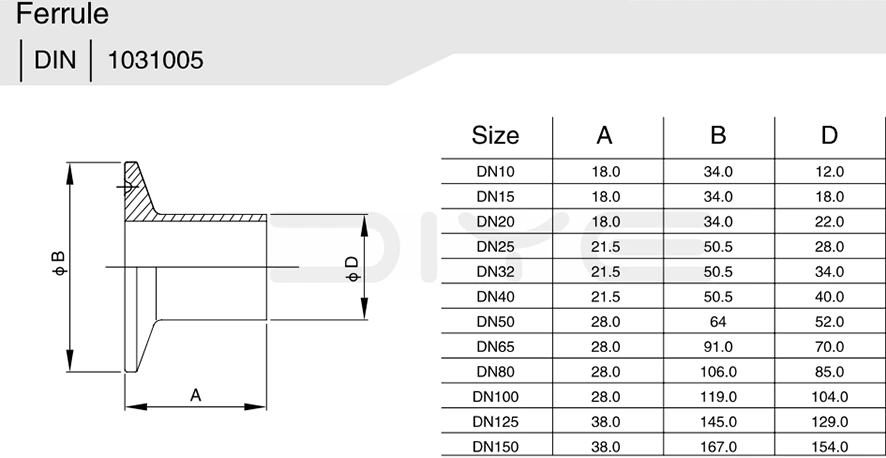

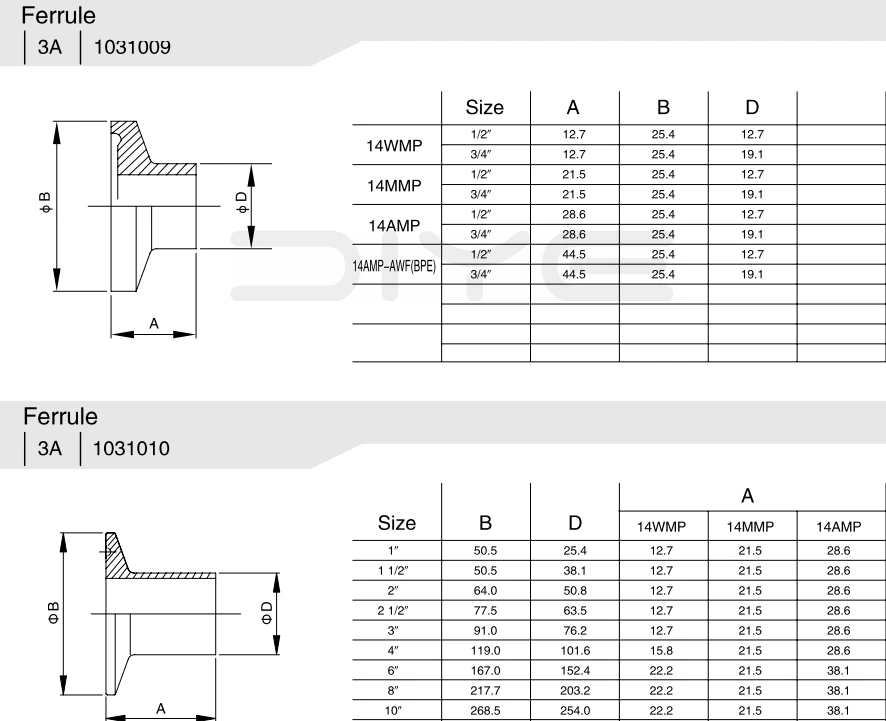

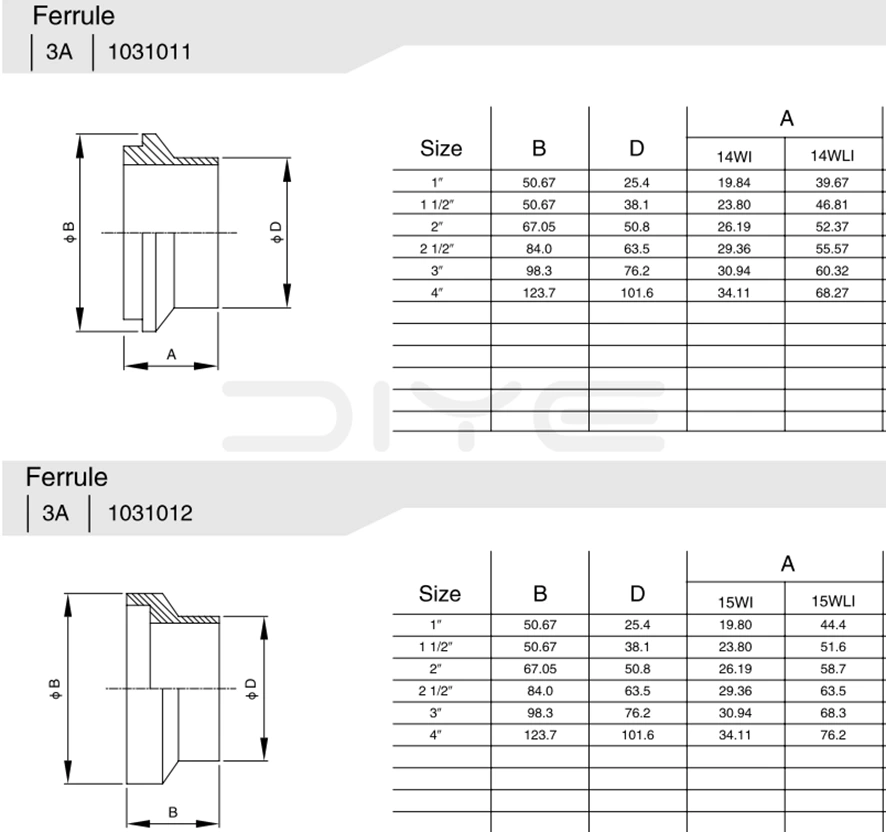

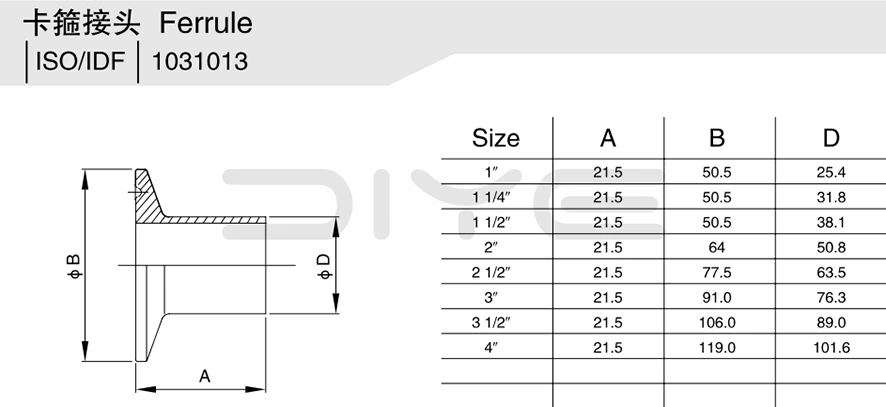

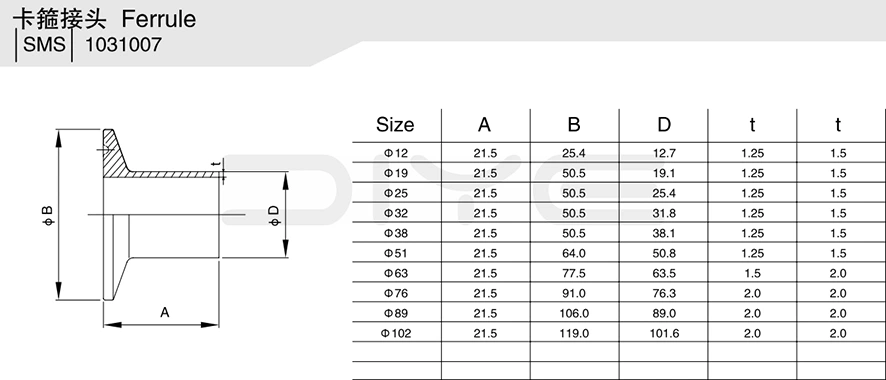

Technical Specifications

Sanitary Stainless Steel Ferrule FAQ

Q: What are the common materials for Sanitary Stainless Steel Ferrule?

A: Sanitary Stainless Steel Ferrules are commonly made of SUS304 and SUS316L stainless steel, which comply with hygienic standards including ASTM A270 and ASTM A312. They feature corrosion resistance and no precipitation, making them suitable for clean working conditions such as food and pharmaceutical industries.

Q: What surface roughness can Sanitary Stainless Steel Ferrules achieve?

A: Standard polishing reaches Ra ≤ 0.8μm, while pharmaceutical-grade polishing can achieve Ra ≤ 0.4μm. Mirror polishing and electrolytic polishing (EP) are both available.

Q: How many parts does a standard Sanitary Stainless Steel Ferrules consist of?

A: A complete set of standardStainless Steel Ferrules is composed of three parts: Clamp, sealing gasket, and Ferrules.
