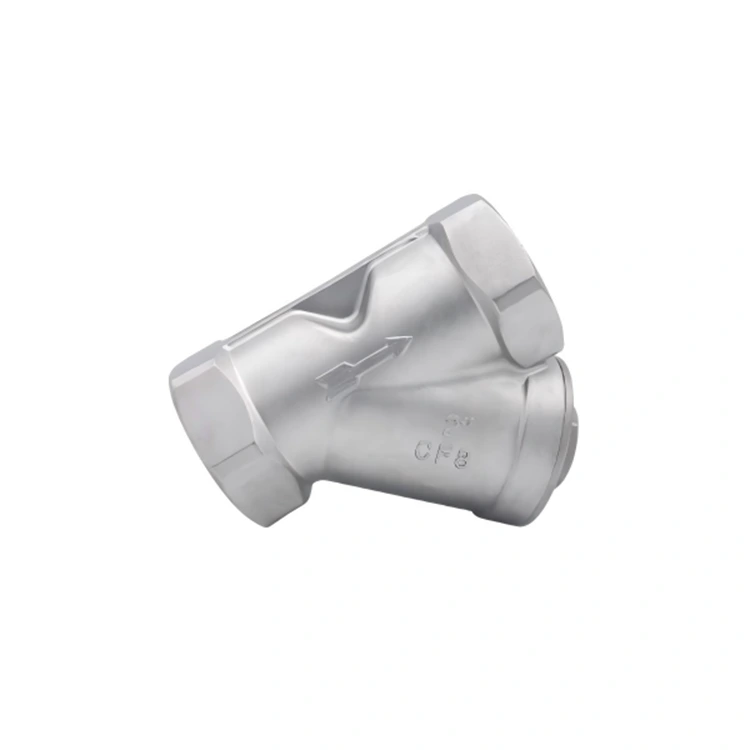

Stainless Steel Y-Type Check Valve

Designed for demanding applications, the Stainless Steel Y-Type Check Valve offers stable performance, low flow resistance, and easy installation, making it ideal for critical piping systems. As a professional manufacturer headquartered in China, DIYE VALVE combines precision engineering with durable materials to create check valves that excel in the most challenging environments.

Design and Performance Features

1. Optimized Y-Type Flow Path

The unique Y-shaped inclined design significantly reduces fluid resistance, ensuring unobstructed flow and minimizing the risk of deposit buildup and clogging. The smooth, dead-angle-free internal cavity design maintains excellent flow efficiency at all times.

2. High-Quality Stainless Steel Structure

The valve body is constructed entirely of 304/316L stainless steel, possessing excellent corrosion resistance, rust prevention, and scale prevention capabilities, making it suitable for corrosive media environments.

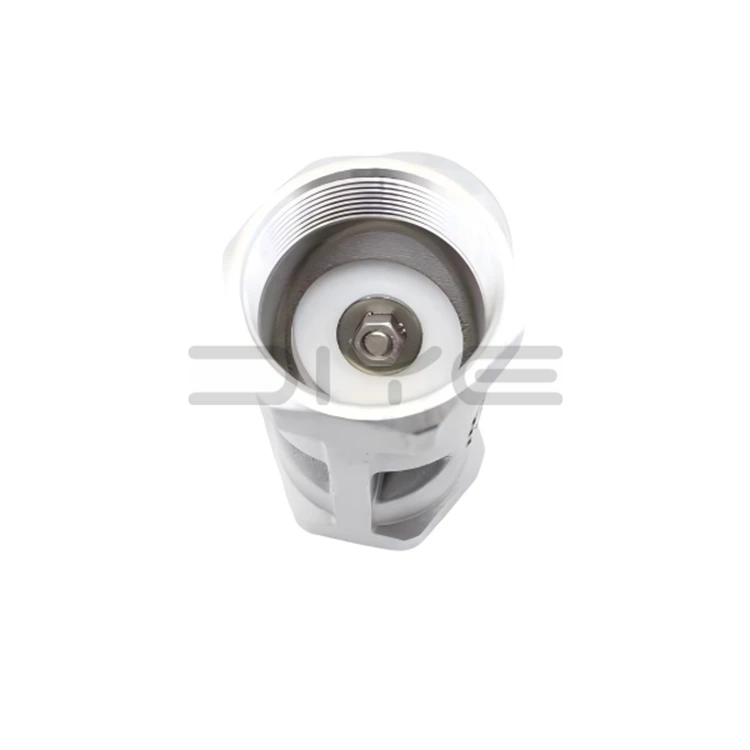

3. Lift-Type Sealing Mechanism

Unlike traditional swing check valves, the lift-type valve core has a short stroke, rapid response, and a tight seal, precisely achieving backflow prevention.

4. Flexible and Convenient Installation

The valve's compact structure and flexible installation methods allow for vertical or horizontal installation, easily adapting to different space constraints and simplifying the integration of new systems or the modification of existing systems.

5. Superior Durability

It can withstand high temperature and high pressure conditions, exhibiting stable performance, long service life, and extremely low maintenance requirements.

Working Principle

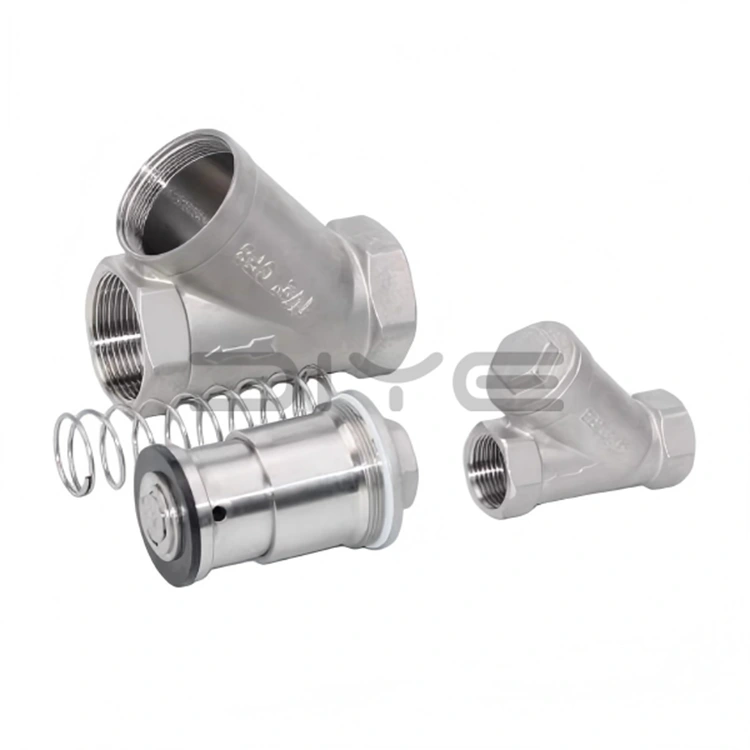

This Stainless Steel Y-Type Check Valve achieves automatic opening and closing solely based on media pressure, requiring no external power supply, manual operation, or pneumatic drive. During normal forward flow, the media pressure pushes up the valve core and spring assembly, fully opening the flow channel and allowing smooth fluid passage.

When fluid flow stops, pressure drops, or backflow occurs, the valve core quickly falls back under the combined action of its own gravity, spring return force, and reverse media pressure, tightly sealing against the valve seat surface, effectively preventing backflow and mitigating water hammer impact. This protects critical downstream equipment such as pumps, filters, heat exchangers, and pressure vessels, as well as the entire pipeline system, stabilizing pipeline operating pressure.

Applicable Media and Application Scenarios

1.Applicable Media

Clean water, seawater, pure water, sewage, steam, oil, chemical solutions, pharmaceuticals, and weak acid/alkali fluids.

2. Main Application Industries

- Water Treatment and Environmental Protection

- Food and Beverage Processing

- Pharmaceuticals and Biotechnology

- Chemicals and Petrochemicals

- Power Generation and Heating Systems

- Seawater Desalination

- Shipbuilding and Marine Engineering

The Stainless Steel Y-Type Check Valve is particularly suitable for installations with high requirements for hygiene, corrosion resistance, rust prevention, and backflow prevention, where piping space is limited and impurities are prone to buildup.

Quality Assurance and Production Capabilities

As a trusted supplier and professional factory, DIYE VALVE ensures that every Stainless Steel Y-Type Check Valve meets stringent quality standards. Each valve is precision-manufactured to full specifications and undergoes pressure testing before leaving the factory to ensure flawless performance.

We have a long history of exporting products in large quantities to many countries worldwide. Our products are known for their stable quality, high reliability, and outstanding cost-effectiveness. We also support comprehensive foreign trade customization services to meet the specific needs of various projects, solidifying our leading position as a provider of high-end industrial valve solutions.
