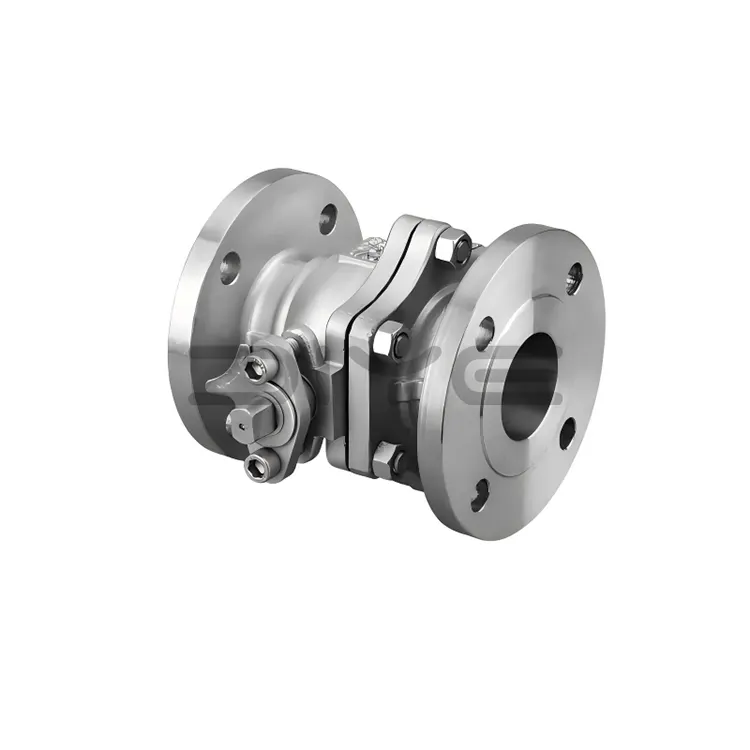

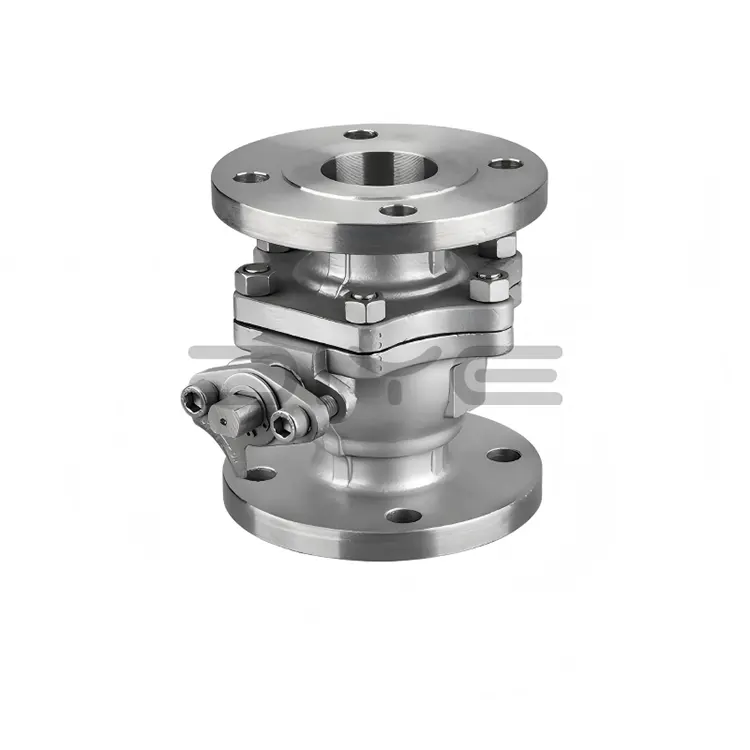

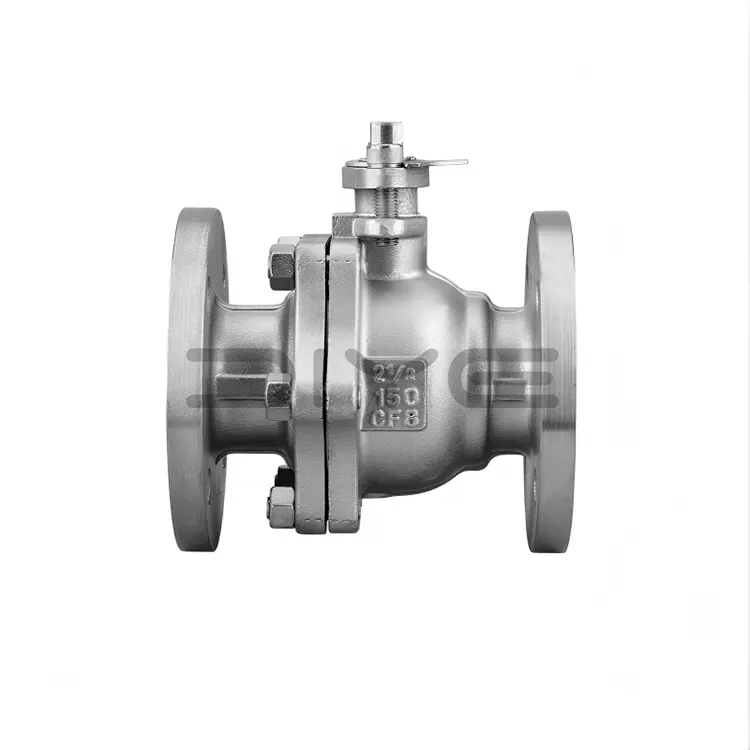

150LB Flange Ball Valve

DIYE VALVE strictly controls the entire production process of 150LB Flange Ball Valve to comply with API, ANSI and other international standards as well as national standards, meeting export quality requirements. The core process steps are as follows:

Raw Material Selection and Inspection: The core components of our 150LB Flange Ball Valve, such as valve body, ball and valve stem, are made of high-quality base materials including cast steel, 304/316/316L stainless steel and chrome-molybdenum steel. Before delivery to the factory, material purity and performance are verified through spectral analysis, hardness testing and other methods to prevent unqualified raw materials from entering the production process.

Precision Machining and Forming: The valve body of 150LB Flange Ball Valve is processed by CNC lathes and milling machines to ensure the dimensional accuracy and fit of the two-piece structure. The ball is treated with high-precision grinding and polishing equipment, and its surface roughness meets high industry standards to ensure sealing adaptability. Components such as valve seats and stuffing boxes are precision-machined according to drawings to guarantee assembly compatibility.

as worm gear, pneumatic and electric, enabling remote control and perfectly adapting to frequent operation scenarios.

Purchase Guidelines

It is necessary to specify the model, nominal diameter, pressure class, valve body and sealing surface material of the 150LB Flange Ball Valve; select suitable materials and sealing structures according to medium characteristics (corrosiveness, viscosity, particle content); indicate the driving method and special requirements such as whether auxiliary sealing systems and locking devices are needed. For important or complex working conditions, it is recommended to provide design drawings and contact our staff to select the appropriate valve for you.

Applicable Standards

Q:What material is suitable for 150LB Flange Ball Valve in water treatment systems?

A: For water treatment, we recommend 304/316L stainless steel (CF8/CF8M) 150LB Flange Ball Valve. It has excellent corrosion resistance to avoid rust and blockage, complying with food-grade and environmental protection requirements. For general industrial water, WCB carbon steel is a cost-effective choice, which is widely used in municipal water supply and drainage projects. A

Q:Does your 150LB Flange Ball Valve comply with API and ANSI standards?

A: All our 150LB Flange Ball Valves are designed and manufactured in accordance with API 608 (floating ball valve) and ASME B16.34 standards. The flange size meets ANSI B16.5, ensuring interchangeability with international brand products. We can provide API 598 test reports (shell pressure test and sealing test) to meet the quality inspection requirements of overseas projects.
