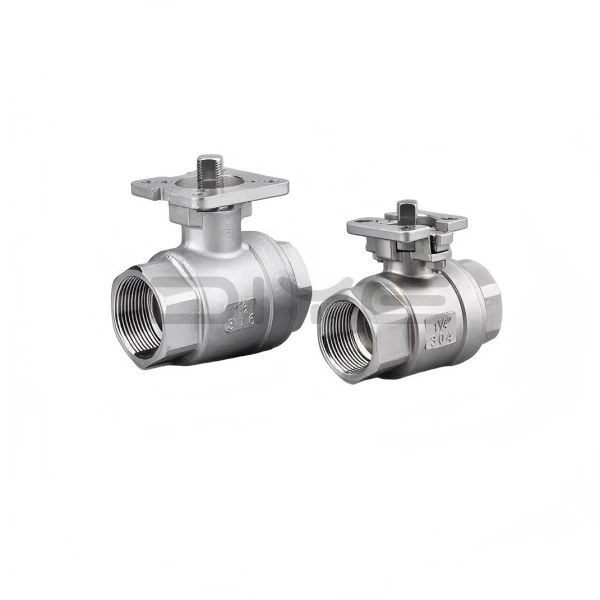

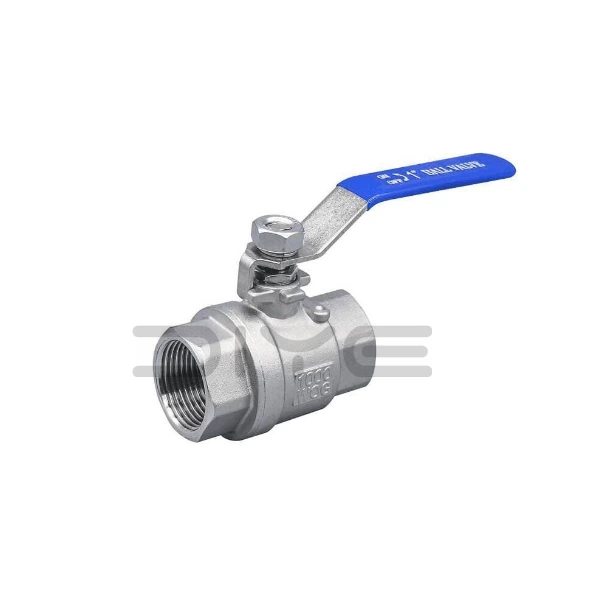

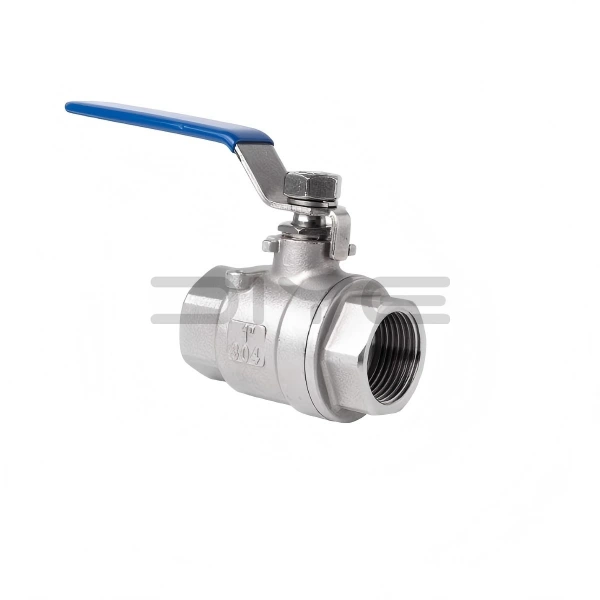

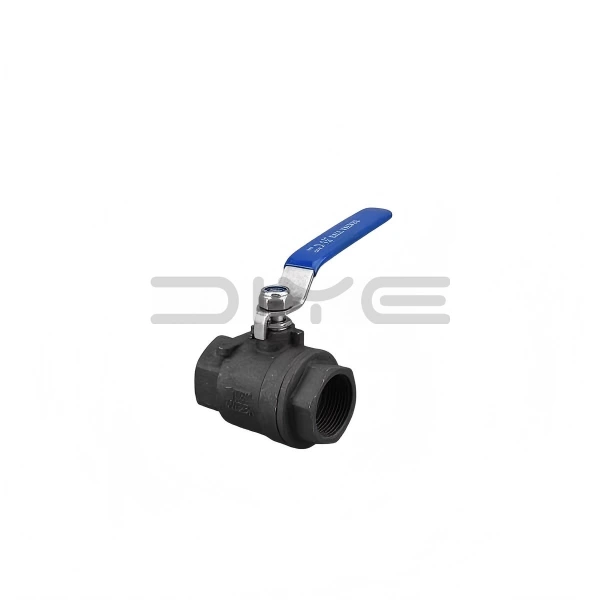

Two Piece Female Thread Ball Valve

As a trusted valve supplier with over 10 years of industry experience, DIYE VALVE applies advanced technologies like CNC machining centers and precision casting to this valve's production. Designed with two-piece structure and female thread connection, it controls medium on-off/flow via internal ball core's 90° rotation.

Adopting advanced manufacturing and strict quality control, this Two Piece Female Thread Ball Valve achieves precise medium on-off/flow distribution via 90° ball rotation. With advantages of lightweight, erosion resistance, easy maintenance and reliable sealing, it is widely used in multiple industrial fields.  Over ten rigorous inspections (pressure resistance, leakage, service life simulation) before ex-factory ensure product stability and durability.

Structure & Working Principle

1. Core Component Composition

The Two Piece Female Thread Ball Valve consists of four core parts: valve body, ball core, valve stem and sealing ring. The two-piece valve body is bolt-connected for structural stability; the ball core with a through-hole is the key component for medium circulation control.

2. Working Mechanism

Rotating the ball core 90° via the valve stem aligns its through-hole with the pipeline (fully open, smooth medium circulation); rotating another 90° makes the through-hole perpendicular to the pipeline (closed, cutting off circulation). In the closed state, the sealing surface is isolated from the medium for excellent erosion resistance. The movable and replaceable sealing ring simplifies maintenance.

Application Fields

DIYE VALVE's Two Piece Female Thread Ball Valve is widely used in chemical, petrochemical, petroleum, natural gas, water treatment, papermaking, power, food, pharmaceutical and municipal engineering fields. Suitable for steam, acid, natural gas and other medium pipelines, it is ideal for frequent operation, reliable sealing and limited space scenarios, providing stable valve control solutions.
