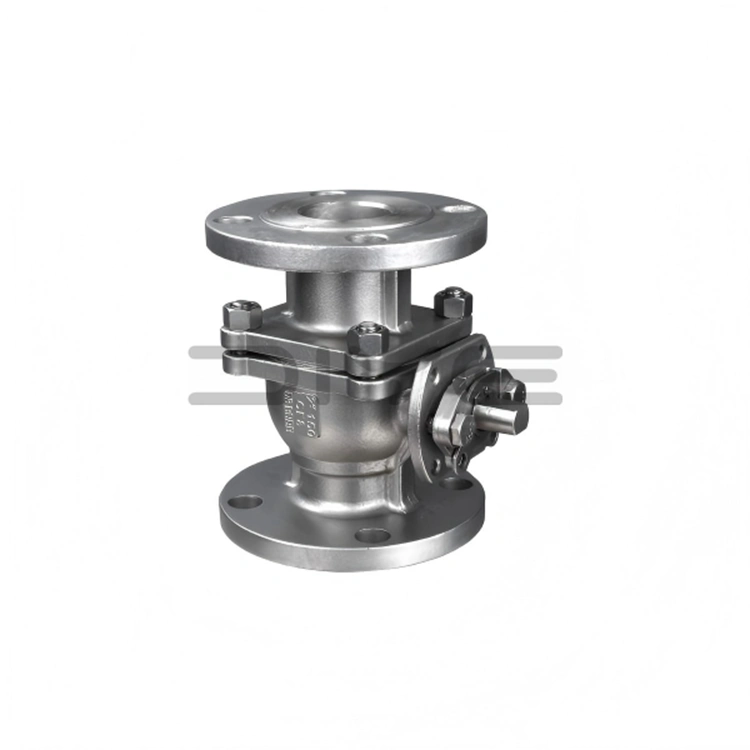

API Floating Ball Valve

1. The valve body of API Floating Ball Valve is processed by CNC lathes and milling machines to ensure structural dimensional accuracy and fit. The ball is treated with high-precision grinding and polishing equipment, with surface roughness meeting high industry standards to guarantee sealing adaptability. Components such as valve seats and stuffing boxes are precision-machined according to drawings to ensure assembly compatibility.

2. API Floating Ball Valve adopt a standardized assembly process, sequentially assembling the ball, valve seat, valve stem, operating mechanism and auxiliary sealing components. Focus is placed on adjusting the fit between the spring compensation sealing structure and PTFE bearings to ensure smooth opening and closing and leak-free sealing.

3. Note: Due to the limitation of soft sealing materials, conventional API Floating Ball Valve have limited high-temperature resistance. For high-temperature working conditions, PPL sealing materials or special metal sealing structures can be selected.

Our Advantages

The core advantages of API Floating Ball Valve produced by DIYE Valve are particularly prominent: With over 10 years of export experience, we accurately meet the needs of overseas markets.

Manufactured strictly in accordance with API, ANSI, BS and other international as well as national standards, our API Floating Ball Valve undergo full-process quality control from the selection of high-quality base materials to comprehensive testing. Relying on precision CNC machining and standardized processes, we balance product sealing reliability and operational convenience, offering multiple material options such as cast steel and stainless steel, as well as customized services based on drawings.

Coupled with a complete export packaging and testing traceability system, we provide global customers with cost-effective valve products suitable for diverse working conditions.

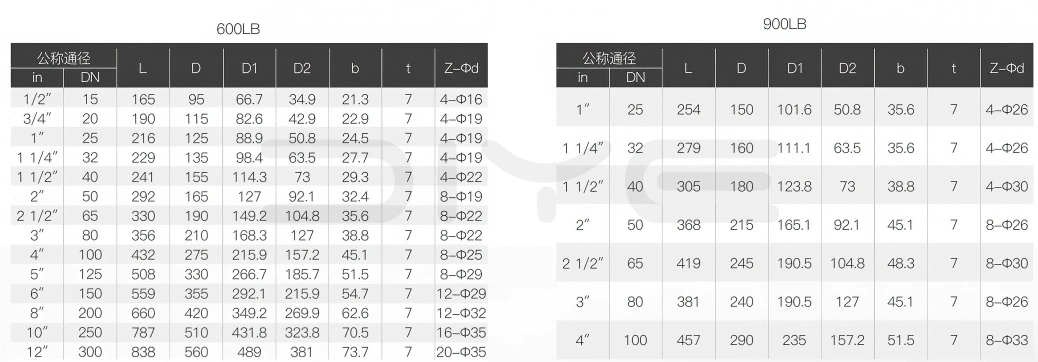

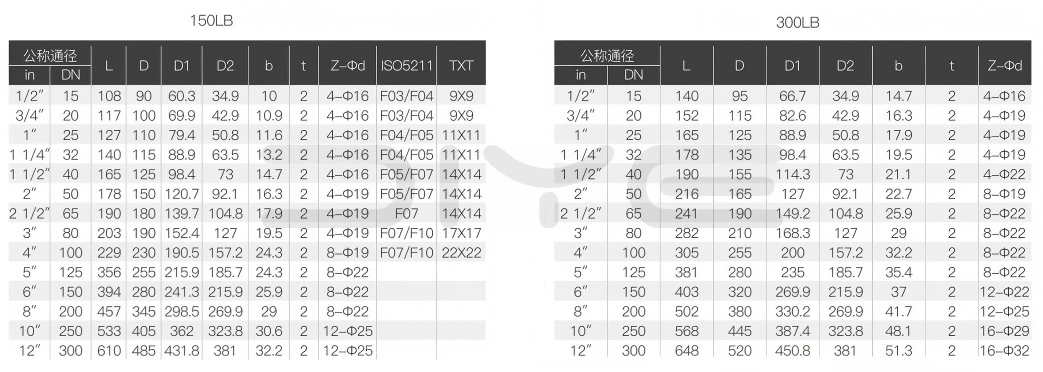

Applicable Standards

Q:Can you provide OEM service for API Floating Ball Valve

A: Yes. We have 10+ years of OEM/ODM experience for API Floating Ball Valve

For 304/316L models, we can customize according to customer drawings, including flange type (RF/RTJ), seal material, operation mode (manual/pneumatic/electric) and logo. The minimum order quantity is flexible, supporting small-batch trial orders and large-scale mass production, with a delivery time of 20 days for conventional stainless steel models.

Q: How to maintain API Floating Ball Valve to prevent corrosion?

A: First, avoid contact with carbon steel during storage and installation to prevent galvanic corrosion; second, regularly clean the valve surface and apply anti-rust oil for outdoor use; third, lubricate the valve stem with stainless steel-compatible lubricating grease to ensure smooth opening and closing; fourth, for long-term shutdown, empty the medium in the valve body to avoid corrosion of the seal and inner cavity. We provide a detailed English maintenance manual for each stainless steel valve, and offer 1-year warranty service.
