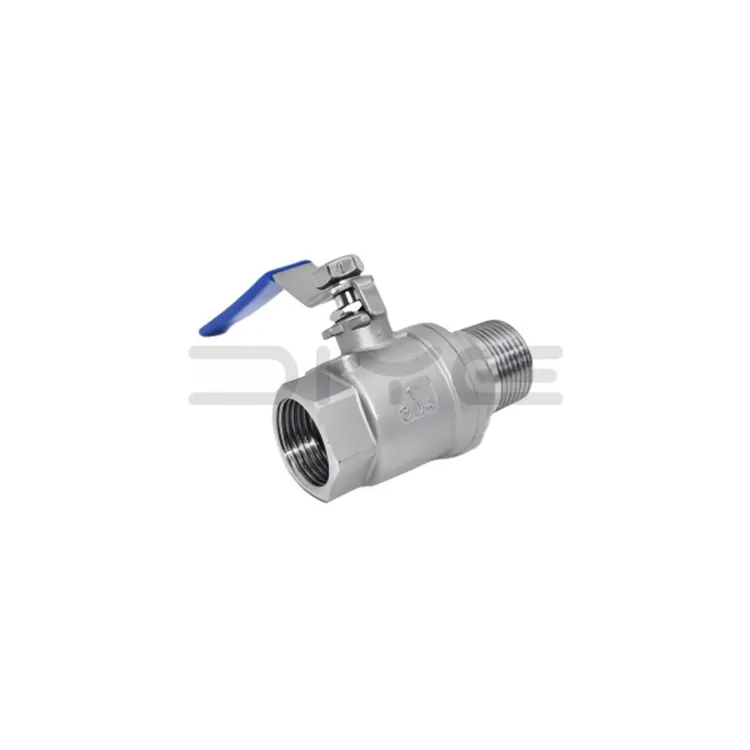

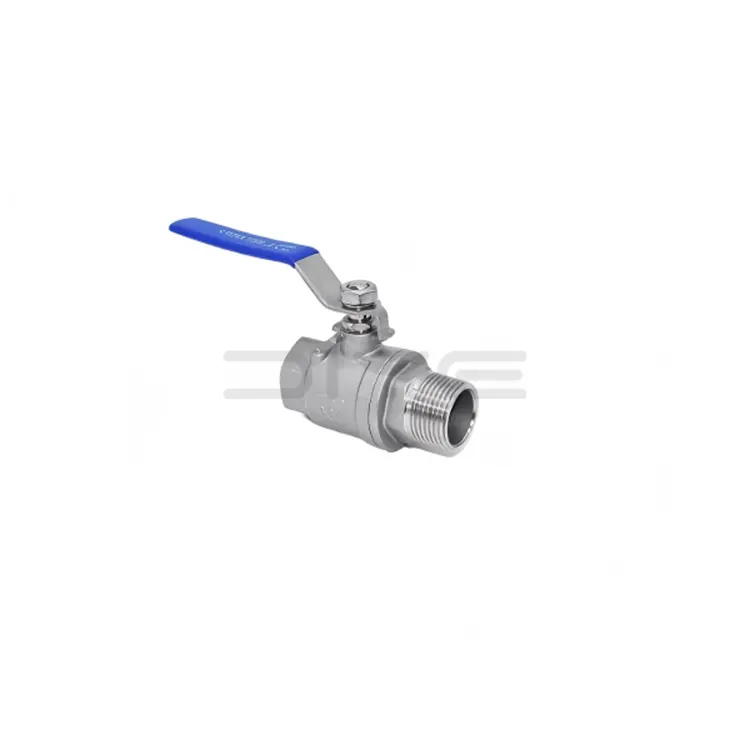

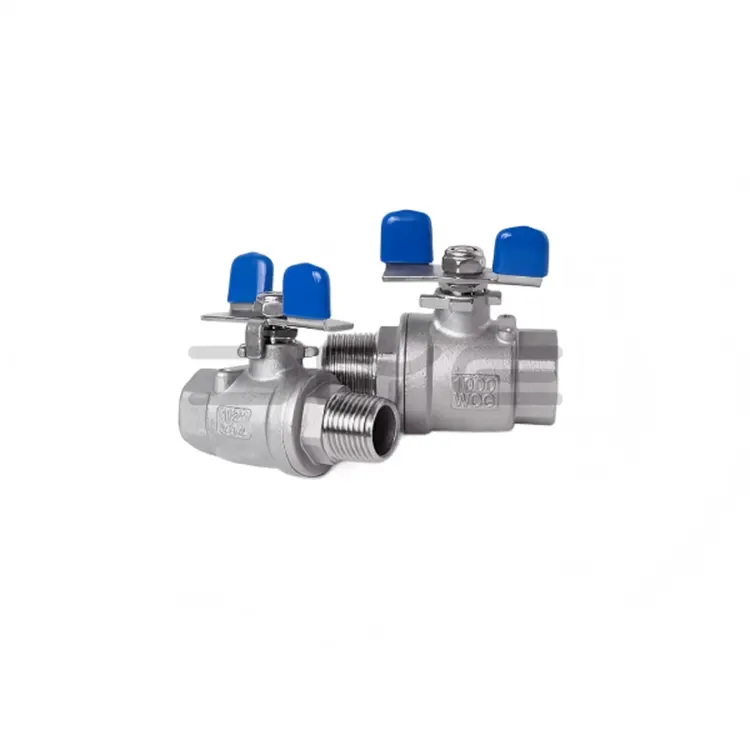

2PC Stainless Steel Ball Valve

1.The 2PC stainless steel ball valve with male and female threads is manufactured via precision casting and finish machining. It features a stable valve body structure, reliable sealing performance, and convenient installation through male-female threaded connections. This valve enables quick opening/closing and pipeline control for clean media such as water, steam, oil products, compressed air, natural gas, weak acids and weak alkalis, with the advantages of compact structure, low flow resistance and long service life.

2. Made of high-quality 304/316 stainless steel through precision casting, the 2PC stainless steel ball valve boasts corrosion resistance, high temperature resistance and strong structural strength. The valve body and ball core are precisely processed with smooth and polished surfaces. Paired with high-performance sealing elements including PTFE, PPL or fluororubber, it achieves reliable two-way sealing, zero leakage and effortless operation. Featuring excellent wear resistance and long durability, the valve is stably applicable for on-off control of pipelines conveying various media such as water, oil, gas, steam, weak acids and weak alkalis.

About US

1.DIYE VALVE adheres to strict quality control standards, adopting high-quality stainless steel raw materials and precision manufacturing processes. Each 2PC stainless steel male-female thread ball valve undergoes full-process pressure and sealing testing to ensure strong sealing performance, durable stability and long-term reliability.

2. For the full range of ball valves, we can flexibly adjust various parameters to provide one-stop customization solutions. Whether it is thread standards (NPT, BSP, G, BSPT, etc.), pressure ratings, material options (304/316/316L stainless steel), sealing materials, as well as non-standard sizes, special ports, high-platform modification, and appearance printing & logo customization, all demands can be fully met.

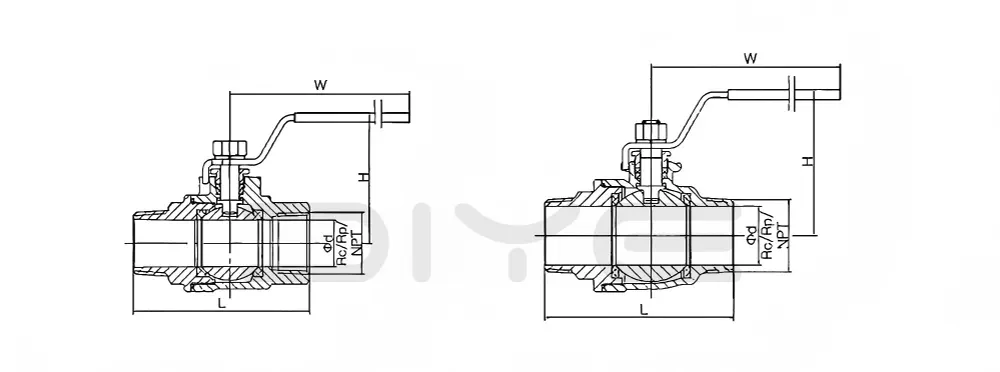

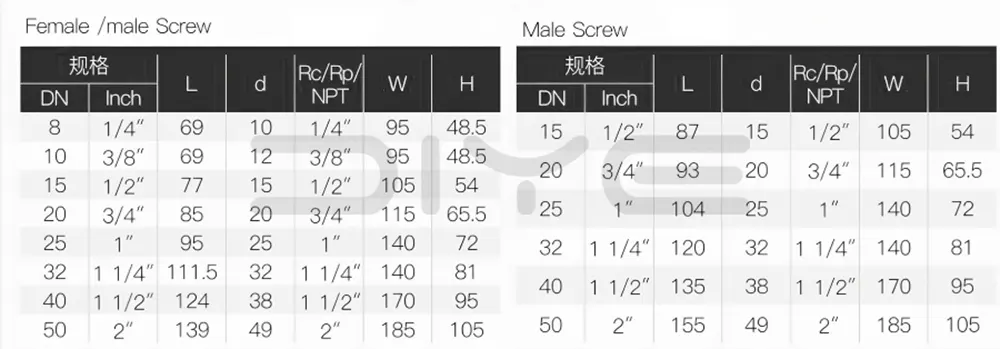

Technical Specifications

Customization Service

We offer flexible parameter adjustment for the full range of ball valve products. Whether it involves thread standards (NPT, BSP, G, BSPT, etc.), pressure ratings, material options (304/316/316L stainless steel), sealing materials, as well as non-standard sizes, special ports, high-platform modification, and appearance printing & logo customization, all demands can be fully satisfied via our one-stop service.

FAQS

Q: What are the advantages of stainless steel ball valves with male and female threads?

A: Designed with one female thread end and one male thread end, these valves can be directly connected to pipelines, valves, filters, instruments and other equipment. They feature flexible installation without the need for conversion adapters, as well as convenient disassembly and assembly.

Q: What is the pressure rating of the 2PC stainless steel ball valve with male and female threads?

A: The conventional pressure rating is 1000PSI (WOG), equivalent to PN63, which is suitable for the pressure requirements of most industrial and civil pipelines.

Q: How long is the warranty period for the 2PC stainless steel ball valve with male and female threads?

A: Under normal operating conditions, the warranty period is12 to 18 months.
