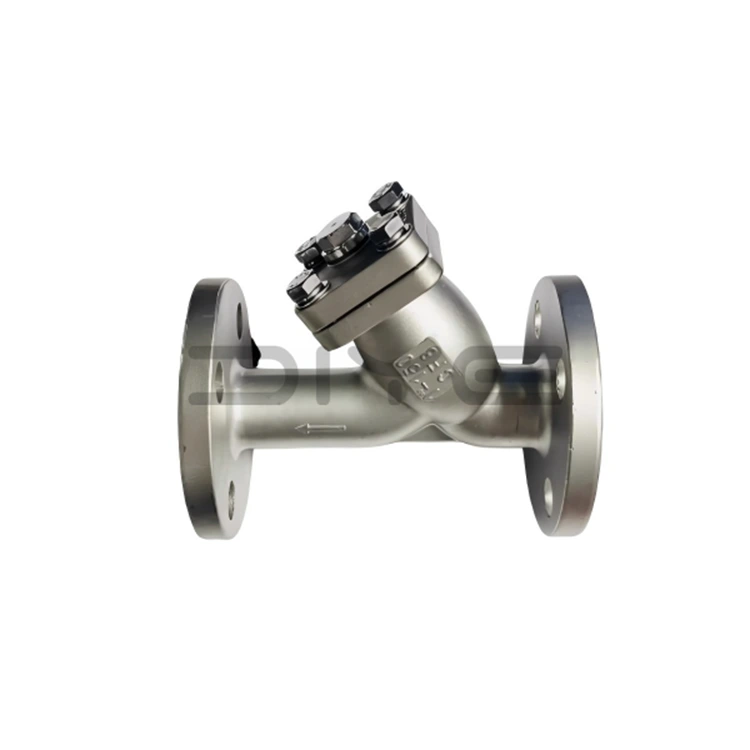

Stainless Steel ANSI 150LB Flanged Y Strainer for Reliable Pipeline Filtration

In industrial piping systems, protecting downstream valves, pumps, meters, and other equipment from unwanted solid particles is an important part of maintaining stable operation. A Y Strainer provides a simple and effective mechanical filtration solution by removing debris from process media before it reaches sensitive equipment.

The Stainless Steel ANSI 150LB Flanged Y Strainer from DIYE is designed for industrial pipeline applications where corrosion resistance, reliable filtration, and convenient maintenance are required. With a stainless steel body and ANSI 150LB flanged connection, it provides a practical solution for protecting piping and process equipment in a wide range of fluid handling systems.

What Is a Flanged Y Strainer?

A Y strainer is an in-line filtration device with a characteristic Y-shaped body. It uses a removable perforated or mesh screen to capture suspended solids and mechanical impurities from flowing media.

Unlike temporary filtration arrangements, a properly selected pipeline strainer can remain installed as part of the permanent piping system. When the filter screen accumulates debris, maintenance personnel can remove the strainer cover and clean or replace the screen without replacing the entire valve or piping component.

This makes the Y strainer particularly useful upstream of equipment that may be affected by particles, including control valves, pumps, flow meters, heat exchangers, and other precision components.

Why Choose Stainless Steel for a Y Strainer?

Material selection is an important consideration when choosing a pipeline strainer. Stainless steel is widely used in industrial fluid handling applications because of its corrosion resistance and mechanical durability.

The DIYE Stainless Steel Y Strainer is suitable for applications where the piping system requires a more corrosion-resistant material than standard carbon steel options.

Key benefits of a stainless steel Y strainer include:

• Good corrosion resistance for demanding fluid environments
• Strong and durable construction for industrial piping systems
• Suitable for a wide range of liquid and gas applications, subject to media compatibility
• Easy access to the internal filter screen for cleaning and maintenance
• Suitable for integration into flanged industrial piping systems

ANSI 150LB Flanged Connection for Industrial Piping

The connection method is another important factor when selecting a pipeline strainer. The ANSI 150LB flanged design allows the strainer to be integrated into compatible flanged piping systems.

Compared with threaded connections, flanged installation is commonly preferred for larger industrial pipelines or applications where regular equipment inspection and maintenance may be required. Bolted flange connections also allow the strainer to be removed from the pipeline when the internal screen needs to be inspected or serviced.

When selecting a flanged Y strainer, engineers should confirm the required nominal size, pressure class, flange standard, face-to-face dimensions, gasket requirements, and compatibility with the existing piping system.

How Does a Y Strainer Protect Downstream Equipment?

During normal operation, process fluid enters the Y strainer and passes through the internal filter screen. Solid particles larger than the selected screen opening are retained inside the strainer chamber, while the filtered fluid continues downstream.

The filtration process can help reduce the risk of particles entering sensitive equipment. This is particularly useful when the downstream system contains components with narrow passages, moving parts, or precision sealing surfaces.

Typical contaminants that may be captured include:

• Pipe scale
• Rust particles
• Welding debris
• Sand and other solid particles
• Foreign matter introduced during installation or maintenance

The actual filtration performance depends on the selected screen material, mesh or perforation size, fluid characteristics, flow rate, and operating conditions.

Easy Maintenance with Removable Filter Screen

One of the main advantages of a Y strainer is its relatively simple maintenance structure. As particles accumulate on the filter screen, the pressure drop across the strainer may increase. Regular inspection helps determine when cleaning or screen replacement is required.

The strainer cover can be opened during scheduled maintenance, allowing personnel to remove the internal screen, clean accumulated debris, inspect the component, and reinstall or replace the screen as necessary.

For industrial users, this straightforward maintenance process can help reduce unnecessary downtime and keep the filtration system operating effectively.

Applications of Stainless Steel Flanged Y Strainer

The DIYE Stainless Steel ANSI 150LB Flanged Y Strainer can be used in various industrial fluid handling systems, depending on the selected material, pressure rating, temperature range, and media compatibility.

Common applications include:

• Water treatment and water supply systems
• Industrial process piping
• Chemical processing systems
• Petrochemical and oil & gas applications
• HVAC and cooling water systems
• Steam and utility piping systems
• Pump inlet protection
• Industrial equipment protection

For specific applications, users should confirm the process medium and operating conditions with DIYE before selecting the appropriate strainer configuration.

Key Factors When Selecting a Y Strainer

Choosing the right Y strainer requires more than simply matching the pipe size. Engineering and purchasing teams should consider several factors before placing an order.

DIYE: Industrial Valve and Pipeline Component Supplier

DIYE focuses on the development and manufacturing of industrial valves and fluid control components for different piping applications. By combining appropriate materials, connection configurations, and manufacturing processes, DIYE provides valve and pipeline solutions for industrial customers and engineering projects.

The Stainless Steel ANSI 150LB Flanged Y Strainer is one of the solutions available for customers looking to protect downstream equipment while maintaining a practical and serviceable pipeline filtration system.

For OEM projects, engineering applications, and industrial valve procurement, DIYE can provide product information and technical support based on pipeline size, pressure rating, connection standard, process medium, temperature, and other operating requirements.

Reliable Pipeline Filtration Starts with the Right Y Strainer

A properly selected Y strainer can play an important role in protecting downstream equipment and maintaining the cleanliness of an industrial piping system. The combination of stainless steel construction, ANSI 150LB flanged connection, and a removable filtration screen makes the DIYE Y strainer a practical option for a variety of industrial applications.

Looking for a stainless steel Y strainer for your industrial piping project? Contact DIYE with your pipe size, pressure rating, connection standard, and application requirements for a suitable configuration.
