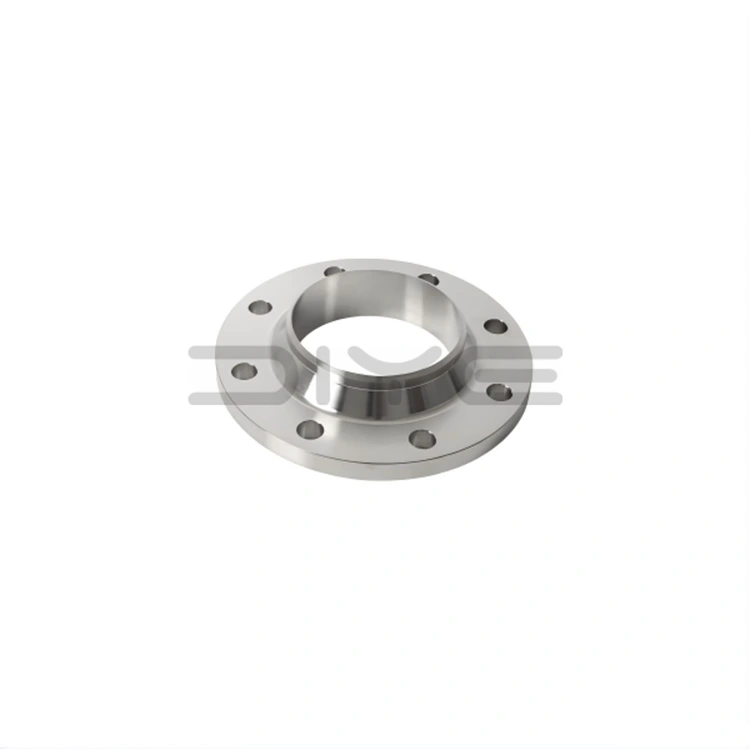

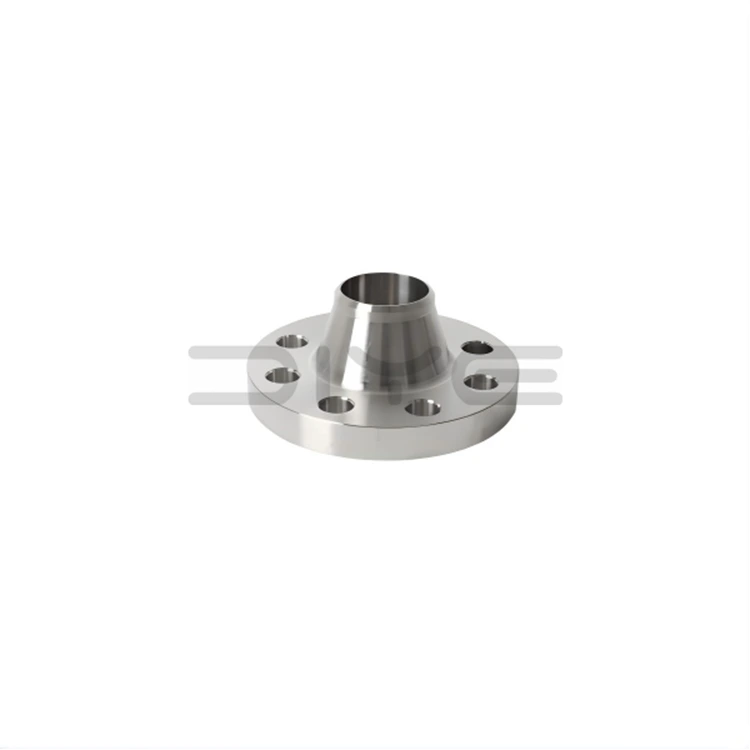

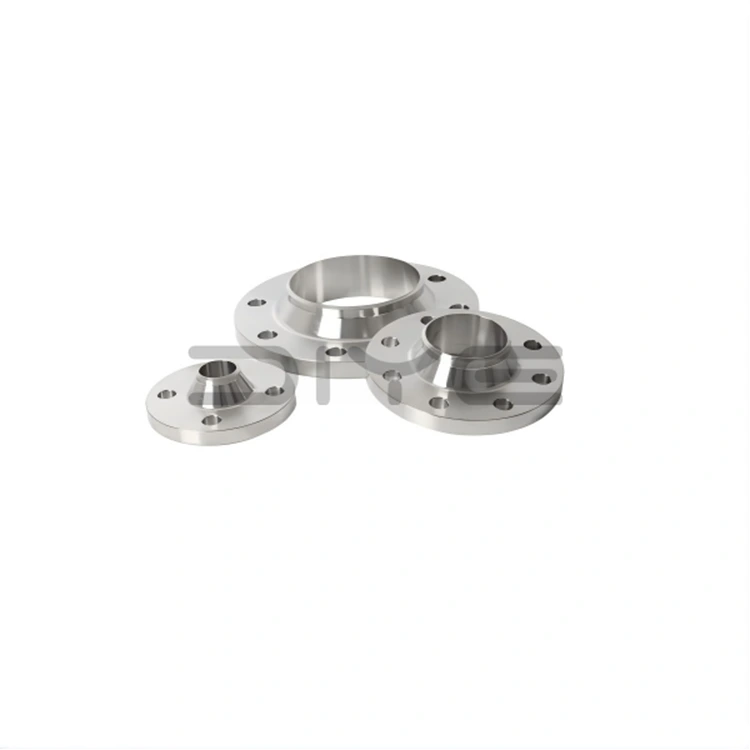

ANSI B16.5 Weld Neck Flange

Every DIYE VALVE ANSI B16.5 Weld Neck Flange undergoes rigorous testing, including dimensional inspection, material verification, ultrasonic testing, and pressure testing, ensuring full compliance with ANSI B16.5 and international quality standards. Our vertically integrated production process, from raw materials to finished products, guarantees consistent product quality, traceability, and reliable performance in various critical applications.

Design and Structure

1. Standards Compliance: Fully compliant with ANSI/ASME B16.5 standards, covering pressure ratings from 150 to 2500 and nominal diameters (NPS) from 1/2 inch to 24 inches, with support for large-diameter custom designs.

2. Integral Forged Construction: ANSI B16.5 Weld Neck Flanges feature a long, tapered, high-neck design with a smooth transition arc, forged from high-quality American standard materials, including A105 carbon steel, F304/F316L stainless steel, and alloy steel.

3. Precision Sealing Surfaces: Standard raised face (RF), ring joint face (RJ), and face rough surface (MFM) are machined using CNC machining to ensure a tight gasket fit and leak-free performance.

4. Butt Weld Connection: Designed for full-penetration butt welding to pipelines, ensuring seamless stress transfer and eliminating stress concentration at the bottom of the hub.

Key Advantages

1. Exceptional Temperature and Pressure Resistance: Specially designed to withstand severe thermal cycling, high pressure, vibration, and thermal creep, suitable for the most demanding working environments.

2. Permanently Stable Sealing: Robust welded joints and precision-machined sealing surfaces provide a permanent, maintenance-free seal, crucial for hazardous and toxic media environments.

3. Superior Structural Rigidity: The ANSI B16.5 Weld Neck Flanges high-neck design provides excellent rigidity, resistance to deformation, and fatigue resistance, ensuring long service life under cyclic loading.

4. Inspectable and Reliable: Full penetration welds allow for non-destructive testing (NDT), ensuring product quality meets stringent industry standards.

5. Comprehensive Specifications and Stable Supply: In-house production ensures ample inventory, timely delivery, and the ability to provide cost-effective products to global customers.

Industrial Applications

DIYE VALVE ANSI B16.5 Weld Neck Flanges are the preferred standard product for the following key application scenarios:

1. Oil and Gas Industry: Pipelines, refineries, and offshore platforms.

2. Chemical Industry: High-temperature, high-pressure, and corrosive media systems.

3. Power Generation Industry: Steam pipelines, boiler loops, and power plant auxiliary systems.

4. Pressure Vessels: Storage tanks, reactors, and process equipment requiring the highest integrity.

5. High-Integrity Piping: Systems for transporting flammable, explosive, and highly toxic fluids.

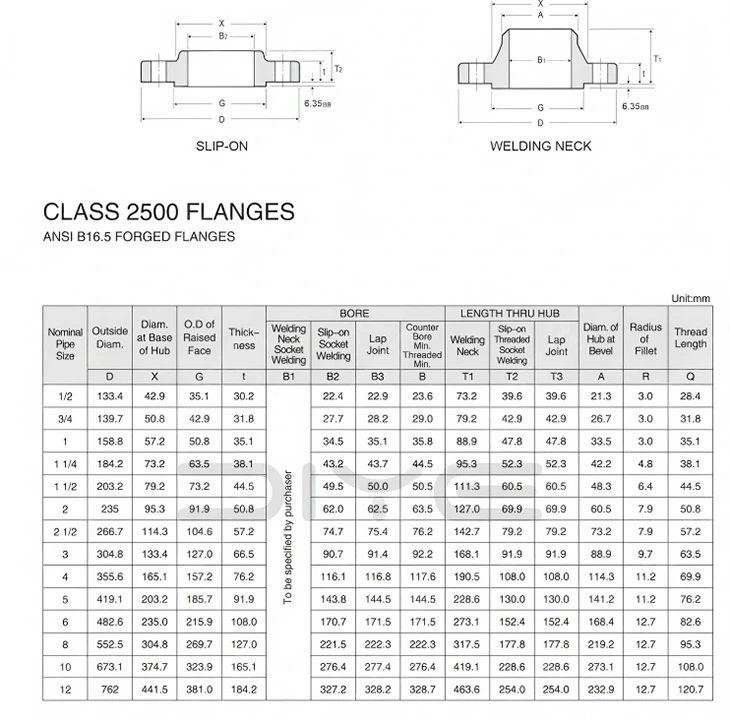

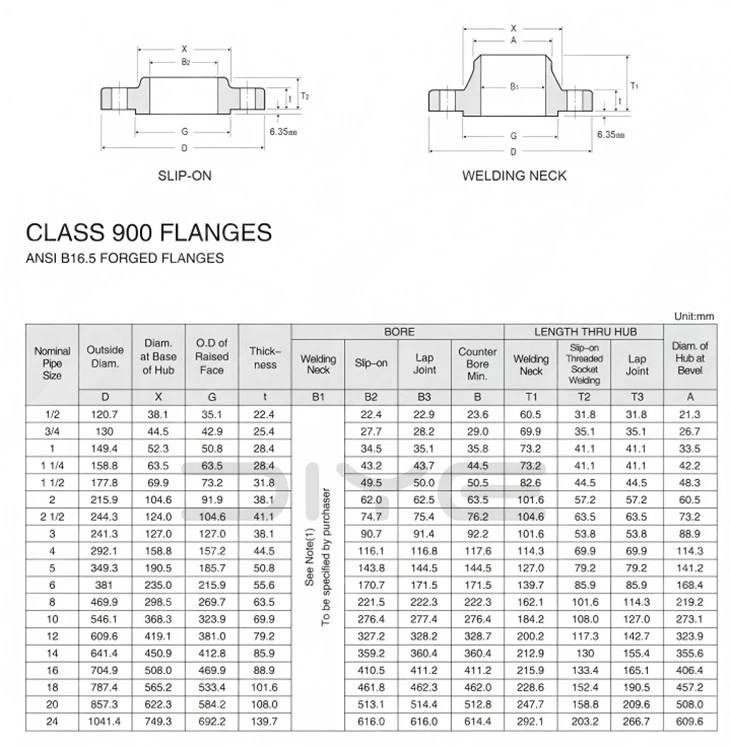

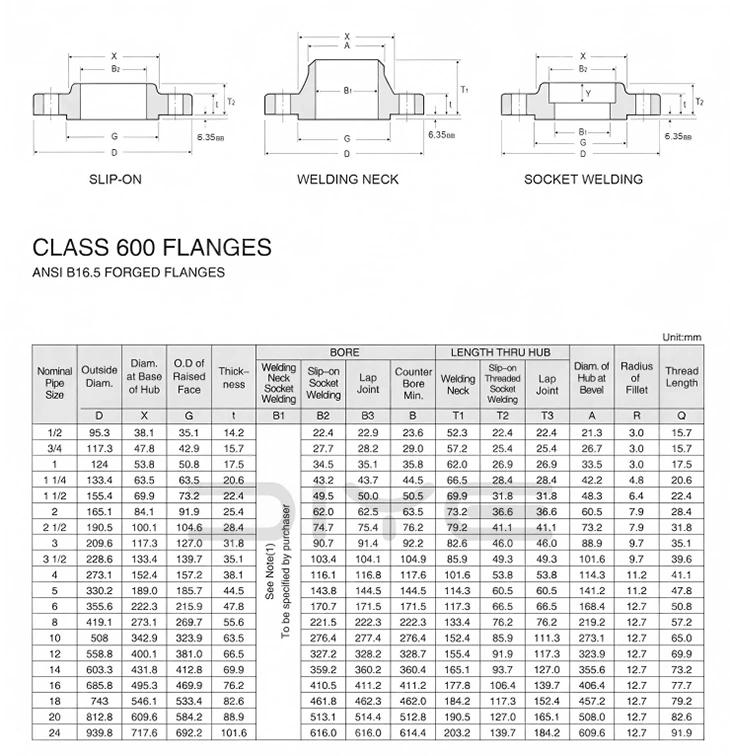

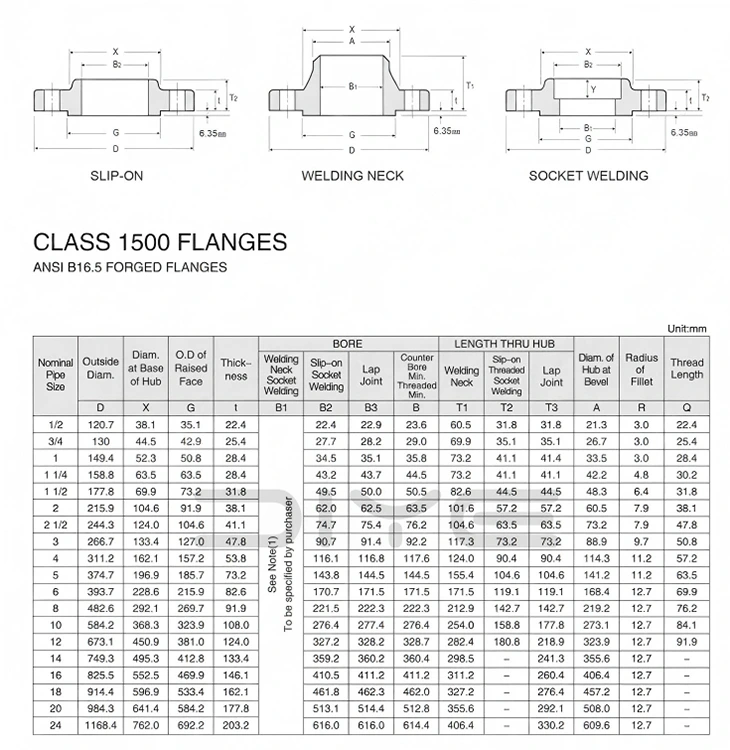

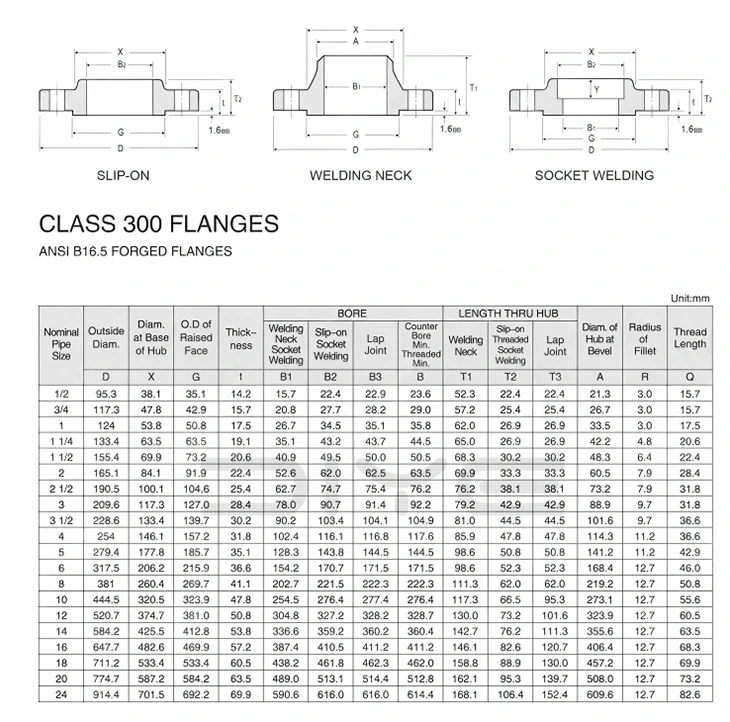

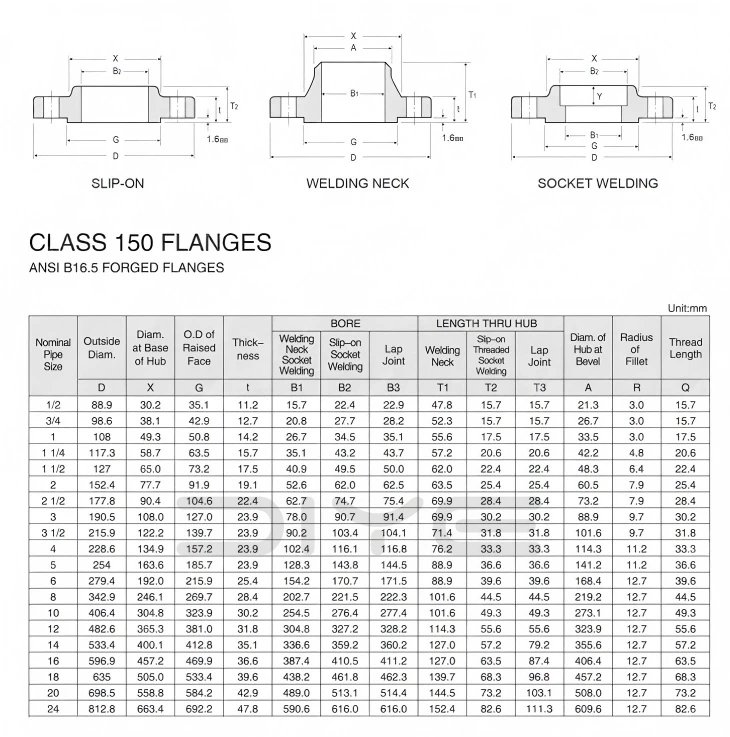

Technical Parameters

FAQ

Q: Can the American standard flange Class and the Chinese standard PN be interchanged?

A: They cannot be directly interchanged. Class refers to the American standard pressure rating, which is different from the PN nominal pressure system. The outer diameter, bolt holes, and sealing surface dimensions do not match, and mixing and connecting them is strictly prohibited.

Q: What is NPS in American standard flanges? How does it correspond to DN?

A: NPS refers to the American standard nominal diameter (inches). For example, NPS2 = DN50. This is for reference only. During installation and ordering, the NPS + Class must be followed strictly, and DN alone cannot be relied upon.

Q: What are the differences between WN and SO flanges?

A: WN neck-weld flange: Long neck forging, full penetration welding, resistant to high temperature and high pressure, resistant to vibration, used for main pipelines, pressure vessels, flammable and explosive media;

SO neckless butt-weld flange: Short neck plug welding, simple installation, low cost, only suitable for medium and low pressure, normal temperature, ordinary process pipelines.

Q: What kind of steel pipe should be used with American standard flanges?

A: Carbon steel uses ASTM A106/A53 American standard seamless pipe; Stainless steel uses ASTM A312 series pipes.
