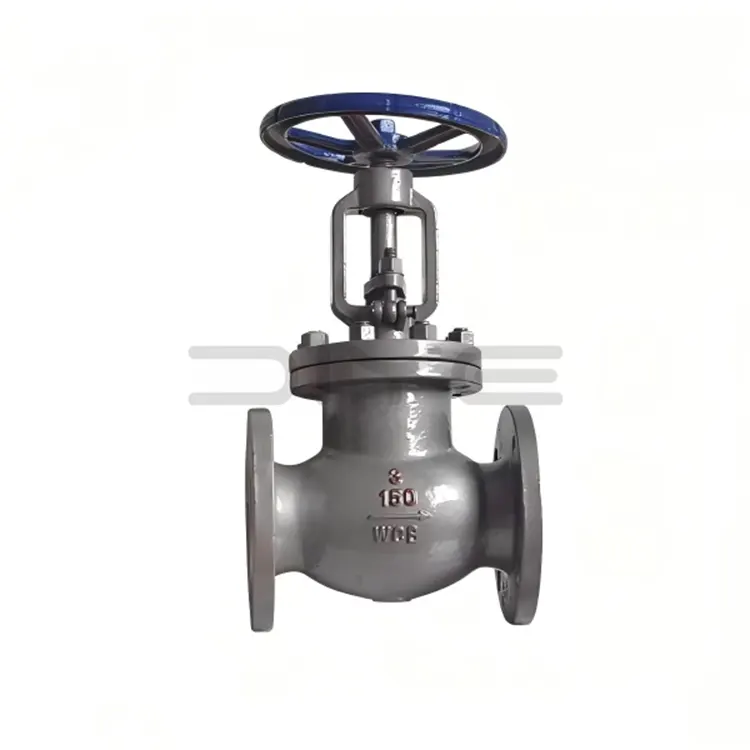

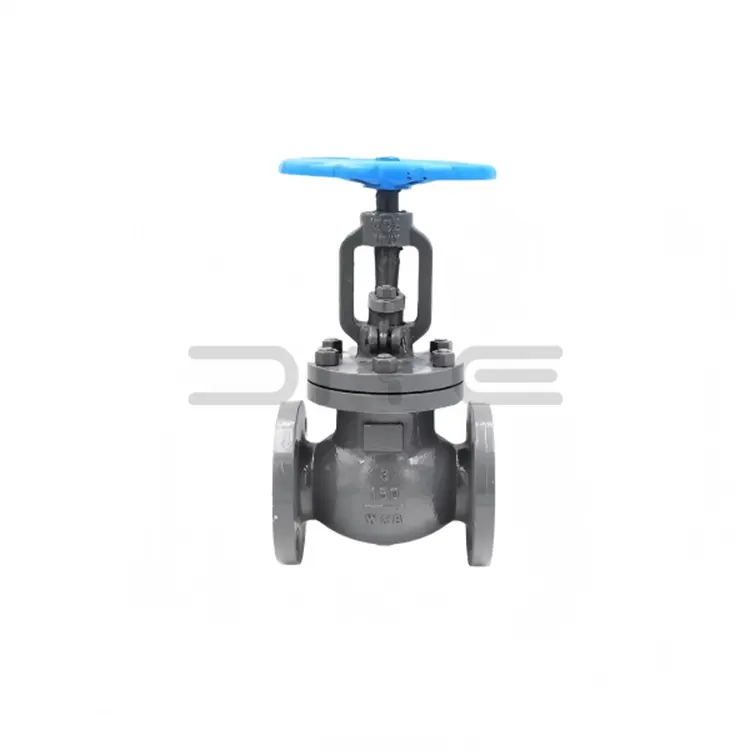

Cast Steel 150LB Flanged Globe Valve

1.The body of the Cast Steel 150LB Flanged Globe Valve is precision-cast from WCB carbon steel, boasting excellent mechanical strength, impact resistance and weldability. It can withstand medium-temperature and medium-pressure working conditions, and is suitable for the conveyance of non-corrosive or weakly corrosive media such as water, steam, oil products and natural gas. Our China-manufactured carbon steel ANSI globe valves have a recommended operating temperature range of -29℃ to 425℃, with pressure classes covering Class 150 to Class 600.

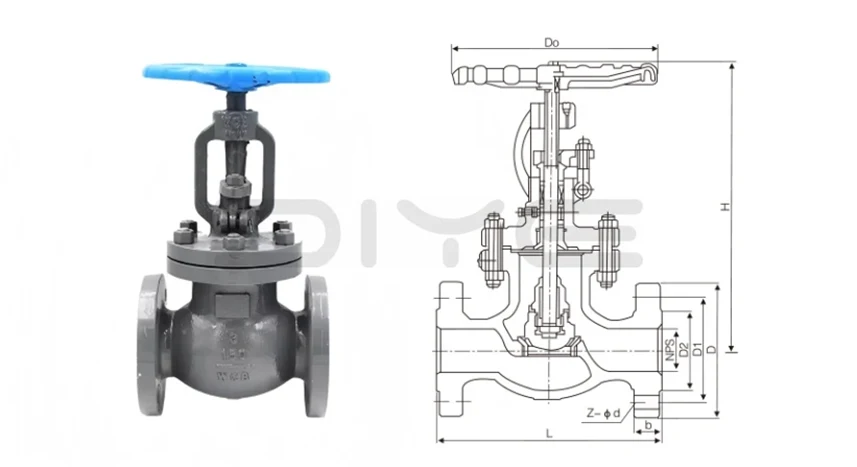

2.Compared with Cast Steel 150LB Flanged Globe Valve, carbon steel ANSI globe valves feature lower material costs and the advantage of large-scale production, helping customers save procurement costs. Adopting a mid-flange bolted connection structure, the valves facilitate the disassembly of the bonnet for replacing vulnerable parts such as seals and discs, greatly shortening maintenance downtime and reducing subsequent operation and maintenance costs.

3.Cast Steel 150LB Flanged Globe Valve are widely used in industries such as petroleum refining, thermal power generation, urban heating, water supply and drainage. Suitable for on-off control and precise throttling of media in main pipelines, they are the preferred valves for general fluid conveyance scenarios in industrial systems.

Our Advantages

The Cast Steel 150LB Flanged Globe Valve manufactured by DIYE VALVE feature strict quality control, reliable sealing and long service life; large-scale production enables cost-effective pricing, combining the advantages of quality and cost; we provide a 1-year warranty and professional after-sales service, ensuring a worry-free experience from your purchase of the carbon steel ANSI globe valves to on-site installation.

Q:What are the core advantages of carbon steel flange globe valve compared with stainless steel and ball valve?

A: The 150LB carbon steel (WCB) flange globe valve is cost-effective and has excellent mechanical strength, which is its biggest advantage. Compared with stainless steel valves, it is more economical for non-corrosive media, suitable for large-scale industrial projects; compared with ball valves, it excels in precise throttling and flow control, with better sealing tightness under medium and low pressure. It is widely used in oil pipelines, power plant steam systems and general industrial fluid control where corrosion is not a concern.
