Forged Steel Flange Globe Valves

1.This forged steel flange globe valve adopts a classic globe valve opening and closing structure, which regulates medium on-off and flow rate through the lifting of the valve disc. The sealing surfaces are processed by precision grinding, featuring high fitting tightness and excellent sealing performance, which can effectively eliminate hidden dangers of internal leakage, realizing strict shut-off and precise regulation of the pipeline. It operates smoothly with effortless opening and closing, making it suitable for scenarios requiring accurate fluid flow control and medium backflow prevention.

2.With core advantages of high-pressure durability, reliable sealing and long service life, forged steel flange globe valves are widely used in high-pressure and high-temperature industrial fields, including petrochemical engineering, natural gas transmission, power plants, oil refining, thermal pipe networks, pressure vessels and more.

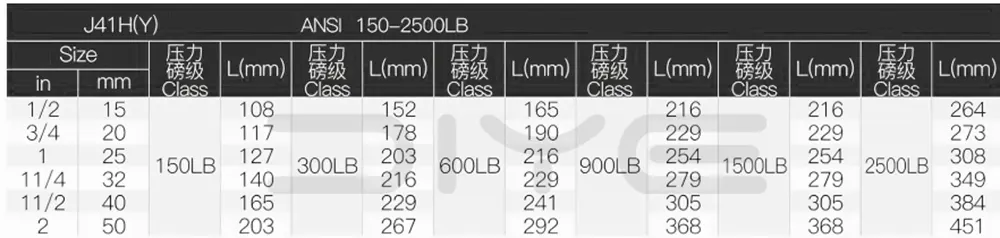

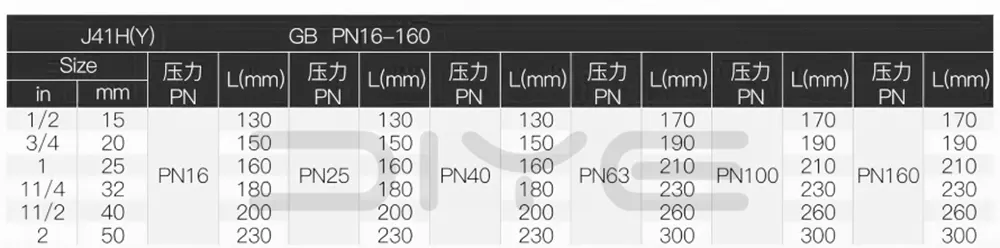

Technical Parameters

About us

1.As a professional wholesaler of exported forged steel flange globe valves, we make this product highly competitive in the global market with outstanding price advantages, while balancing premium quality and cost-effectiveness to help overseas customers reduce procurement costs and improve project profit margins.

2.We support the quick provision of detailed specification price lists and export quotations for forged steel flange globe valves as required, and can offer accurate quotes based on customized needs for valve size, pressure rating and materials, with more favorable pricing for bulk purchases. In addition, we are well familiar with export customs clearance and logistics procedures in many countries around the world, ensuring efficient full-process communication and providing overseas customers with a hassle-free, economical and stable valve procurement solution.

FAQS

Q: What are the nominal pressure and temperature adaptation ranges of forged steel flange globe valves?

A: Conventional pressure ratings are PN16-PN100 and Class 150-Class 600, suitable for medium and high-pressure pipelines; the standard temperature range is -20℃ to 425℃. Customization for higher or lower temperature working conditions is available based on sealing component adjustments.

Q: What is the difference between stainless steel forged globe valves and ordinary cast stainless steel globe valves?

A: The core difference lies in manufacturing technology. Our valves adopt an integral forging process, resulting in a dense valve body structure without sand holes or air pores, with higher pressure and impact resistance, ideal for medium and high-pressure, high-temperature harsh working conditions. Cast valves are prone to structural defects and are mostly used for conventional low-pressure scenarios. Forged valves feature far superior structural strength and service life compared to cast ones.

Q: Can forged steel flange globe valves regulate flow, and what is the core difference between them and ball valves?

A: Yes. This valve realizes precise medium flow regulation through the vertical lifting of the valve disc, with tight sealing performance, making it suitable for both pipeline shut-off and flow adjustment. Ball valves are only designed for quick on-off operation, with much lower flow regulation accuracy than globe valves, so the two are suitable for different working conditions respectively.
