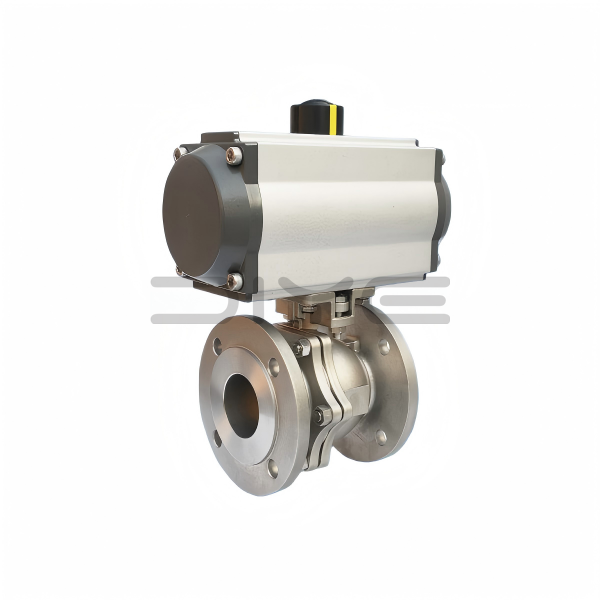

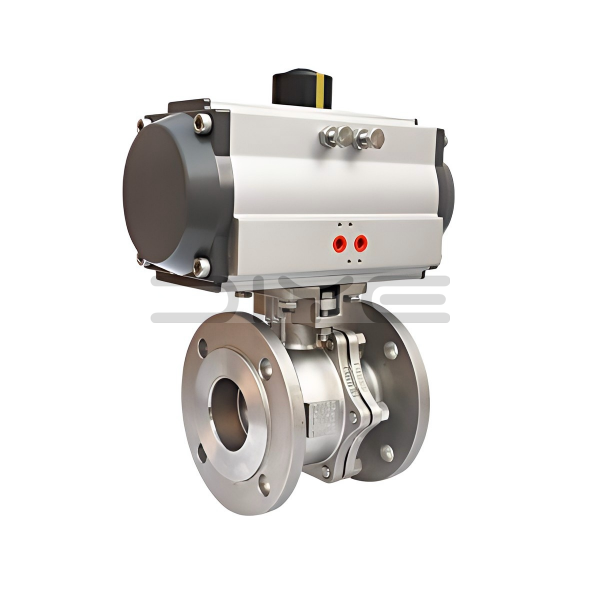

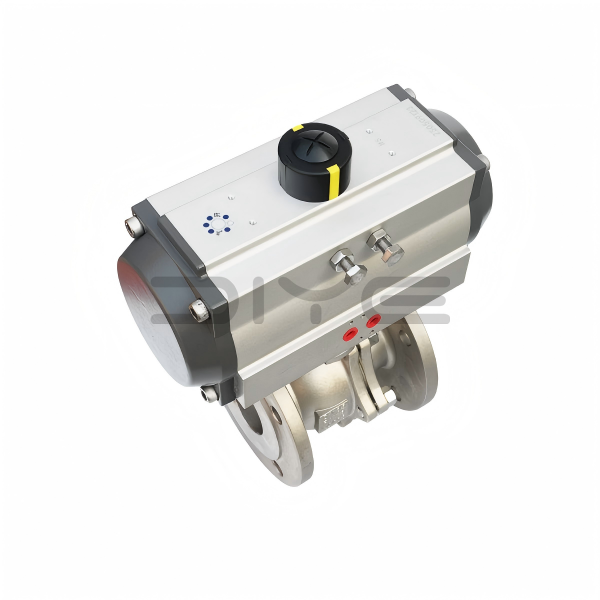

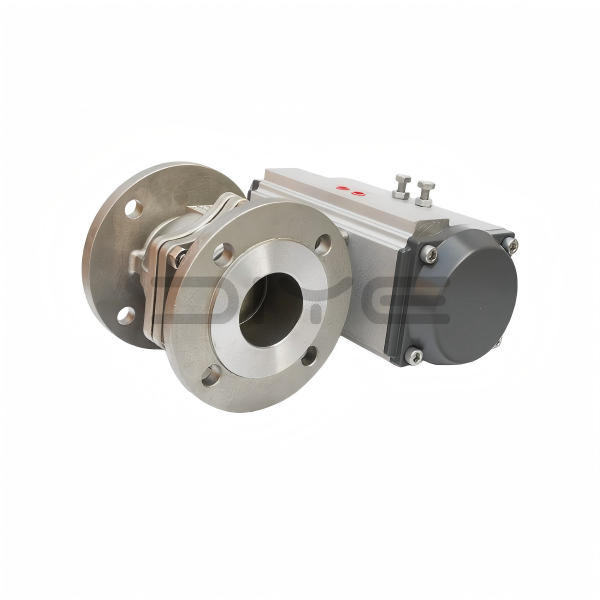

Pneumatic Actuated Stainless Steel Flanged PN16 Ball Valve

Product Introduction

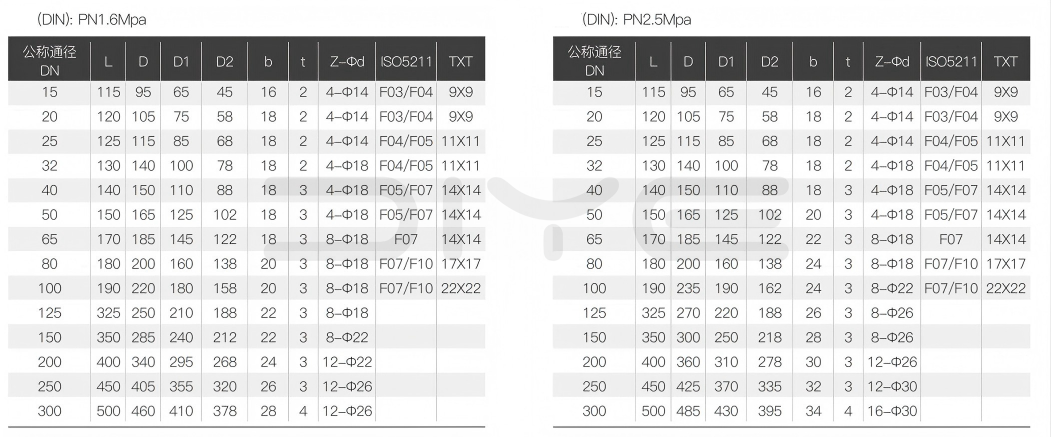

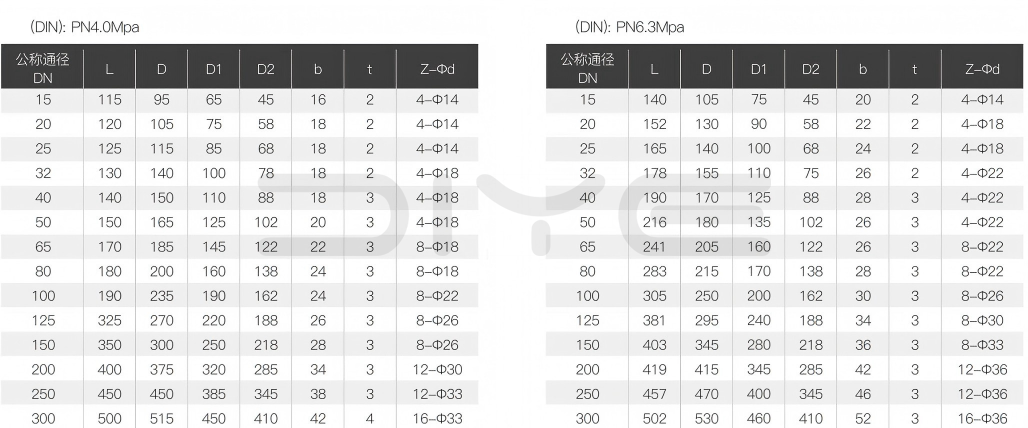

1.Our pneumatic stainless steel flange ball valves come with a comprehensive size range covering DN15 to DN400, flexibly matching pipeline systems with different flow rate demands. The standard pressure rating ranges from PN1.6 to 6.4MPa, with customized models capable of withstanding higher pressure to suit medium and high-pressure pipeline operations. The operating temperature varies by sealing material. The standard PTFE soft seal works steadily within -40℃ to 180℃, while optional PPL seal and metal hard seal extend the temperature range from -40℃ to 350℃, enabling stable operation in both ultra-low and high-temperature extreme working conditions.

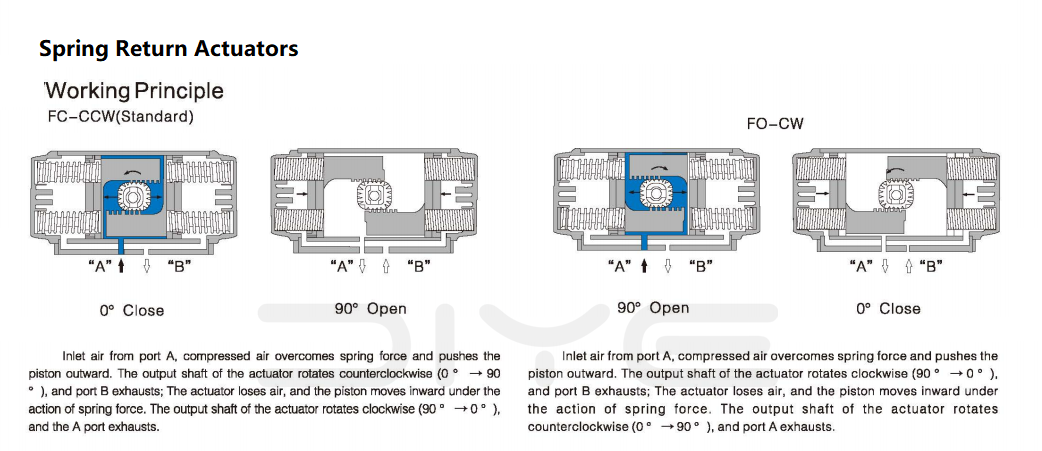

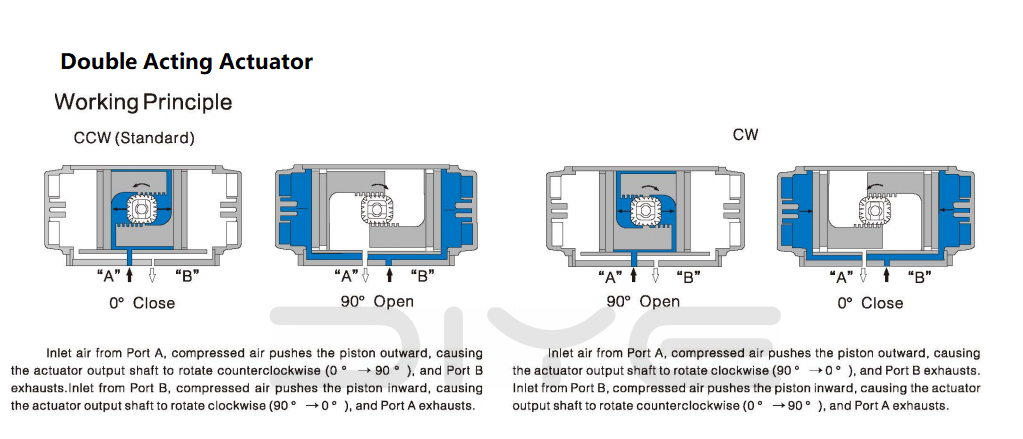

2.We offer fully customizable pneumatic actuators in two core types to accommodate diversified industrial control needs: single-acting and double-acting. Single-acting actuators adopt a spring return structure. Once the compressed air supply is interrupted, the valve will automatically reset to the preset fully open or fully closed position, ensuring safe and stable operation of pipeline systems. This type is ideal for scenarios with flammable, explosive, toxic and harmful media. In contrast, double-acting actuators rely entirely on compressed air for opening and closing without spring reset function. They deliver faster response speed, simpler structure and more stable operation for conventional fluid control applications. Equipped with auxiliary components such as solenoid valves and positioners, double-acting actuators can realize precise flow regulation and remote intelligent control.

3.Compared with traditional manual flange ball valves, our pneumatic stainless steel flange ball valves stand out with high automation, fast opening and closing speed and low maintenance requirements. They effectively eliminate manual operation errors and greatly improve overall production efficiency. Benefiting from premium stainless steel material, the valves possess superior anti-rust and anti-corrosion performance, adapting to harsh working environments and serving far longer than ordinary carbon steel valves. As a reliable Chinese valve exporter, all our products are manufactured in strict accordance with API, GB, ISO and other domestic and international standards. Every valve undergoes rigorous pressure and sealing tests before delivery to guarantee qualified quality and stable performance for all industrial applications.

About Us

As a professional China-based pneumatic valve manufacturer and exporter, we provide 24-hour online technical consultation and fault diagnosis services to respond promptly to after-sales requests from global customers. We maintain sufficient stock of key spare parts to resolve equipment failures rapidly and ensure continuous and stable production for clients. Meanwhile, we deliver one-stop supporting services including on-site installation guidance and regular maintenance suggestions, completely eliminating procurement and operation worries for global buyers.All our pneumatic stainless steel flange ball valves pass strict quality inspection and hold CE, ISO and other international certifications with stable and reliable quality. Adhering to the factory direct sales model, we cut off intermediate agent links to offer competitive ex-factory prices. Bulk order customers can enjoy substantial discounts, effectively reducing your overall procurement costs.

、

FAQ

Q: What are the differences between single-acting and double-acting pneumatic actuators for pneumatic stainless steel flange ball valves? How to choose the right type?

A: The core differences lie in power supply and reset function. A single-acting actuator is driven by compressed air for opening and closing, and it automatically resets to the preset fully open or fully closed state via the built-in spring when power or air supply fails. It is ideal for high-safety scenarios involving flammable, explosive, toxic and harmful media, effectively preventing medium leakage risks. In comparison, a double-acting actuator relies entirely on compressed air for full opening and closing operations without an automatic reset function. It features faster response speed and a simpler structure, making it suitable for conventional working conditions without potential safety hazards and allowing manual reset intervention. For selection, prioritize on-site safety conditions: choose single-acting actuators for high-risk working conditions, and double-acting actuators for regular fluid control scenarios.

Q: Can the response speed of pneumatic stainless steel flange ball valves be adjusted? Are they suitable for high-frequency opening and closing applications?

A: The valve response speed is adjustable by regulating the flow control valve of the pneumatic actuator, with a standard opening and closing time ranging from 0.5 to 5 seconds, which can be flexibly adjusted according to actual working conditions. These pneumatic ball valves are fully adaptable to high-frequency switching scenarios. Featuring a simple actuator structure and low wear resistance, paired with a highly durable valve body, the valves operate stably without frequent failures during long-term high-frequency cycling, perfect for high-frequency control scenarios such as assembly lines and mass production systems.

Q: Can pneumatic stainless steel flange ball valves adapt to special working conditions such as flammable, explosive and high-dust environments?

A: Yes, our valves are compatible with various harsh special working conditions. We can provide customized explosion-proof pneumatic actuators that comply with standard explosion-proof specifications, equipped with fireproof and anti-static designs to avoid spark generation during operation, which perfectly adapts to flammable and explosive working environments. In addition, the valve body protection grade can be upgraded to IP65 or higher, providing excellent dustproof and waterproof performance. It stably operates in high-dust, high-humidity and other harsh environments, meeting diverse rigorous industrial working condition requirements.
