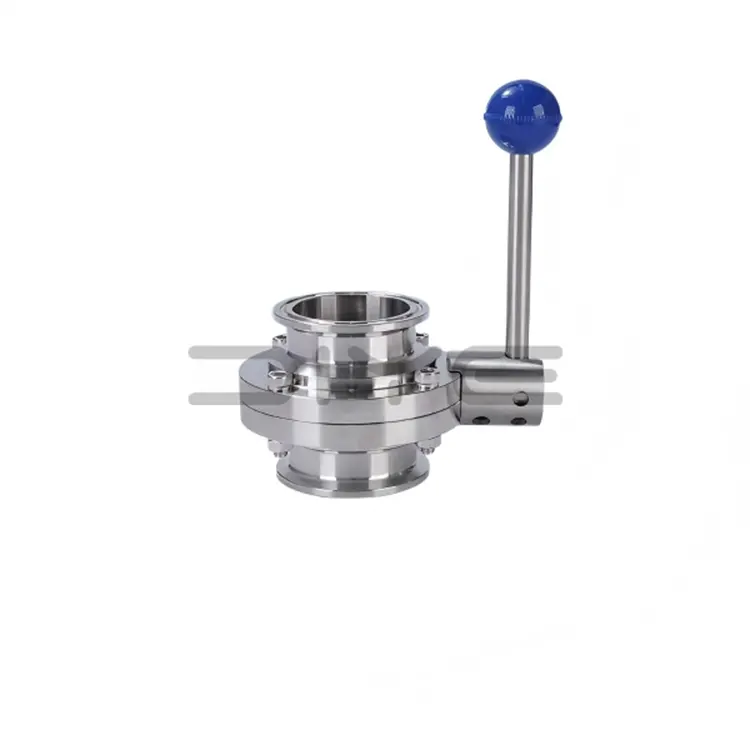

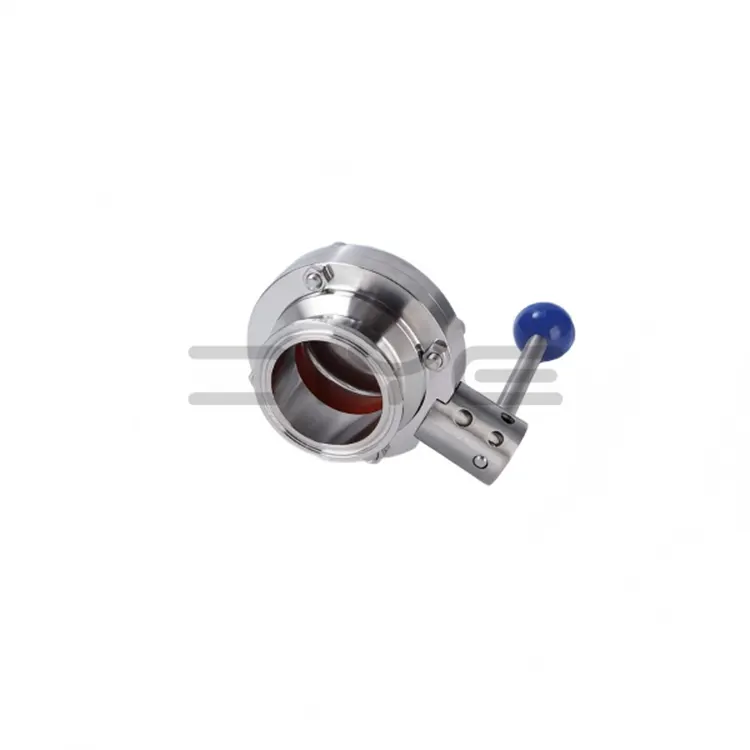

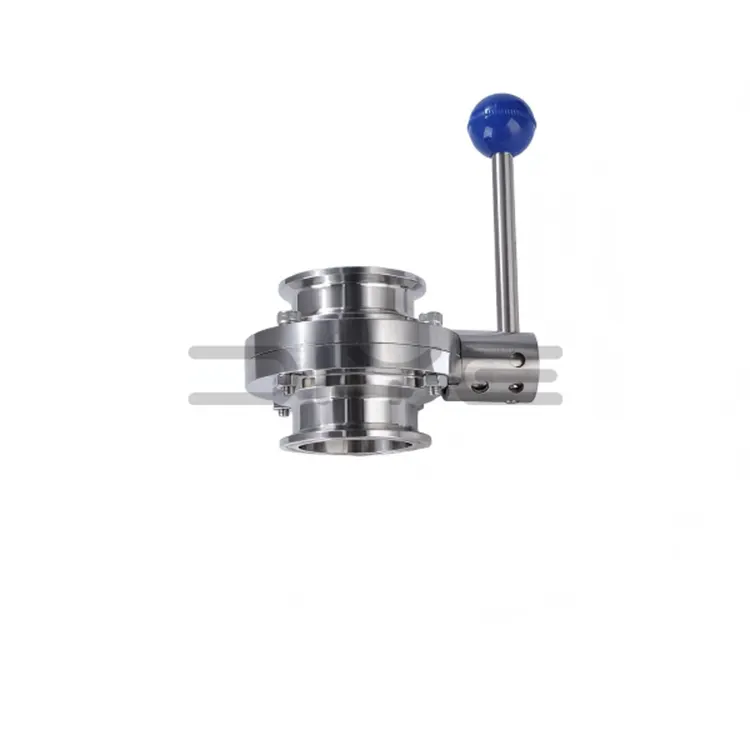

Sanitary Clamp Butterfly Valve

As a professional Sanitary Clamp Butterfly Valve manufacturer, we ensure easy opening and closing, low flow resistance, easy disassembly and cleaning, with full compliance to international hygienic certifications. The valve body flow channel is mirror-polished with Ra≤0.8μm, and Ra≤0.4μm is available for customized demands. As a reliable supplier and factory, DIYE VALVE serves as the core control component of hygienic fluid pipeline systems.

Product Introduction

1. On-Off Control Performance

Sanitary Clamp Butterfly Valves achieve full opening/closing of pipeline media rapidly via a 90° rotation of the valve disc, featuring fast opening and closing response. Suitable for the on-off control of various fluids such as drinking water, pharmaceutical liquids and milk, they ensure leak-tight sealing, eliminating medium dripping waste and pipeline contamination.

2. Stepless Flow Regulation

Eccentric and electric Sanitary Clamp Butterfly Valve enable 0°~90° stepless adjustment of the valve disc for precise control of medium flow rate. They are adapted to working conditions requiring accurate flow control such as food and beverage proportioning and pharmaceutical preparation conveying, meeting the process parameter requirements of assembly lines.

3. Streamlined Flow Channel Design

The valve body flow channel of Sanitary Clamp Butterfly Valves adopts a streamlined design with no grooves or steps. It features low flow resistance during medium circulation, reducing pipeline pressure loss. Ideal for high-flow fluid conveying scenarios, it does not affect the overall conveying efficiency of the pipeline.

4. Wide Pressure & Temperature Adaptability

Sanitary Clamp Butterfly Valves can routinely withstand pressures of PN10/PN16. The sealing parts are adapted to a temperature range of -60℃~200℃ according to their material properties, meeting the process temperature requirements of cold and hot medium conveying, high-temperature sterilization, low-temperature refrigeration and other applications. They are suitable for working conditions such as pasteurization in food and beverage industry and high-temperature sterilization in pharmaceutical industry.

About us

1. Flexible Ordering & Pricing Advantages

We support small minimum orders for Sanitary Clamp Butterfly Valves while maintaining price competitiveness, and volume purchases are eligible for tiered discounts. We also provide customized quotation for configured products, with drive modes and seal materials selectable on demand to avoid unnecessary costs.

2. High Cost-Effectiveness with Premium Quality

On the basis of high cost-effectiveness, all our Sanitary Clamp Butterfly Valves are made of food-grade 304/316L stainless steel and comply with 3A/DIN/SMS international hygienic standards, truly achieving affordable pricing without compromising on quality.

3. Professional One-Stop Foreign Trade Services

We have a dedicated foreign trade service team, which can provide multilingual product documents and quotations in English, Russian, etc. We offer accurate docking with overseas customers and international freight forwarders, follow up the entire process of booking, customs declaration and clearance, and feed back logistics information in a timely manner.

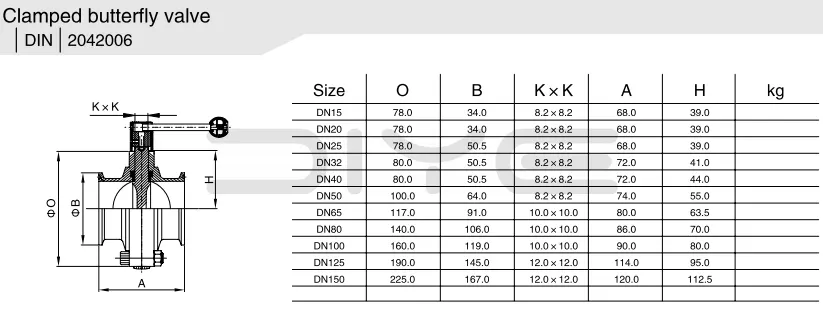

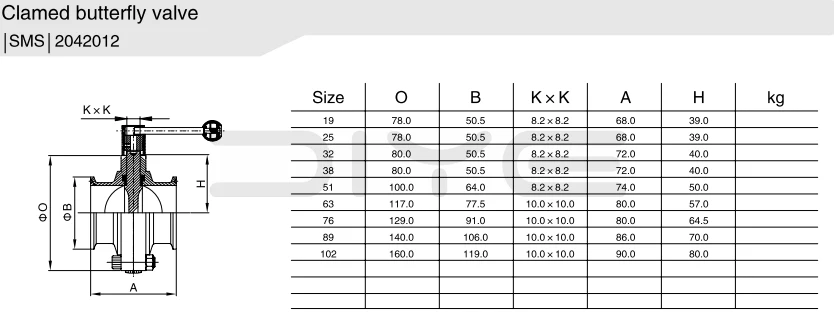

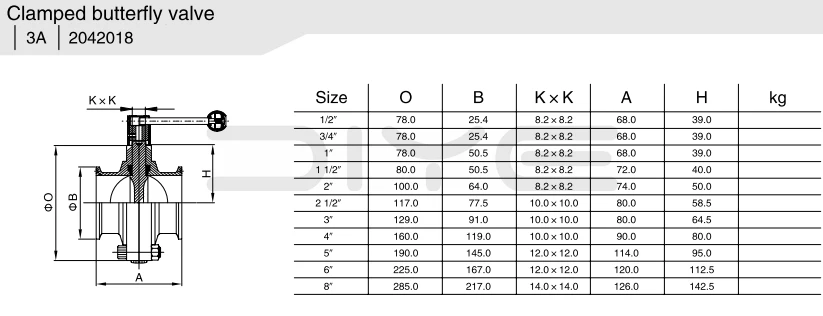

Technical Parameters

FAQ

How to choose between 304 and 316L Sanitary Clamp Butterfly Valve?

Choose 304 for regular working conditions: Suitable for non-strongly corrosive food and daily chemical pipelines such as drinking water, fruit juice, ordinary beverages and daily chemical stock solutions, with higher cost performance.Choose 316L for severe working conditions: Suitable for pharmaceutical preparations, biopharmaceuticals, dairy products, and fluid pipelines in contact with weak acids, weak alkalis or chloride ions. Its ultra-low carbon composition prevents intergranular corrosion, with better sanitary grade and corrosion resistance.

What are the sealing materials of sanitary butterfly valves and how to match them with media?

There are 3 mainstream food-grade sealing materials, matched with media and temperatures as follows:

● EPDM (Ethylene Propylene Diene Monomer): Temperature resistance -40℃~150℃, acid and alkali resistant, water resistant. Suitable for pipelines of conventional hot and cold food, beverages and pure water, the most commonly used type.

● Silicone: Temperature resistance -60℃~200℃, high temperature sterilization resistant. Suitable for pharmaceutical and aseptic food pipelines requiring SIP sterilization at above 121℃.

● FKM/Viton: Temperature resistance -20℃~200℃, oil resistant, strong acid and alkali resistant. Suitable for special pipelines in contact with oil, high-acid and high-alkali food media.
