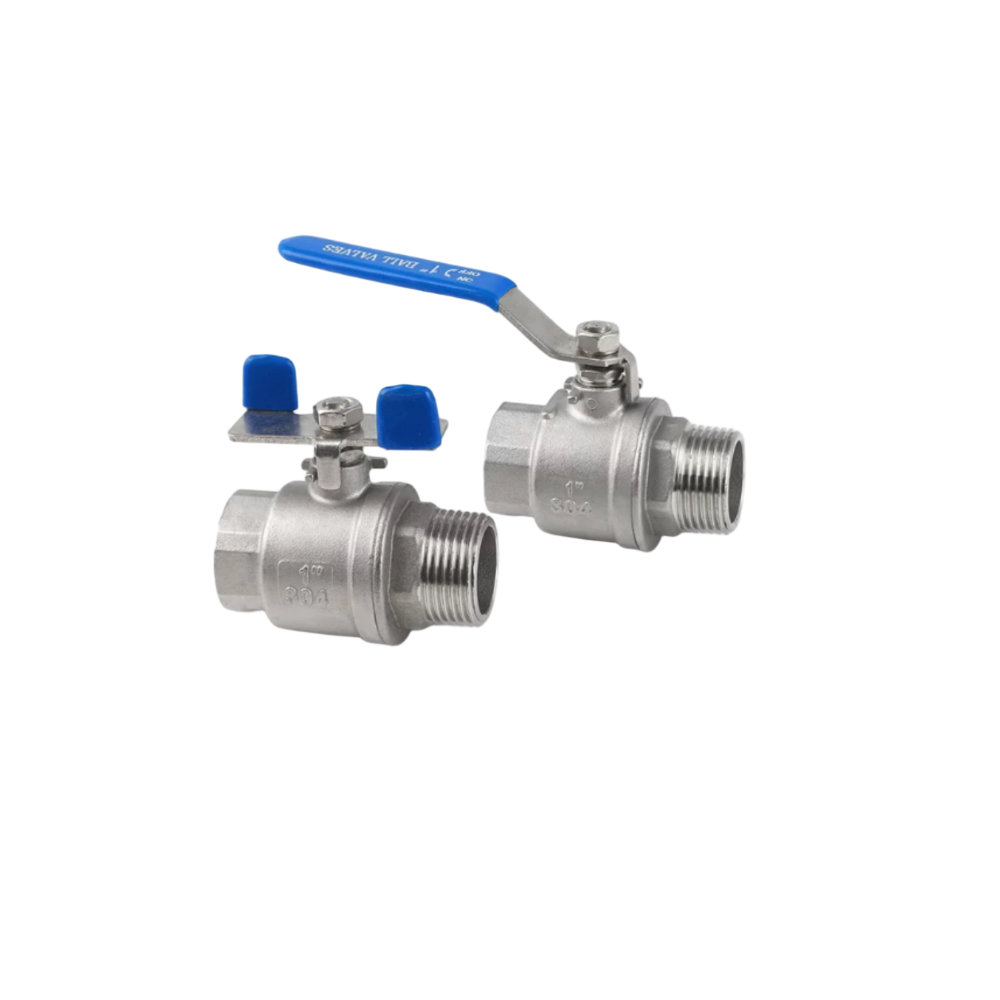

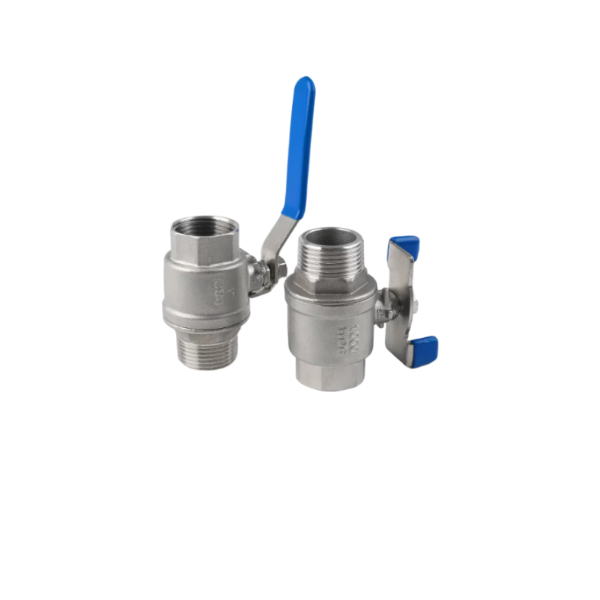

Two-piece Male Female Thread Ball Valve

Product Overview

This Two-piece Male Female Thread Ball Valve adopts forged two-piece split construction, equipped with male and female threaded ends on both sides. No welding or flanges required, enabling fast on-site installation for small bore pipelines. The Two-piece Male Female Thread Ball Valve features solid build and stable pressure resistance, widely used in light industry, HVAC, water supply and drainage pipelines, serving as a popular manual fluid shut-off valve for export projects.

Working Principle

The Two-piece Male Female Thread Ball Valve controls fluid flow by 90° quarter-turn rotation of the internal ball driven by the stem. When the ball bore aligns with pipeline direction, media flows freely. After rotating 90°, the ball surface presses tightly against the seat to block fluid and achieve bubble-tight shutoff. The quarter-turn design enables simple and fast on-off operation.

Material Introduction

The valve body is forged from high-quality SS304 / SS316 stainless steel with CNC machining, uniform wall thickness, good pressure resistance and rust protection. Precisely machined stainless steel ball and stem are wear-resistant and anti-jamming. Standard PTFE seat is temperature resistant and weak-corrosion resistant with low friction coefficient, ensuring long-term reliable sealing performance of the Two-piece Male Female Thread Ball Valve.

Advantages

1.Compact & Lightweight Structure: Two-piece split body, small size and light weight to save piping installation space.

2.Easy & Fast Installation: Male and female threaded ends connect directly to pipes without welding to reduce construction cost.

3.Excellent Corrosion Resistance: Forged stainless steel body resists rust, compatible with water, gas, oil and multiple media.

4.Superior Sealing Performance: Precisely matched ball with PTFE soft seat delivers reliable bubble-tight shutoff.

5.Smooth & Fast Operation: 90° quarter-turn design with low torque, suitable for frequent opening and closing.

6.Wide Application & Cost-effective: Suitable for water supply, HVAC and light industry pipelines. The Two-piece Male Female Thread Ball Valve is a preferred valve for general industrial piping systems.

Technical Parameters

FAQ

Q1: What connection type does the Two-piece Male Female Thread Ball Valve use?

A: Male & female thread connection. Common sizes range from 1/4” to 2”, easy for assembly and disassembly on small-bore pipes.

Q2: How to choose between SS304 and SS316?

A: SS304 for water, gas and normal oil. SS316 is recommended for seawater and slightly corrosive media for better corrosion resistance.

Q3: Can the Two-piece Male Female Thread Ball Valve be fitted with actuators?

A: Yes, it comes with standard mounting pad, which can be fitted with pneumatic or electric actuators for automatic control.

Q4: What is the temperature range of PTFE seat?

A: Standard PTFE seat works from -20℃ to 180℃, meets most general working conditions.

Q5: Can you provide customized service for export orders?

A: Yes, custom sizes, lockable handle, packing and export documents are available.
