2-Piece Threaded High Platform Ball Valve

As a professional supplier and manufacturer, DIYE VALVE has deep expertise in the 2-Piece Threaded High Platform Ball Valve field. Its products adopt a standard high platform (ISO5211) structure, allowing direct installation of pneumatic and electric actuators without additional adapters, enabling rapid automated switching and remote control of pipeline systems.

The valve is suitable for various applications including automated production lines, water treatment, HVAC, chemical, and light industrial piping systems. It is particularly well-suited for automated control scenarios with high requirements for installation efficiency and sealing reliability, balancing stability, durability, and cost advantages to meet the needs of all industrial fluid control scenarios.

Core Process and Material Advantages

1. Precision Casting Process

The 2-Piece Threaded High Platform Ball Valve utilizes mature and precise silica sol investment casting technology, resulting in high dimensional accuracy and excellent surface finish. This allows for integrated molding of complex structures, reducing subsequent machining errors and ensuring the long-term structural stability of the valve body.

2. Superior Material Selection

The 2-Piece Threaded High Platform Ball Valve body is made of SUS304/316L stainless steel, possessing excellent acid and alkali resistance, rust resistance, and oxidation resistance, making it suitable for clean and mildly corrosive media conditions. Combined with a high-performance thickened PTFE sealing ring, the sealing surface fits tightly, achieving a core advantage of bidirectional zero leakage, eliminating media loss and safety hazards.

Structural Design and Installation Ease

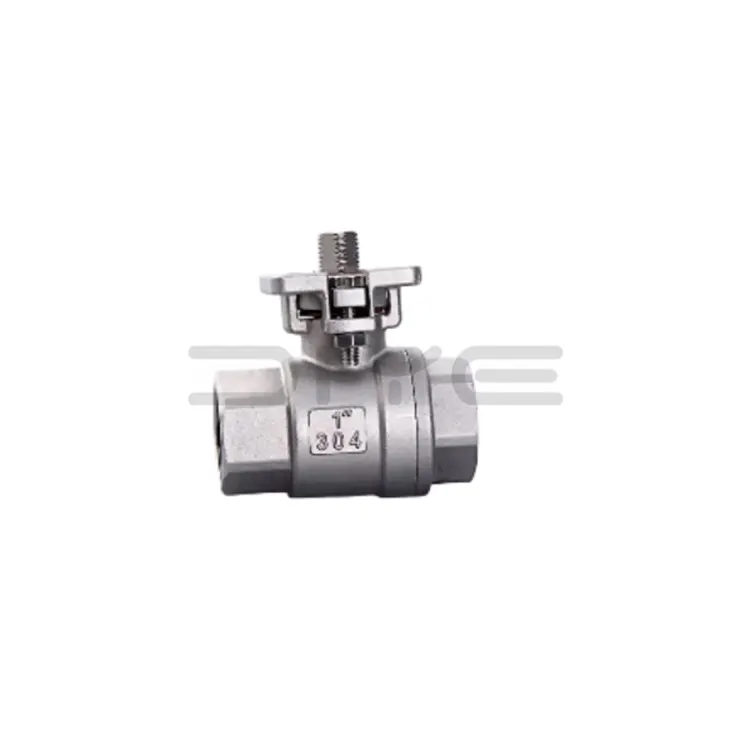

1.Standardized High-Platform Design

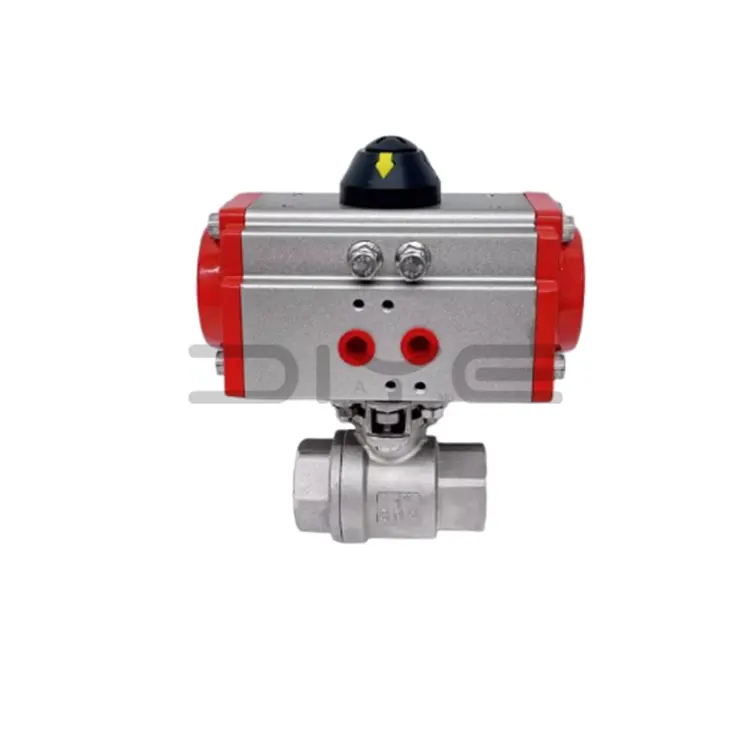

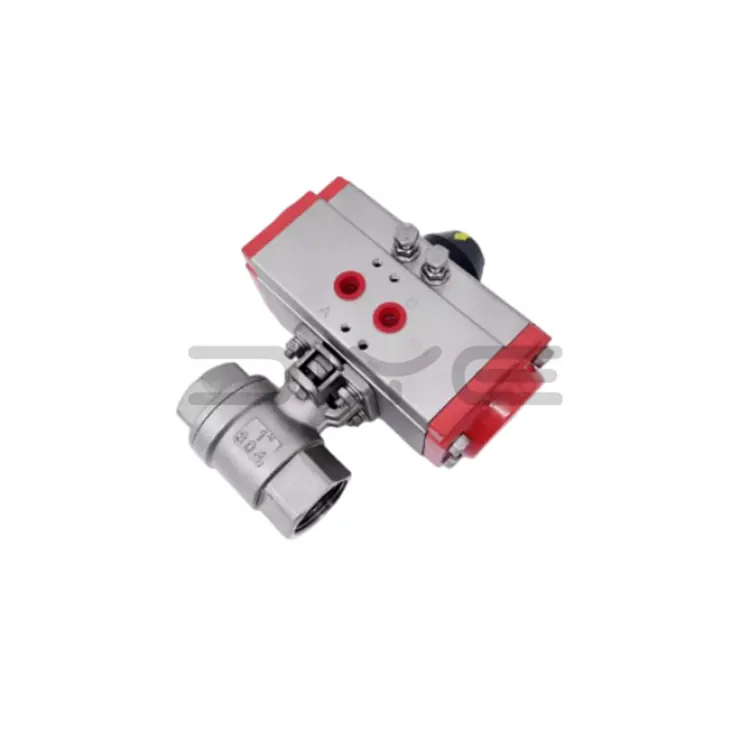

Integrated ISO5211 standard prefabricated high platform eliminates the need for adapters, couplings, and other accessories, allowing for quick connection to various pneumatic/electric actuators. Installation and commissioning are efficient and convenient, avoiding jamming risks and ensuring smooth pipeline operation.

2.Automated Control Adaptability

Supports remote automatic pipeline control, timed on/off switching, and proportional adjustment, precisely matching the control needs of industrial automation pipeline systems. Enables intelligent upgrades to fluid control and adapts to various automated production lines and remote monitoring scenarios.

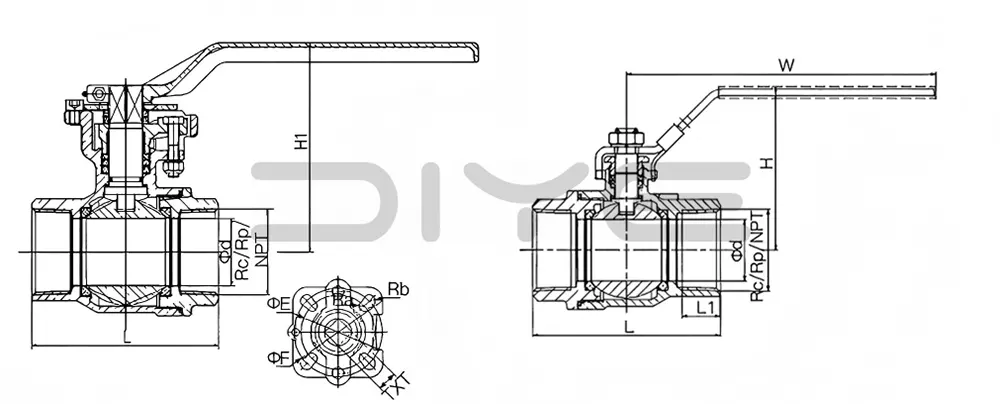

Technical Parameters

Customized Services and Supply Guarantee

1.Full-Dimensional Customization Capabilities

Supports flexible adjustment of all parameters, covering thread standards (NPT, BSP, G, BSPT, etc.), pressure ratings, materials (304/316/316L stainless steel), and customized sealing materials. It also meets requirements for non-standard sizes, special ports, high-platform modifications, exterior printing, and logo customization, providing a one-stop customization service.

2. Supply Chain and Delivery Advantages

As a professional factory, relying on large-scale production and mature supply chain management, we offer highly competitive wholesale prices, helping customers reduce procurement costs and enhance market competitiveness. We support bulk purchasing and long-term cooperation, providing efficient response, accurate quotations, and end-to-end coordination services to ensure smooth delivery of foreign trade orders.

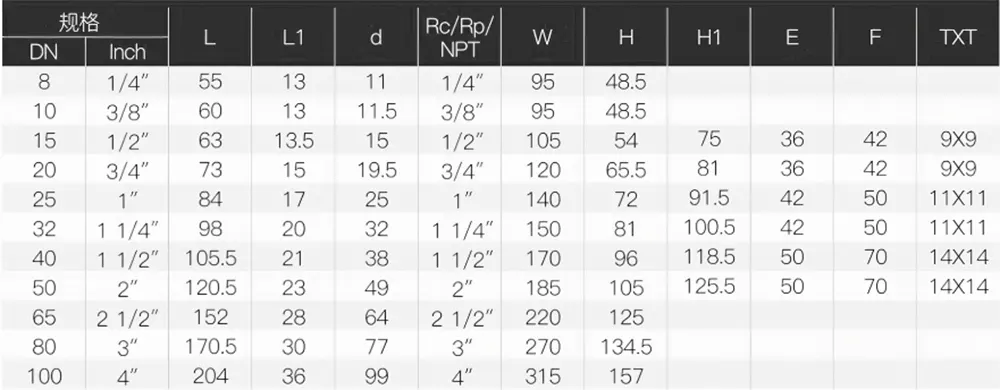

Technical Parameter Overview

Brand and Service Commitment

DIYE VALVE, with professional manufacturing capabilities at its core and leveraging the advantages of China's local industry, provides high-quality valve products and customized services to global customers. Adhering to the principles of "quality first, efficient delivery, and flexible customization," we guarantee customer needs throughout the entire process from product development and manufacturing to after-sales support, helping customers improve project reliability and market competitiveness. We sincerely invite domestic and international partners to discuss cooperation and jointly explore new opportunities in the fluid control field.

FAQ

Q: What are the thread connection standards and pressure ratings of 2-piece threaded ball valves?

A: The standard thread types are NPT and BSPT (male & female), compatible with pipeline interfaces in most countries worldwide. The nominal pressure is normally PN16 and 1000WOG with stable pressure resistance. It is suitable for conventional fluid applications such as water, oil, gas and weakly corrosive media, with a temperature range of -20℃ ~ 180℃.

Q: Can the connections of 2-piece threaded ball valves directly match all pneumatic / electric actuators?

A: The high platform is of standard universal size with qualified machining accuracy. It can directly match conventional pneumatic and electric actuators on the market without additional coupling modification. High concentricity is ensured after installation, avoiding jamming during operation and eccentric wear of seals. It supports fast assembly of on-off type and regulating type actuators.

Q: What technical points should be noted when installing actuators on 2-piece threaded high platform ball valves?

A: Before assembly, ensure the valve is in the half-open position to prevent damage to seals under pressure. Tighten the connecting bolts between the actuator and the platform evenly to guarantee concentricity. The wiring and air circuit connection must strictly follow the actuator manual. During commissioning, manually test the smooth opening and closing of the valve first before activating automatic control.
