3PC Flanged Ball Valve

DIYE VALVE is a professional exporter and manufacturing plant specializing in 3PC flanged ball valves, rooted in China's advanced industrial manufacturing system. We adhere to strict quality control throughout the entire production process, equipped with complete casting, machining, and testing equipment to ensure stable performance and timely delivery for our global customers.

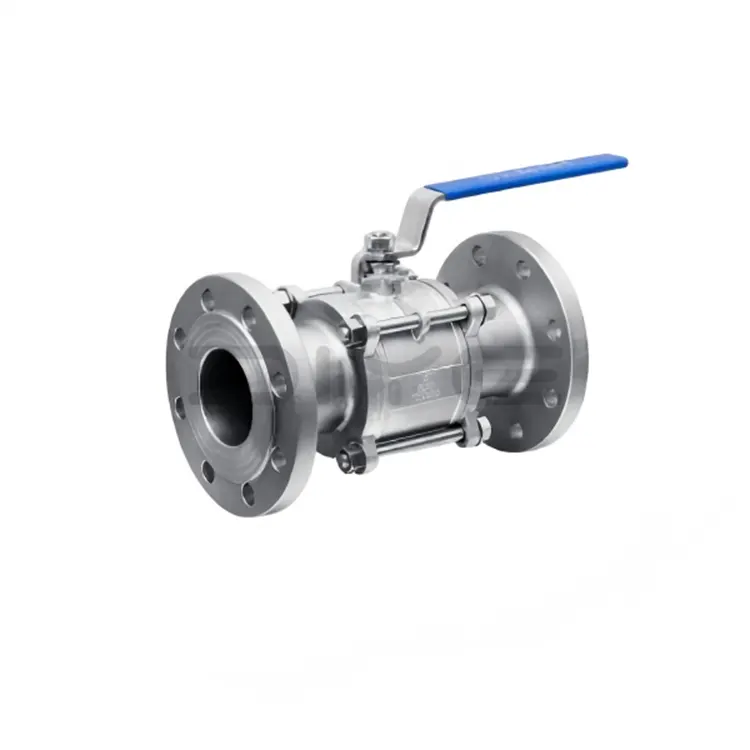

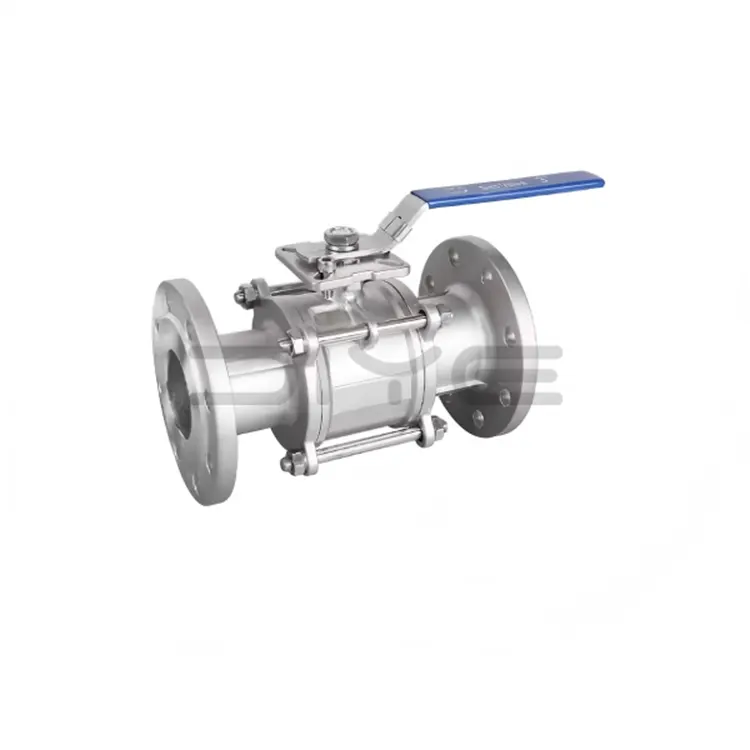

Product Structure and Core Features

The 3PC Flanged Ball Valve features a three-piece split design. The valve body consists of a central main body and left and right flange end caps, made of 304/316/316L stainless steel through forging and precision machining, possessing excellent corrosion resistance, high pressure resistance, and high temperature resistance.

Core Performance Advantages

1. 90° rotation enables rapid opening and closing with low flow resistance.

2. Uses high-performance PTFE gaskets for bidirectional zero-leakage sealing.

3. Allows for online disassembly and maintenance, resulting in a long service life.

4. Compatible with four drive methods: manual, worm gear, pneumatic, and electric.

5. Meets international standards such as GB, ANSI, JIS, and DIN.

Working Principle

1. Opening Process: The 3PC Flanged Ball Valve drive unit rotates the valve stem and ball. When the ball's through-hole aligns with the pipeline, the valve fully opens, allowing fluid to flow smoothly.

2. Closing Process: The valve stem rotates the ball 90°, aligning the ball's through-hole with the pipeline. The solid part of the ball completely blocks the fluid passage, achieving reliable shut-off. At this point, the valve is fully closed.

3. Sealing Mechanism: The high-precision machined ball precisely matches the PTFE sealing ring, ensuring reliable bidirectional sealing under various operating conditions.

Applications

The 3PC Flanged Ball Valve is suitable for various media including water, steam, oil, gas, acids, alkalis, and corrosive fluids. It is widely used in petrochemical, food and beverage, pharmaceutical, water treatment, HVAC, papermaking, and metallurgical industries.

Quality Assurance and Certifications:

1.Authoritative Certifications

Holding authoritative certifications such as ISO 9001, CE, EAC, GOST, and API 6D/607, it directly meets the project access requirements in Europe, America, the CIS, the Middle East, and Southeast Asia.

2.Full-Process Testing

Raw material spectral analysis, 1.5 times rated pressure water/air pressure test, sealing performance testing, ≥100,000 opening and closing life test, ensuring 100% product qualification before shipment.

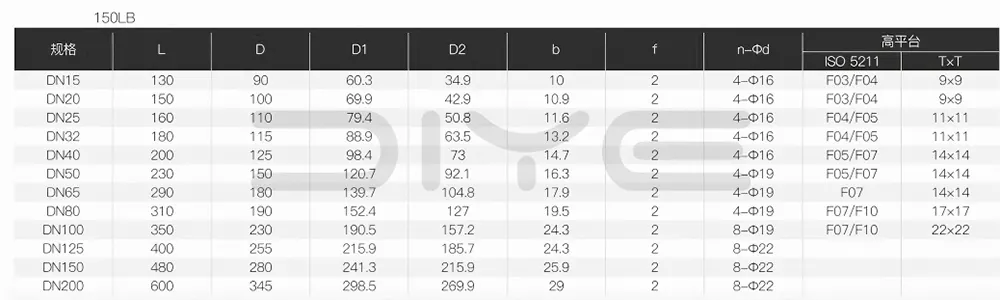

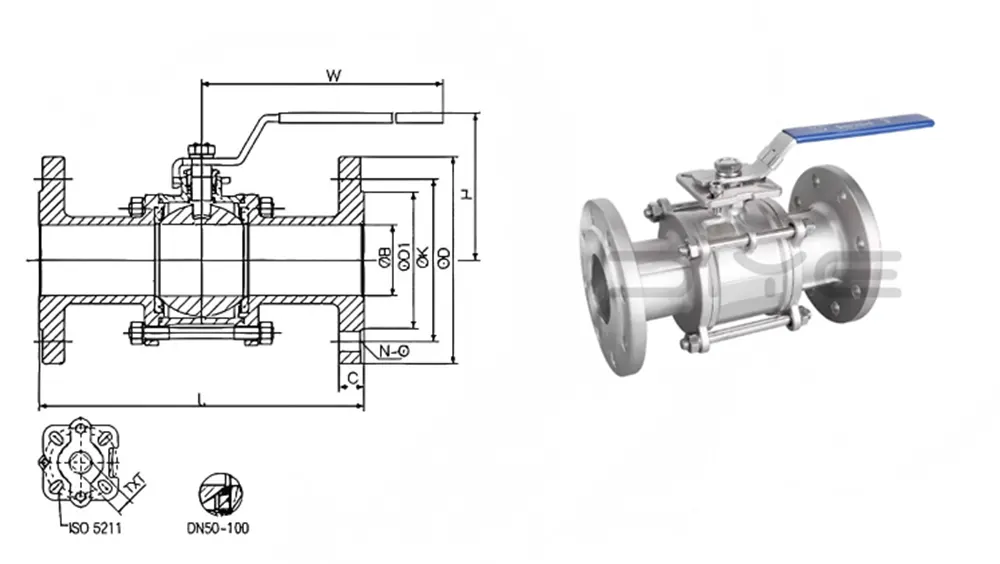

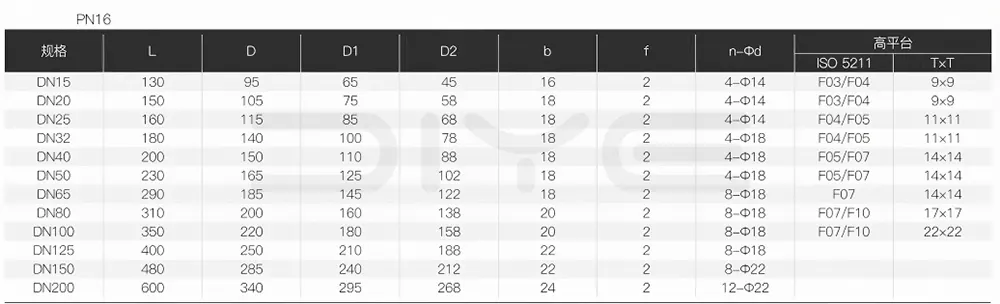

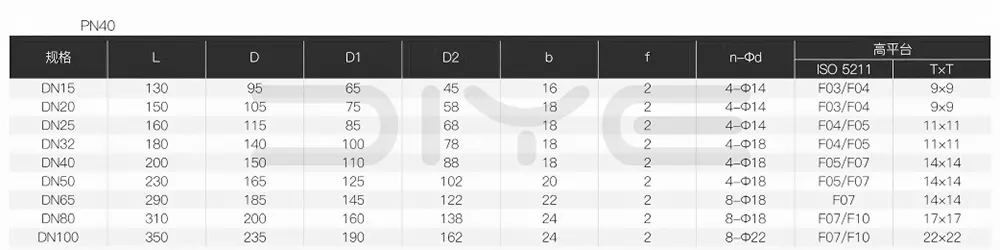

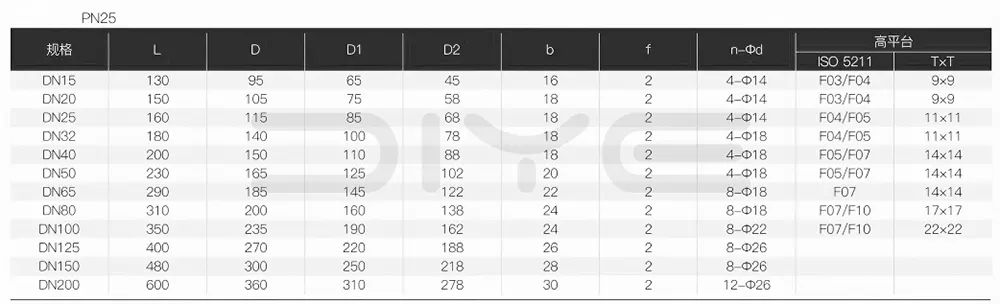

Technical Parameters

Supporting and Customization Services

1. One-Stop Supply: Providing a complete set of valves, actuators, flanges, gaskets, and bolts, simplifying overseas procurement and installation processes.

2. Flexible Customization: We can adjust thread standards (NPT/BSP/G/BSPT, etc.), pressure ratings, material selection, seals, non-standard sizes, special interfaces, platform modifications, appearance printing, logo customization, etc., to meet various project needs in one stop.

FAQS

Q: How to select the sealing material for 3PC flanged ball valves?

A: 1. PTFE (F4): General-purpose soft seal, operating temperature -20℃ to 200℃, featuring excellent sealing performance and corrosion resistance.

2. Reinforced PTFE: Suitable for higher temperature applications (≤250℃).

3. Metal Seal (Hard Seal): Designed for high temperature (≤600℃), high pressure and particle-containing media.

Q: What is the replacement cycle of seals for 3PC flanged ball valves?

A: 1. Soft Seal (PTFE): 1-2 years under favorable working conditions; shortened to 3-6 months under corrosive or high-temperature working conditions.

2. Metal Seal: 3-5 years, subject to actual wear conditions.
