Stainless Steel 3pc Flange Ball Valve

Product Introduction

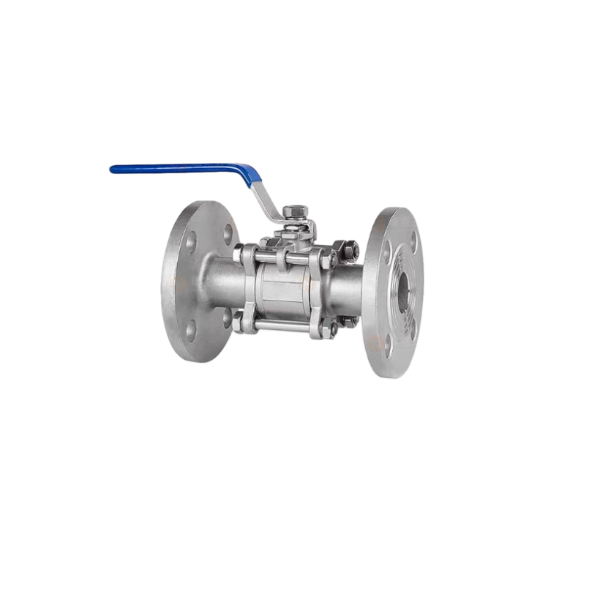

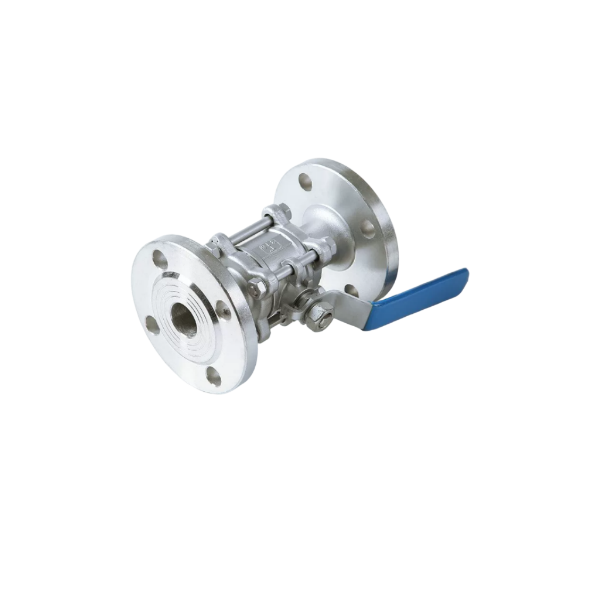

3-piece stainless steel flanged ball valve features forged SS304/SS316L body with CNC machining. Flanged ends enable easy assembly with industrial pipelines. Equipped with anti-blowout stem and PTFE seat sealing, this full port valve minimizes medium pressure loss. It adopts ISO5211 standard mounting pad, available for manual lever operation, or fitted with pneumatic & electric actuators for remote automatic control. Widely exported for fluid shut-off in chemical, water treatment, oil & gas and food processing piping systems.

Working Principle

The 3-piece flanged ball valve controls fluid flow via 90° rotation of the ball around the stem axis. A through bore is machined on the ball. When the bore aligns with pipeline direction, fluid passes freely. After rotating 90 degrees, the solid side of the ball presses against the seat to block flow. The split three-piece body encloses the ball and sealing parts. The stem drives ball rotation. Tight contact between ball and seat creates bubble-tight sealing to open or shut off pipeline media.

Advantages

1.Split three-piece construction allows inline inspection and seal replacement without removing the whole valve from pipeline, cutting maintenance cost greatly.

2.Flanged connection offers high pressure rating and stable pipe joint; the valve stays fixed during pipeline disassembly.

3.Forged stainless steel body delivers outstanding corrosion resistance and extended service life for corrosive media.

4.Full port design reduces flow resistance and prevents sediment accumulation.

5.Reliable sealing performance with low operating torque; compatible with automatic actuators for remote control.

6.Modular structure ensures good interchangeability of spare parts, meeting certification requirements for overseas export projects.

Technical Parameters

FAQs

Q1: What material options are available for this 3-piece flanged ball valve?

A: Standard body material is SS304 and SS316L stainless steel. Ball and stem are also stainless steel. Seat material is PTFE as standard; PFA is optional for harsh corrosive working conditions.

Q2: What pressure and temperature range can the valve work under?

A: Working pressure: PN16 / PN25 / Class150 / Class300 optional. The PTFE seat allows working temperature from -20℃ up to 180℃. The actual range depends on media and seal selection.

Q3: Can the valve be fitted with pneumatic or electric actuators?

A: Yes. It is built with ISO5211 standard mounting platform. Manual handle can be replaced with pneumatic actuator (single acting /double acting) or electric actuator for remote automatic control.
