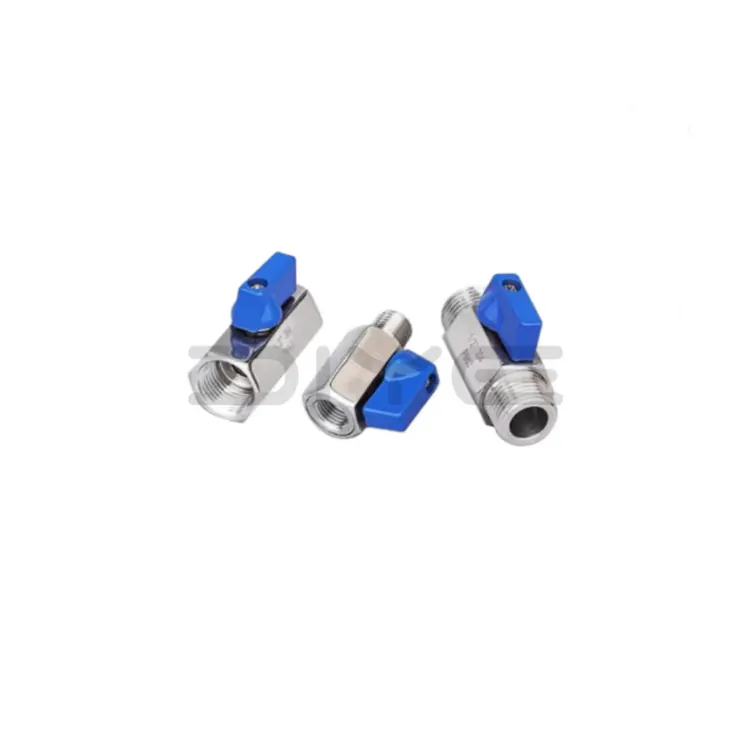

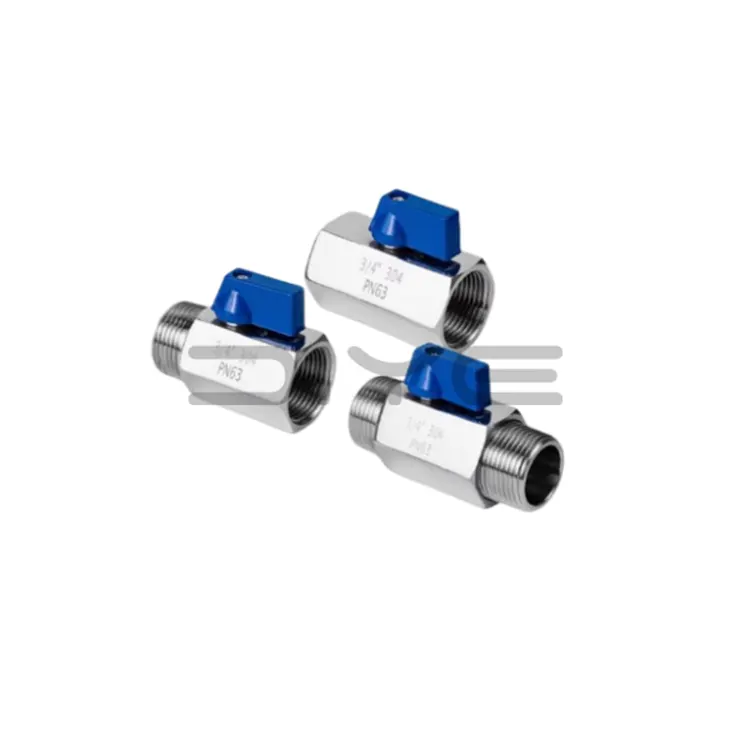

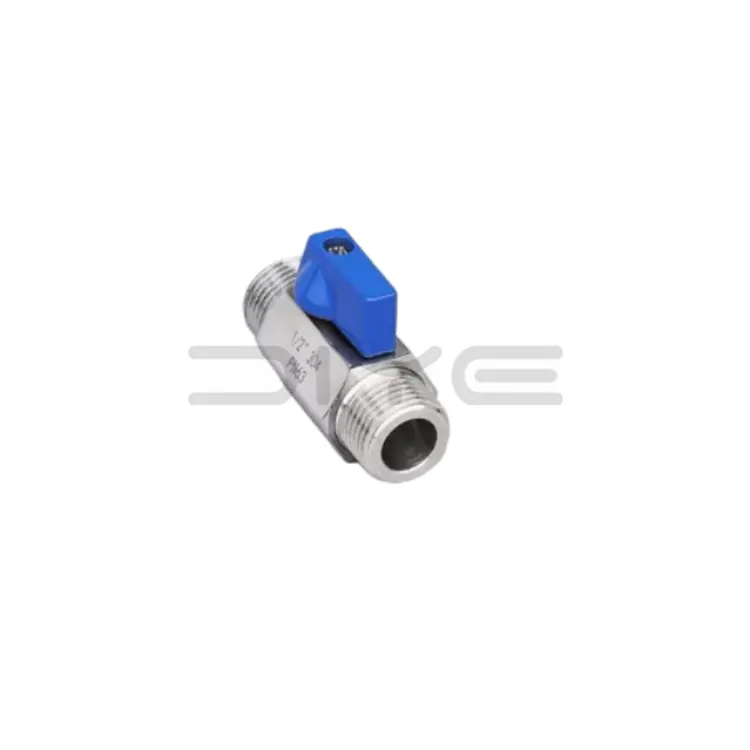

Stainless Steel Mini Ball Valves

DIYE VALVE is a professional exporter and manufacturer of stainless steel mini ball valves in China, with many years of experience in product research and development, production, and global export. Our factory in China is equipped with advanced production equipment and a rigorous quality inspection system. From raw material selection to finished product delivery, every step is strictly controlled to ensure product stability and reliability. As a trusted supplier in the global valve industry, we have won the recognition of global customers with high-quality products, professional technical support, and attentive after-sales service.

Core Product Advantages

1. Superior Materials

Stainless steel mini ball valves are forged from high-quality SUS304/SUS316 stainless steel, offering high strength, excellent corrosion resistance, a burr-free surface, and a smooth inner wall, ensuring clean and uncontaminated media. Suitable for various scenarios including drinking water, gas, oil, and mildly corrosive media, fully demonstrating the product's professional design.

2. High-Performance Sealing System

Utilizing PTFE (polytetrafluoroethylene) sealing material, these valves offer stable sealing performance, a low coefficient of friction, and excellent chemical inertness. They can withstand a wide temperature range of -200℃ to 260℃, resisting most corrosive media, ensuring leak-free operation, convenient operation, and a long service life, showcasing the product's authoritative performance.

3. User-Friendly Structural Design

Stainless steel mini ball valves feature a compact structure, requiring little installation space, making them suitable for small automated equipment, household piping, and other installation-constrained scenarios. Operation is simple, requiring no professional training. Multiple connection methods are available, including internal threads, external threads, quick-connect fittings, and fast couplings, meeting diverse pipeline installation needs.

4. Stable and Reliable Performance

Withstands pressure up to 63 kgf/cm² (1000 PSI), adaptable to various pressure conditions, and operates without failure over long periods. Undergoes rigorous pressure and durability testing before leaving the factory, meeting the practical application needs of various industries and building customer trust.

Product Specifications and Application Scenarios

1. Core Technical Parameters

- Material: SUS304/SUS316 stainless steel (316L customizable)

- Sealing Material: PTFE (Polytetrafluoroethylene)

- Pressure Resistance: Up to 63kgf/cm² (1000PSI)

- Connection Methods: Internal thread, external thread, quick-connect, fast coupling

- Surface Treatment: Burr-free, smooth inner wall, clean and contamination-free

- Applicable Media: Drinking water, gas, oil, mildly corrosive media

2. Wide Range of Applications

With its compact structure, stable performance, and wide adaptability, stainless steel mini ball valves are widely used in small automated equipment, household piping, pneumatic systems, environmental protection equipment, and various light industrial piping systems, demonstrating practical value and wide applicability.

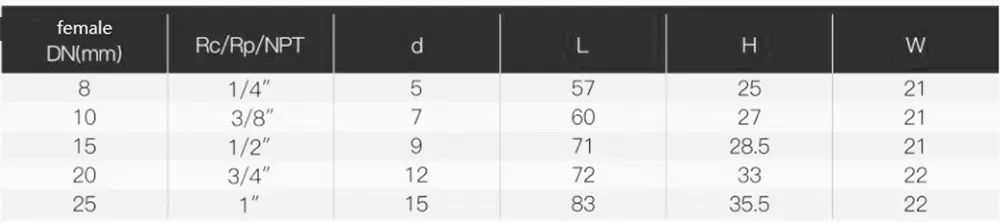

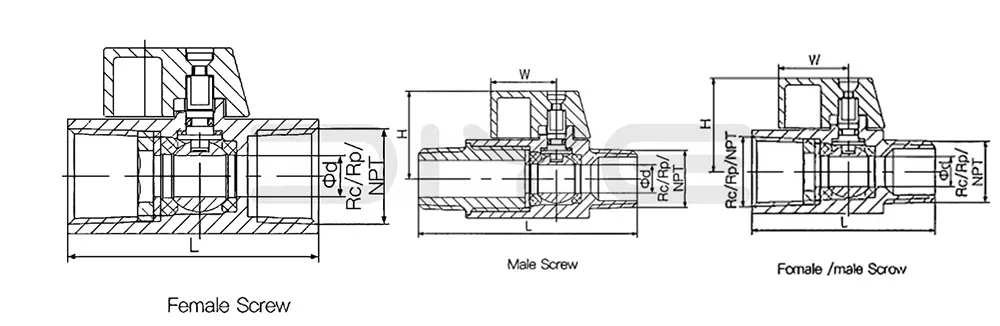

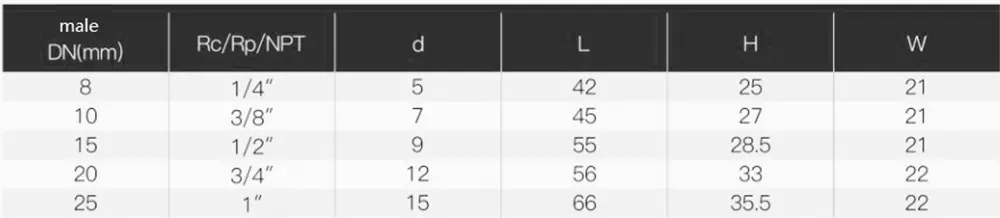

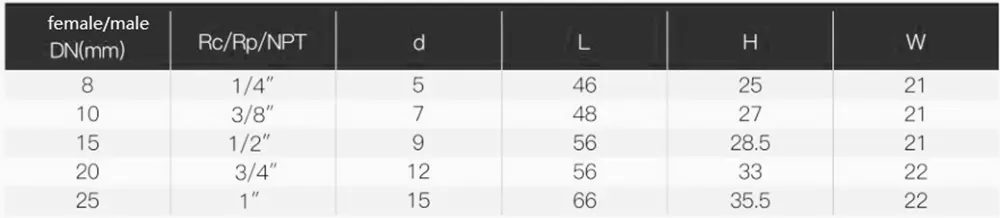

Technical Specifications

Flexible Customization Services

As a professional manufacturer and supplier, we offer a full range of stainless steel mini ball valves with flexible customization services, providing one-stop service to meet various customer needs. This includes thread standards (NPT, BSP, G, BSPT, etc.), pressure ratings, material selection, sealing materials, as well as non-standard sizes, special interfaces, platform modifications, exterior printing, and logo customization. Our professional technical team provides personalized solutions.

Quality Commitment and Service Guarantee

DIYE VALVE prioritizes product quality. Our factory implements strict quality control standards, with professional personnel monitoring each stage to ensure products meet global industry standards. As a reliable supplier in China, we provide pre-sales consultation, in-sales technical guidance, and after-sales maintenance services. We build long-term partnerships based on trust and professionalism, committed to providing high-quality, cost-effective stainless steel mini ball valves to customers worldwide.
